AMC1301: equation for single ended output

muhammad lutfi

Part Number: AMC1301

how to get equation 1?

if VCM = GND
VOUT = (R4/(R3+R4))+((R1+R2)/R2)*VOUTP-(R1/R2)VOUTN
if VCM, not GND, why become equation 1? not VOUT = (R4/(R3+R4))+((R1+R2)/R2)*VOUTP-(R1/R2)VOUTN+VCM

over 5 years ago

0 Alexander Smith over 5 years ago

TI__Mastermind 47595 points

Hi Muhammad,

Thanks for your post!

Since R1 = R4 and R2 = R3 the equation simplifies to what is shown in the technical document.

0 kai klaas69 over 5 years ago

Guru 140200 points

Hi Muhammad,

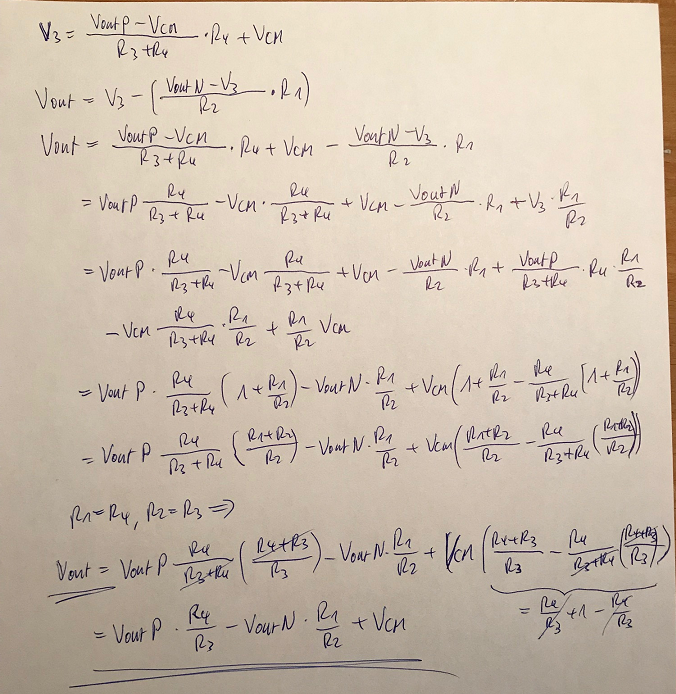

I get this result:

Which is, of course:

Vout = R1 / R2 x (VoutP - VoutN) + Vcm

"V3" is the voltage at pin 3 of U2.

Kai
