Diagnostic feature for AFE4490 / AFE4400

Praveen Aroul

Mastermind 49176 points

Other Parts Discussed in Thread: AFE4490, AFE4400

Shorting TP17 to TP25 (i.e., shorting TXN to GND) on the AFE4490SPO2EVM / AFE4400SPO2EVM produce a fixed freq sound, the blue indicator light becomes dark on the EVM and PC GUI crashes.
Shorting TP23 to TP25 (i.e., shorting TXP to GND) also has the same effect.

over 10 years ago

0 Praveen Aroul over 10 years ago

TI__Mastermind 49176 points

The AFE4400 / AFE4490 evaluation module is normally powered from the USB port.

Based on the USB specs, there is a limitation of 100 mA on the current draw from the USB port.

Shorting TP17 and TP25 (i.e.,shorting TXN to GND) draws around 320mA.

To verify the diagnostic feature under these conditions:

Install a 2 pin header on J5 (located right below the mini USB port).
Install a zero Ohm resistor (0803) on R114 (located on the bottom side of the EVM near J5)
Provide +5V on J5 Pin #1 from a power supply
Provide GND to J5 Pin #2
Now connect the USB cable to the USB port and start the PC GUI.
Short TP17 to TP25 and test the Diagnostic feature on the PC GUI.

Doing the above, the battery management device (BQ24032) on the EVM powers the EVM board from the external +5V. Assuming the external supply to provide the necessary current, creating this fault condition (i.e., shorting TXN or TXP to GND) will not cause the USB + GUI to crash and the diagnostic feature can be tested using the GUI.

0 Praveen Aroul over 10 years ago in reply to Praveen Aroul

TI__Mastermind 49176 points

How long does the diagnostics mode take to complete?

Can the AFE4490/AFE4400 Tx and Rx signal chains be used during the diagnostic mode?

0 Praveen Aroul over 10 years ago in reply to Praveen Aroul

TI__Mastermind 49176 points

For AFE4490, the diagnostic mode takes 8 ms.

For AFE4400, the diagnostic mode takes 16ms.

No, during the diagnostic mode, the AFE Tx and Rx signal chains cannot be used.

The device enters the diagnostic mode when bit2 of CONTROL0 register is set to '1'.

While the device is in diagnostic mode, if the bit2 of CONTROL0 register is set to '0', then the diagnostics is disabled.

While the device is in diagnostic mode, if the bit2 of CONTROL0 register is set to '1' again, then it will not do anything.

When the diagnostic is complete, the bit2 of CONTROL0 register is automatically reset.

Once the diagnostic mode is complete, the bit0 of CONTROL0 register must be set to '1' to enable SPI read.

And the status of the Diagnostics can be read from DIAG register (Addr: 0x30)

Refer to the AFE4490 / AFE4400 datasheet for more details about diagnostics.

0 Ali Bakhtiyari over 10 years ago in reply to Praveen Aroul

Prodigy 50 points

A question about diagnostic mode

Hello,

I use the AFE4400 EVB and also my board with has the an AFE4400.

EVB works perfectly in diagnostic mode.

In my board, the firmware only can recognize " the RxINP or RxINMcable shorted to GND" or " the TxOUTP or TxOUTMcable shorted to GND".

it can not recognize the PD OPEN or LED OPN.

Please kindly let me know what should I do.

Regards,

0 Amy Schnoor over 10 years ago in reply to Ali Bakhtiyari

TI__Mastermind 18275 points

Ali,

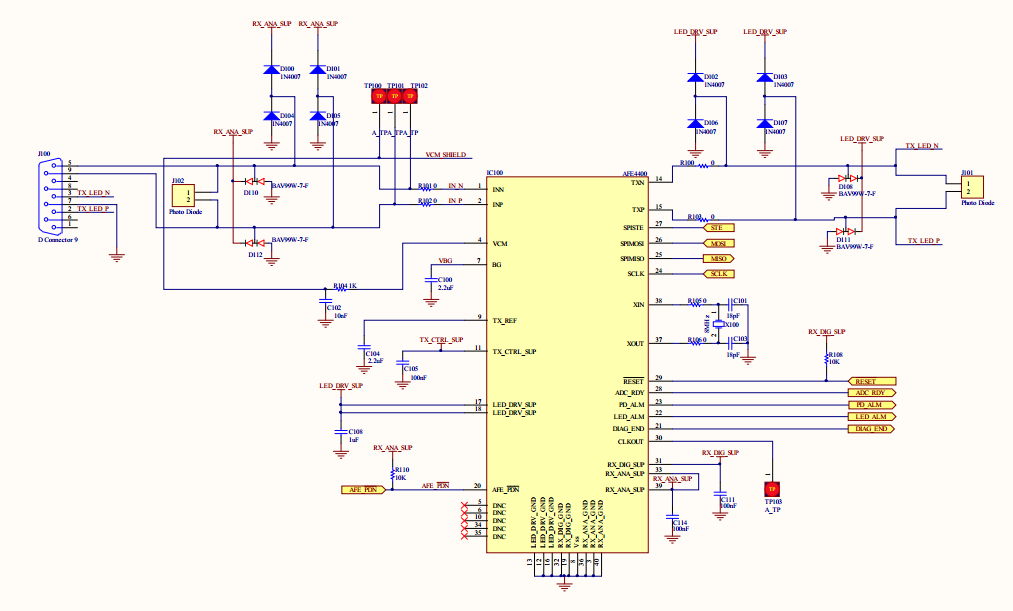

Would it be possible for you to send your schematic of your board?
