DRV10863 PWM drive question

Pao Wu

Intellectual 920 points

Other Parts Discussed in Thread: DRV10863, DRV10866

Does the PWM drive of TI (DRV10863) satisfy the following mask condition? How to filter or bypass spikes?

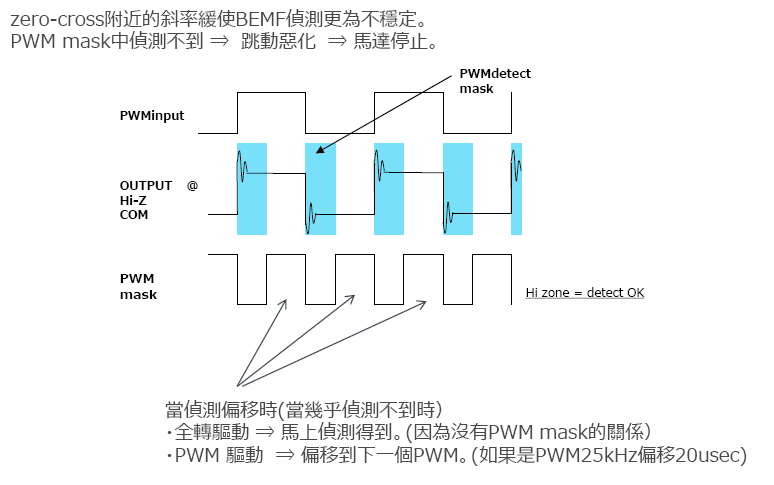

Following picture, PWM Frequency is 25kHz, duty%20~80%！

over 7 years ago

0 Rick Duncan over 7 years ago

TI__Guru** 114905 points

Hi Pao,

Our experts have been notified and should reply soon.

0 Krushal over 7 years ago in reply to Rick Duncan

TI__Expert 3010 points

Hi Pao,

There is no builtin filter in DRV10863, you can connect simple RC filter externally to filter out spikes.

Do you face any problem driving device with spikes on PWM signal ?

Regards,

Krushal

0 Pao Wu over 7 years ago in reply to Krushal

Intellectual 920 points

Hi Krushal,
Sorry, My customer mistakenly think TI have same bug.
My competitor is Rohm. The sensor mode is voltage mark.
If it have shift or spike, It will shut down or jitter.

DRV10863 is current sensor control, right??

0 Krushal over 7 years ago in reply to Pao Wu

TI__Expert 3010 points

Hi Pao

Can you please elaborate your questions. Sorry I have difficulty in understanding your comments.

Regards,
Krushal

0 Pao Wu over 7 years ago in reply to Krushal

Intellectual 920 points

Hi Krushal,
Thank you for your support.
Customer want to know whether DRV10866 could replace DRV10863 directly. Could you help to advise this information?
I can't find DRV10863 datasheet from TI web.

0 Krushal over 7 years ago in reply to Pao Wu

TI__Expert 3010 points

Hi Pao,

Yes, DRV10866 can replace DRV10863 directly, it is pin to pin compatible and it has same package.

Regards,
Krushal
