Problem about using Jlink on Beaglebone Black board (am3358)

YangYu

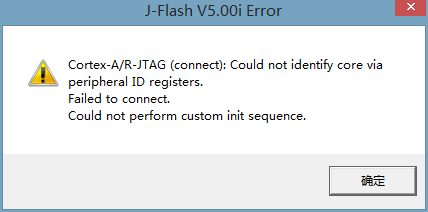

I'm trying to use the Jlink emulator to emulate the Beaglebone Black. But I have some trouble.When I connected the Beaglebone Black board then tried to connect the target via J-flash, it alarms me that

Following is my J-flash setting:

And I noticed that J-Link commander has following output:

What's the problem, could anybody helps me out ?

over 8 years ago

0 Yordan Kovachev over 8 years ago

TI__Guru**** 161600 points

Hi Yang Yu,

Have you tried with CCS: http://processors.wiki.ti.com/index.php/J-Link_Emulator_Support ?

Best Regards,
Yordan

0 YangYu over 8 years ago in reply to Yordan Kovachev

Intellectual 330 points

Hi Yordan Kovachev,
Yes, I have tried with CCS, it didn't work and CCS told me the same thing.
I thought maybe the reason is that I use CCS v6.1.0 and windows 8.
But I thought it quite strange that J-flash cannot identify the core. I don't know what's the problem.

0 Steve Kipisz over 8 years ago in reply to YangYu

TI__Genius 15510 points

How are you connecting the Beaglebone Black? Did you solder the header on the bottom of the board? Only Beaglebone White uses the FTDI JTAG over USB.

Steve K.

0 YangYu over 8 years ago in reply to Steve Kipisz

Intellectual 330 points

Hi Steve K,

Yes, I've soldered the header on the bottom of the board and the pin connection map is as following.

20-pin CTI JTAG	20-pin ARM JTAG
1	7
3	5
5	1 & 2
7	13
9	11
11	9
15	15
2	3
4	4

I'm not sure whether it is okay.
