AM335x EVM Booting

Hi,

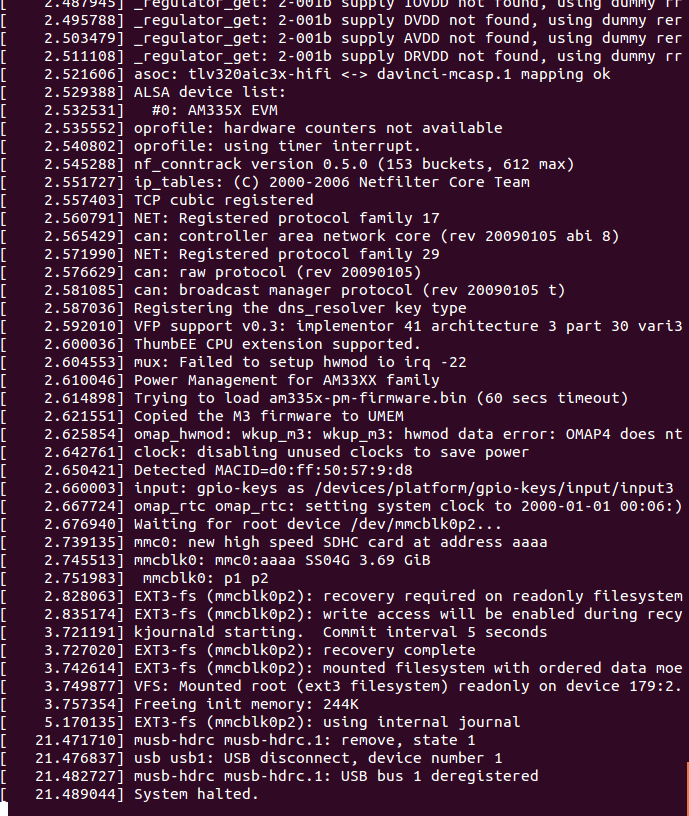

Check your SD card. You will find images and instructions for creating the SD card on the Linux SDK download page: software-dl.ti.com/.../index_FDS.html

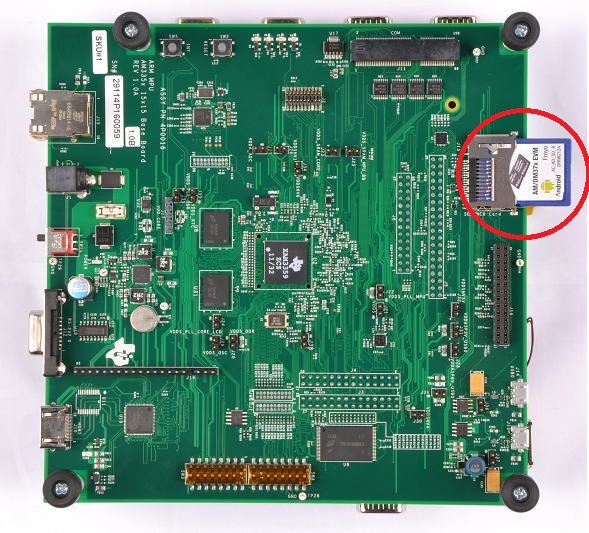

OK, that means that the processor is alive and trying to find a device to boot from. There are several possibilities: the SD card might be unreadable or wrongly prepared, the SD card slot might be broken, or you may be using the wrong SD card slot. It must be this one:

The baseboard SD card slot is the one shown on the picture above. View is from the bottom. You can boot only from this slot. The daughterboard is the one on top of the baseboard. Check this wiki for hardware information on the AM335X GP EVM: processors.wiki.ti.com/.../AM335x_General_Purpose_EVM_HW_User_Guide

SW4 must be placed in the same position as shown here: processors.wiki.ti.com/.../AM335x_U-Boot_User's_Guide
SW3 must be placed as shown here: processors.wiki.ti.com/.../AM335x_U-Boot_User's_Guide

Hi,

For the bellow question:

NAVEEN RUNJALA said:

Uboot and MLO ,uImage and how to create those in SD card

MLO -> first bootloader after the ROM Code

u-boot -> bootloader for further board bringup & prepare it for linux kernel

uImage or zImage -> linux kernel image.

If you use ti sdk 2.0 from this repository: software-dl.ti.com/.../index_FDS.html

You can build the images as shown bellow:
cd ~/ti-processor-sdk-linux-am335x-evm-02.00.00.00

export ARCH=arm

export PATH=${HOME}/ti-processor-sdk-linux-am335x-evm-02.00.00.00/linux-devkit/sysroots/x86_64-arago-linux/usr/bin:$PATH

export CROSS_COMPILE=arm-linux-gnueabihf-

To build MLO & u-boot, execute:

cd ~/ti-processor-sdk-linux-am335x-evm-02.00.00.00/board-support/u-boot-2015.07+gitAUTOINC+d49aa5effa

make am335x_evm_config

make -j4

To build zImage, execute:

cd ~/ti-processor-sdk-linux-am335x-evm-02.00.00.00/board-support/linux-4.1.6+gitAUTOINC+52c4aa7cdb-g52c4aa7

make tisdk_am335x-evm_defconfig

make -j4

More information is available here: http://processors.wiki.ti.com/index.php/Processor_SDK_Linux_Software_Developer%E2%80%99s_Guide

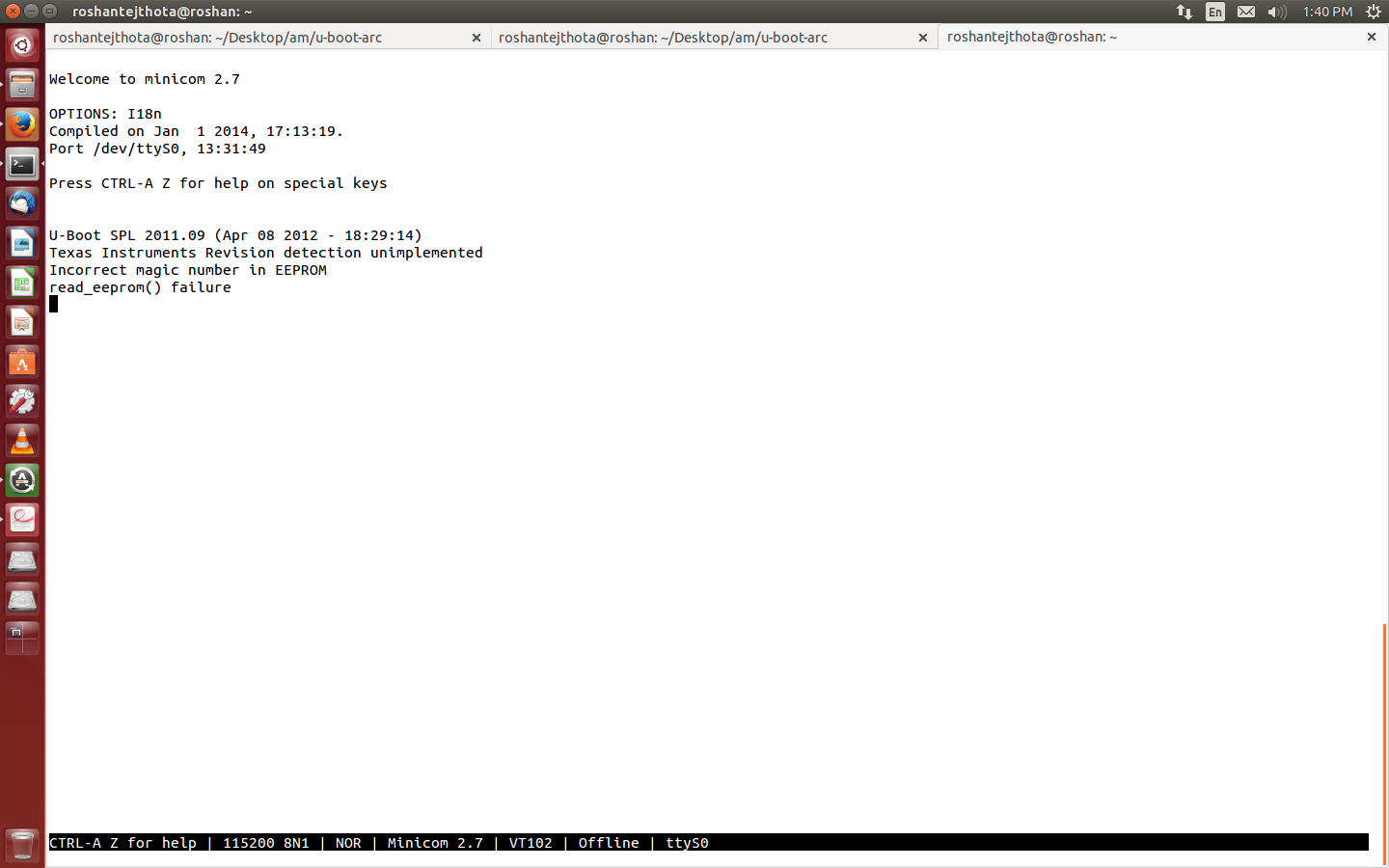

From this I can see that initial bootloader is starting (U-boot SPL). However the version is totally outdated. You need to prepare a new card. Follow the instructions on the SDK download page: software-dl.ti.com/.../index_FDS.html under "AM335x Linux SDK SD Card Creation". Download the zip package and create a fresh SD card.
