Hello,
I use beaglebone black and audio cape with TLV320AIC3104 audio codec & LM4871 amp.
but, i make dts file for audio, but there is no sound from the amp when "aplay sound.wav".
Please help me and check my dts file.
Below is my dts file:
/*
* Copyright (C) 2012 Texas Instruments Incorporated - http://www.ti.com/
*
* This program is free software; you can redistribute it and/or modify
* it under the terms of the GNU General Public License version 2 as
* published by the Free Software Foundation.
*/
/dts-v1/;
#include "am33xx.dtsi"
#include "am335x-bone-common.dtsi"
#include <dt-bindings/display/tda998x.h>
/ {
model = "TI AM335x BeagleBone Black";
compatible = "ti,am335x-bone-black", "ti,am335x-bone", "ti,am33xx";
sound {
compatible = "ti,da830-evm-audio";
ti,model = "DA830 EVM";
ti,audio-codec = <&tlv320aic3104>;
ti,mcasp-controller = <&mcasp0>;
ti,codec-clock-rate = <12000000>;
ti,audio-routing =
"Headphone Jack", "HPLOUT",
"Headphone Jack", "HPROUT";
};
};
&ldo3_reg {
regulator-min-microvolt = <1800000>;
regulator-max-microvolt = <1800000>;
regulator-always-on;
};
&mmc1 {
vmmc-supply = <&vmmcsd_fixed>;
};
&mmc2 {
vmmc-supply = <&vmmcsd_fixed>;
pinctrl-names = "default";
pinctrl-0 = <&emmc_pins>;
bus-width = <8>;
status = "okay";
};
&cpu0_opp_table {
/*
* All PG 2.0 silicon may not support 1GHz but some of the early
* BeagleBone Blacks have PG 2.0 silicon which is guaranteed
* to support 1GHz OPP so enable it for PG 2.0 on this board.
*/
oppnitro@1000000000 {
opp-supported-hw = <0x06 0x0100>;
};
};
&am33xx_pinmux {
uart1_pins: pinmux_uart1_pins {
pinctrl-single,pins = <
0x180 (PIN_INPUT_PULLUP | MUX_MODE0) /* uart1_rxd.uart1_rxd */
0x184 (PIN_OUTPUT_PULLDOWN | MUX_MODE0) /* uart1_txd.uart1_txd */
>;
};
i2c2_pins: pinmux_i2c2_pins {
pinctrl-single,pins = <
0x158 0x72 /* i2c2_sda.i2c2_sda */
0x15C 0x72 /* i2c2_scl.i2c2_scl */
>;
};
mcasp0_pins: mcasp0_pins {
pinctrl-single,pins = <
0x1ac 0x00 /* mcasp0_ahclkx, OUTPUT | MODE0 */
0x19c 0x02 /* mcasp0_axr2, OUTPUT | MODE2 */
0x194 0x20 /* mcasp0_fsx, INPUT | MODE0 */
0x198 0x20 /* mcasp0_axr0, INTPUT | MODE0 */
0x190 0x20 /* mcasp0_aclkx, INPUT | MODE0 */
>;
};
};
&uart1 {
pinctrl-names = "default";
pinctrl-0 = <&uart1_pins>;
status = "okay";
};
&rtc {
system-power-controller;
};
&mcasp0 {
#sound-dai-cells = <0>;
pinctrl-names = "default";
pinctrl-0 = <&mcasp0_pins>;
status = "okay";
op-mode = <0>; /* MCASP_IIS_MODE */
tdm-slots = <2>;
num-serializer = <16>;
serial-dir = < /* 0: INACTIVE, 1: TX, 2: RX */
1 0 2 0
0 0 0 0
0 0 0 0
0 0 0 0
>;
tx-num-evt = <1>;
rx-num-evt = <1>;
};
&sgx {
status = "okay";
};
&i2c1 {
pinctrl-names = "default";
pinctrl-0 = <&i2c2_pins>;
status = "okay";
clock-frequency = <400000>;
#address-cells = <1>;
#size-cells = <0>;
tlv320aic3104: tlv320aic3104@1b {
#sound-dai-cells = <0>;
compatible = "ti,tlv320aic3104";
reg = <0x1b>;
status = "okay";
};
};

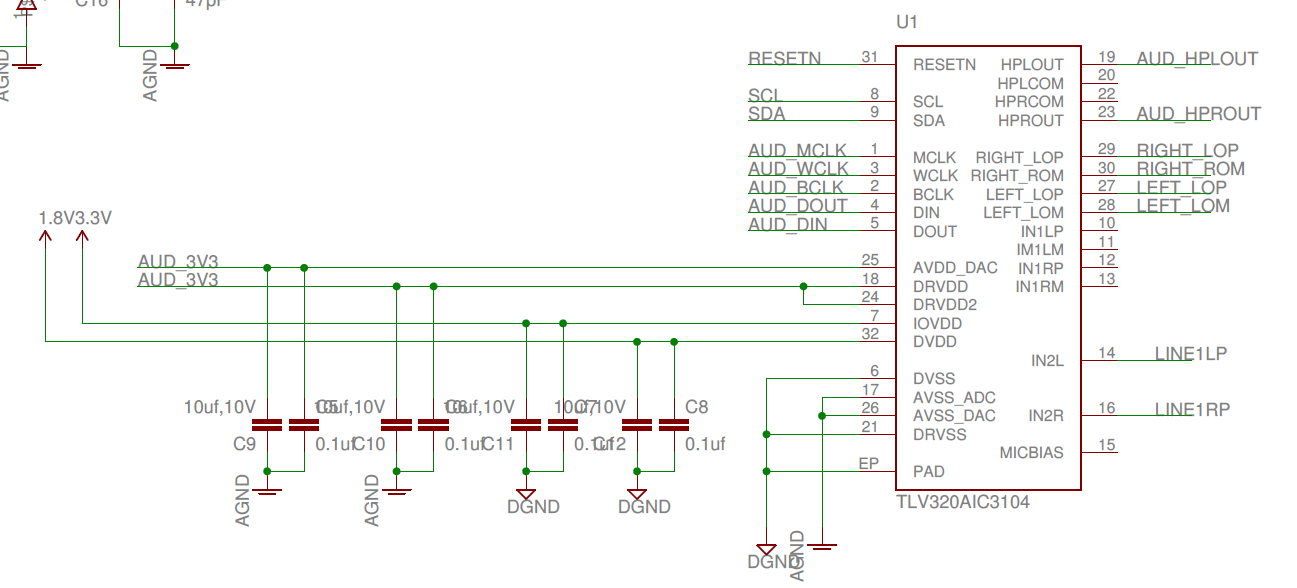

Below is my board and audio cape schematic.

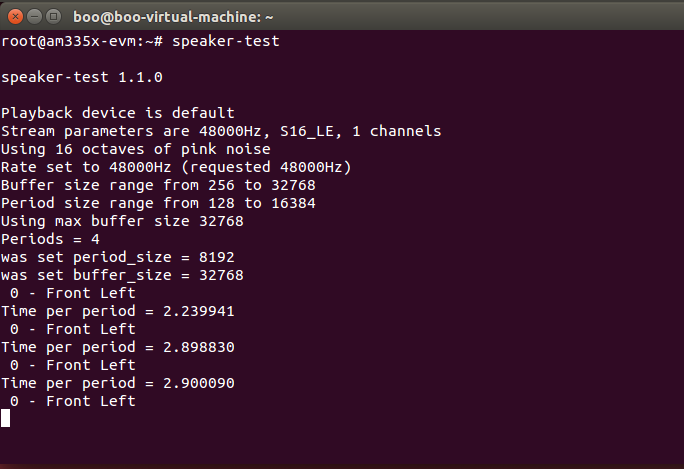

Below is my board info.
I think my i2c is strange.
below is my i2c1 when my board boot.
blue line is sda. yellow line is scl
Thanks,
boo
