AM3354: ADC FSM busy issue

Hi Brad,

Thank you for your reply.

I will check our customer what happens if ADCSTAT [STEP_ID] == IDLE poll is added before writing STEPENABLE.
I will ask if they are only using touchscreen.

It is an additional question.

The linux touchscreen driver code has the following description.
IDLECONFIG and CHARGECONFIG have the same setting values.
There is also no description in TRM, but does this process have to be done?
Please tell me why this comment and code are there.

linux/drivers/input/touchscreen/ti_am335x_tsc.c

titsc_step_config( )

{

....

/* Make CHARGECONFIG same as IDLECONFIG */

config = titsc_readl(ts_dev, REG_IDLECONFIG);
titsc_writel(ts_dev, REG_CHARGECONFIG, config);
titsc_writel(ts_dev, REG_CHARGEDELAY, ts_dev->charge_delay);

....

}

Best Regards,
Shigehiro Tsuda

Hi Brad,

Thank you for your support.

I have confirmed the following registers.
12.5.1.16 IDLECONFIG Register
12.5.1.17 TS_CHARGE_STEPCONFIG

It seems that the setting values ​​of the registers are different from each other.

[linux]
IDLECONFIG=0x00440500
TS_CHARGE_STEPCONFIG=0x00440500

[Starterware]
IDLECONFIG=0x00040500
TS_CHARGE_STEPCONFIG=0x00889120

[customer]
IDLECONFIG=0x00000500
TS_CHARGE_STEPCONFIG=0x00081120

Which value is best ?

The following is new update information.

TSC ADC register values ​​were the same as a result of dumping registers 5 times when problems occurred.
It seems to hang with FSM_busy=Busy, Step_ID=idle.
Please tell me the conditions to hang in this condition.

Best Regards,
Shigehiro Tsuda

shigehiro tsuda said:

The linux touchscreen driver code has the following description.
IDLECONFIG and CHARGECONFIG have the same setting values.
There is also no description in TRM, but does this process have to be done?
Please tell me why this comment and code are there.

linux/drivers/input/touchscreen/ti_am335x_tsc.c

titsc_step_config( )

{

....

/* Make CHARGECONFIG same as IDLECONFIG */

config = titsc_readl(ts_dev, REG_IDLECONFIG);
titsc_writel(ts_dev, REG_CHARGECONFIG, config);
titsc_writel(ts_dev, REG_CHARGEDELAY, ts_dev->charge_delay);

....

}

Please see the silicon errata Advisory 1.0.31 TSC_ADC: False Pen-up Interrupts.  Workaround #1 is to make CHARGECONFIG the same as IDLECONFIG.  One other optimization that was done in Linux was to re-order the sampling of the coordinates X, Y, Z -> Y, Z, X as that had the benefit of using the strong drive just before the charge step (i.e. similar to workaround #2 but without requiring an extra step).  This further required that any general purpose ADC conversions occur in the first steps such that X is the very last step.

Shigehiro,

I was on holiday last Friday and yesterday.

shigehiro tsuda said:

[linux]
IDLECONFIG=0x00440500
TS_CHARGE_STEPCONFIG=0x00440500

[Starterware]
IDLECONFIG=0x00040500
TS_CHARGE_STEPCONFIG=0x00889120

[customer]
IDLECONFIG=0x00000500
TS_CHARGE_STEPCONFIG=0x00081120

Which value is best ?

IDLECONFIG: These are basically the same thing since nothing gets sampled during the charge step.  That said, I'd recommend using the Linux values in general since they are best tested and most widely used.

TS_CHARGE_STEPCONFIG: Use the Linux value.

shigehiro tsuda said:

TSC ADC register values ​​were the same as a result of dumping registers 5 times when problems occurred.
It seems to hang with FSM_busy=Busy, Step_ID=idle.
Please tell me the conditions to hang in this condition.

This is precisely what I described earlier:

In my experience working on the Linux side of things, great care must be taken before writing the STEPENABLE register. Specifically, when the state machine is busy you should not write to STEPENABLE. I've seen lockups occur when this is not observed.

I went back to my old notes and confirmed that ADCSTAT = 0x00000030 was the "signature" for the failure, which is exactly what you're reporting.

Hi Brad,

Thank you for your support.
I understand that it is workaround of "the silicon errata Advisory 1.0.31 TSC_ADC: False Pen-up Interrupts" to make the setting values ​​of CHARGECONFIG and IDLECONFIG the same.

Best Regards,
Shigehiro Tsuda

Hi Brad,

Thnak you for your support.
I understand that the setting value of linux is recommended and  ADCSTAT=0x00000030 indicates an error.

I push the touch panel, I check the waveform with linux.

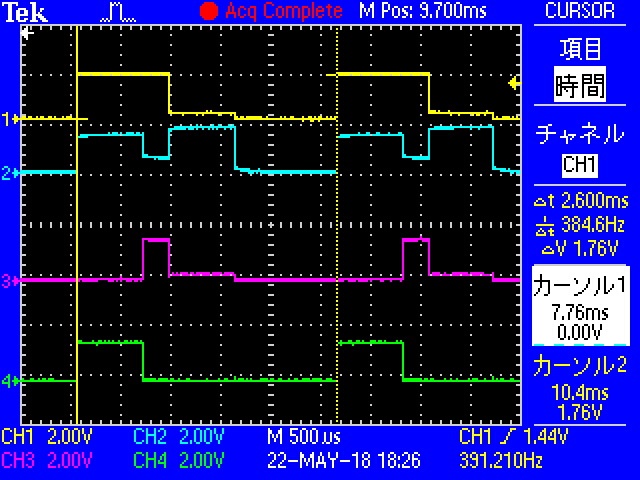

The waveform is as follows.
It seems to be 0 V with CHARGE STEP, but is there a problem?
I think that it is necessary to supply power at CHARGE STEP.

Best Regards,
Shigehiro Tsuda

shigehiro tsuda said:

I push the touch panel, I check the waveform with linux.
The waveform is as follows.
It seems to be 0 V with CHARGE STEP, but is there a problem?
I think that it is necessary to supply power at CHARGE STEP.

Ordinarily you would be correct.  However, if you supply power at the charge step that will result in false pen-up events.  That is the topic of Advisory 1.0.31 TSC_ADC: False Pen-up Interrupts.  The implementation I have described to you has been in use in Linux for many years by many customers.

shigehiro tsuda said:

When an EOS interrupt occurred, polling processing until ADC_STAT [STEPID] == idle was made, polling processing was not executed at once, and it exited immediately.
I think that ADCSTAT [STEPID] == idle already when an EOS interrupt occurs, is it correct?

In general it would be expected that after the end of sequence has occurred that you would be idle.  I think it's worthwhile to sanity check that is always true so as to avoid a lockup.  The place where it's generally more of an issue is if there's another thread for general purpose ADC sampling.  Did you find out if there are general purpose ADC samples being taken in this system?  Or is it strictly being used as a touchscreen.

shigehiro tsuda said:

Hi Brad,

Thank you for quick reply.
If the value of linux is used, can the pen-up interrupt be used without problems? Because of this errata, our customer set timeouts, and if interrupt processing does not occur in the meantime, it is detected by software as a pen-up event.

Best Regards,
Shigehiro Tsuda

Yes, Linux uses the pen-up interrupt.  It works well once you have the workaround from the advisory in place.

Hi Brad,

Thank you for quick reply.
Yes, I confirmed that their system is used only with touchscreen.

Best Regards,
Shigehiro Tsuda

Hi,

As a result of our investigation, we have found the following.
Writing STEPENABLE during the very short time to transition from TS_CHARGE STEP completion (TS_CHARGE_DELAY value time) to IDLE STEP hangs.
It is confirmed that this hang condition occurs 100% in the above sequence.

Recovery from this hung state will recover 100% in the following sequence.

① ADC disable
② Wait until ADCSTAT FSM Busy = 0
③ STEPENABLE resetting
④ ADC enable

Is this behavior correct?

Is it correct that there is a timing that STEPENABLE should not be written during FSM busy?

From this result, it seems to be avoidable with the workaround of resetting STEPENABLE after EOS or resetting STEPENABLE after ADCSTAT [Step_ID] == IDLE.

Best Regards,
Shigehiro Tsuda

Hi Shigehiro,

shigehiro tsuda said:

Writing STEPENABLE during the very short time to transition from TS_CHARGE STEP completion (TS_CHARGE_DELAY value time) to IDLE STEP hangs.
It is confirmed that this hang condition occurs 100% in the above sequence.

I don't have this information, but it is very much in line with previous observations.  If you spent time testing the writes at various steps, then it is most likely correct.  I can't say if it is the only way to make it hang though.  The general practice has been not to write to STEPENABLE any time when the state machine is busy.

shigehiro tsuda said:

Recovery from this hung state will recover 100% in the following sequence.

① ADC disable
② Wait until ADCSTAT FSM Busy = 0
③ STEPENABLE resetting
④ ADC enable

Is this behavior correct?

The Linux driver doesn't have any kind of recovery mechanism and I don't recall having ever seen any issues.  I recommend using the proven technique (avoidance) that is used in the Linux driver.  Perhaps you could have your above recovery method as a fail-safe, though I don't expect it to be invoked if your software is handling STEPENABLE safely.

Hi Brad,

Thank you for your support.

After interruption of End_of_Sequence, I checked by putting a wait code until SETP_ID==IDLE, but it seems that this polling is coming out soon.
Is the condition of SETP_ID == IDLE already at the time of interrupt of End_of_Sequence?
After interrupt of End_of_Sequence it seems I do not need the wait code until SETP_ID==IDLE.

Best Regards,
Shigehiro Tsuda

Hi Brad,

Thank you for quick reply.
In fact, is it correct that you do not need the wait code until SETP_ID==IDLE after the End_of_Sequence interrupt?
Our customer wants to avoid having polling processing with interrupt handling functions.

Best Regards,
Shigehiro Tsuda

Perhaps instead of polling you might consider a single read where you could flag an error if ever you come across a scenario where it's not idle.  I don't expect that to happen, but if it ever did it would help to have that error logged.

Hi Nick,

Thank you for your support.
Immediately after interruption of end_of_shequnce, it is not necessarily STEP_ID==IDLE, but which state is it?

Best Regards,
Shigehiro Tsuda

Hi,

When reading the STEPENABLE register when TSC ADC hangs, it is 0x7F9.
Since 0x7FF is written, it seems that it is going to step2.
Is there anything else that causes software control to stop in the middle of step?

Best Regards,
Shigehiro Tsuda

Hi Nick,

Thank you for quick reply.

When the TSC ADC reads the STEPENABLE register after hang, there seems to be 0x7FF and 0x7F9. Occasionally 0x7F9, 0x7FF is mostly.
Since STEPENABLE was written after the FIFO 1 threshold interrupt, no code like that written in step 2 was found.
Step_id of ADCSTAT is IDLE.

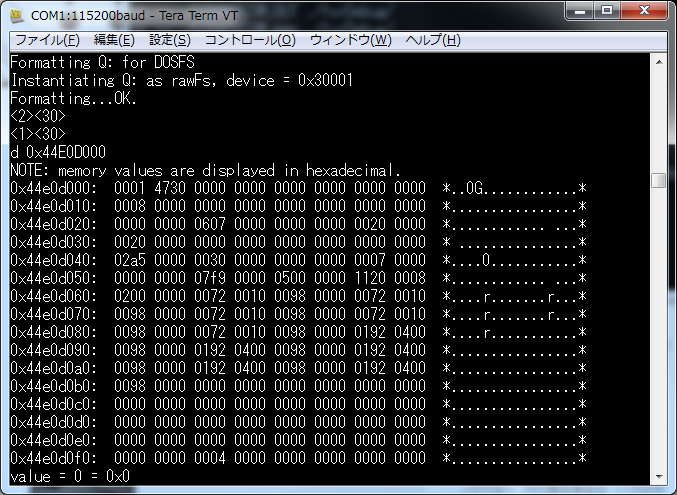

The register is as follows.

Do you know what is happening?

Best Regards,
Shigehiro Tsuda

using END_OF_SEQUENCE to determine if STEP_ID==IDLE:
It sounds like an END_OF_SEQUENCE interrupt is generated when all steps have been serviced in the adc_clk domain. However, the sequencer is in the ocp_clk domain. I was told that in order to safely use END_OF_SEQUENCE to indicate the state, wait the equivalent of two adc_clk cycles after receiving an END_OF_SEQUENCE interrupt before writing to STEPENABLE.

Perhaps this could be combined with Brad's suggestion to check STEP_ID after receiving an END_OF_SEQUENCE interrupt? (receive END_OF_SEQUENCE, check STEP_ID==IDLE, if STEP_ID != IDLE then wait the equivalent of two adc_clk cycles before writing to STEPENABLE). Or maybe it would be faster to receive END_OF_SEQUENCE, then poll for STEP_ID == IDLE instead of waiting.

Regards,
Nick

1) So sometimes when the halt condition occurs, the charge step and steps 1 , 2, 3, 4, 5, 6, 7, 8, 9, 10 are enabled? And other times only the charge step and steps 3, 4, 5, 6, 7, 8, 9, 10 are enabled? Are there any other variations?

2) Is your code setting STEPENABLE = 0x7FF in one part, and setting STEPENABLE = 0x7F9 in another part? If not, it does look like something is causing the FSM sequencer to stop in the middle of addressing steps.

Regards,
Nick

Hi Nick,

Thank you for quick reply.

[your answer]

using END_OF_SEQUENCE to determine if STEP_ID==IDLE:
It sounds like an END_OF_SEQUENCE interrupt is generated when all steps have been serviced in the adc_clk domain. However, the sequencer is in the ocp_clk domain. I was told that in order to safely use END_OF_SEQUENCE to indicate the state, wait the equivalent of two adc_clk cycles after receiving an END_OF_SEQUENCE interrupt before writing to STEPENABLE.

Perhaps this could be combined with Brad's suggestion to check STEP_ID after receiving an END_OF_SEQUENCE interrupt? (receive END_OF_SEQUENCE, check STEP_ID==IDLE, if STEP_ID != IDLE then wait the equivalent of two adc_clk cycles before writing to STEPENABLE). Or maybe it would be faster to receive END_OF_SEQUENCE, then poll for STEP_ID == IDLE instead of waiting.

[question]

Is it correct with the following understanding?
1. There is a period during which STEP_ID == IDLE does not occur after interrupt of END_OF_SEQUENCE.
2. Writing STEPENABLE during that period will cause a hang problem.
3. After interruption of END_OF_SEQUENCE, wait 2 adc_clk (667 ns when adc_clk is using at 3 MHz), always make STEP_ID == IDLE.
4. After this time, by writing STEPENABLE, the problem of hanging does not occur.

It is an additional question.
Which of the following timings is generated for interrupt generation of END_OF_SEQUENCE?
① Before transition of Charge STEP after final STEP completion
② After completion of Charge STEP
③ During transition of Charge STEP to IDLE
④ After becoming IDLE

Best Regards,
Shigehiro Tsuda

Hi Nick,

Thank you for various support.
Sorry for my late reply.

We understood the time to update STEPENABLE.
Our customer has a problem even if you write STEPENABLE after STEP_ID becomes IDLE after END_OF_SEQUENCE interrupt.
However, since they are not organized on what conditions they occurred, we will ask them to confirm them again.

Best Reards,
Shigehiro Tsuda
