PCM5142: How to use the limit data module ?

Part Number: PCM5142

Hi Team

  Custome want to use the 'limit data' module in the GDE software of PCM5142, but we can't know how to use this module . How we connect the input ?  Is there any user gudie for this ?

  • Hi Aggil,

    Right-clicking any module and selecting "help" will show some information on how to use the module.

    As the help menu describes, this essentially acts as a digital limit, and will "clip" the output.

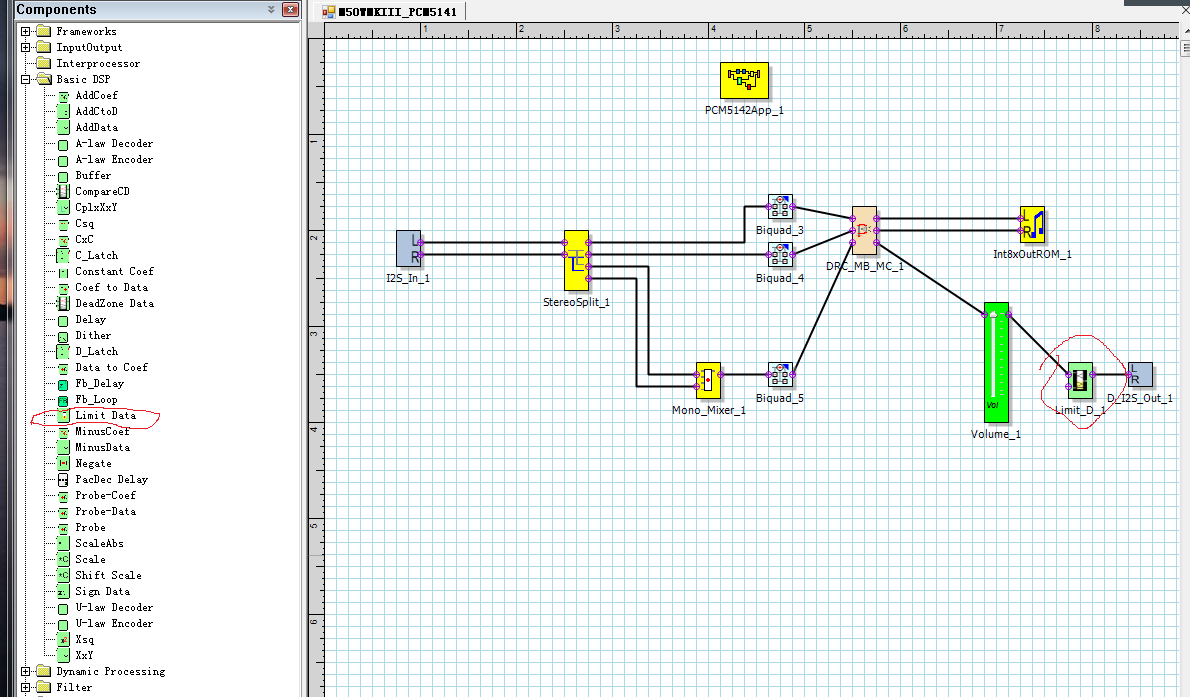

    Here is how I implemented it, for example. I use the coefficient of 0.8 to in the C_to_Data block.

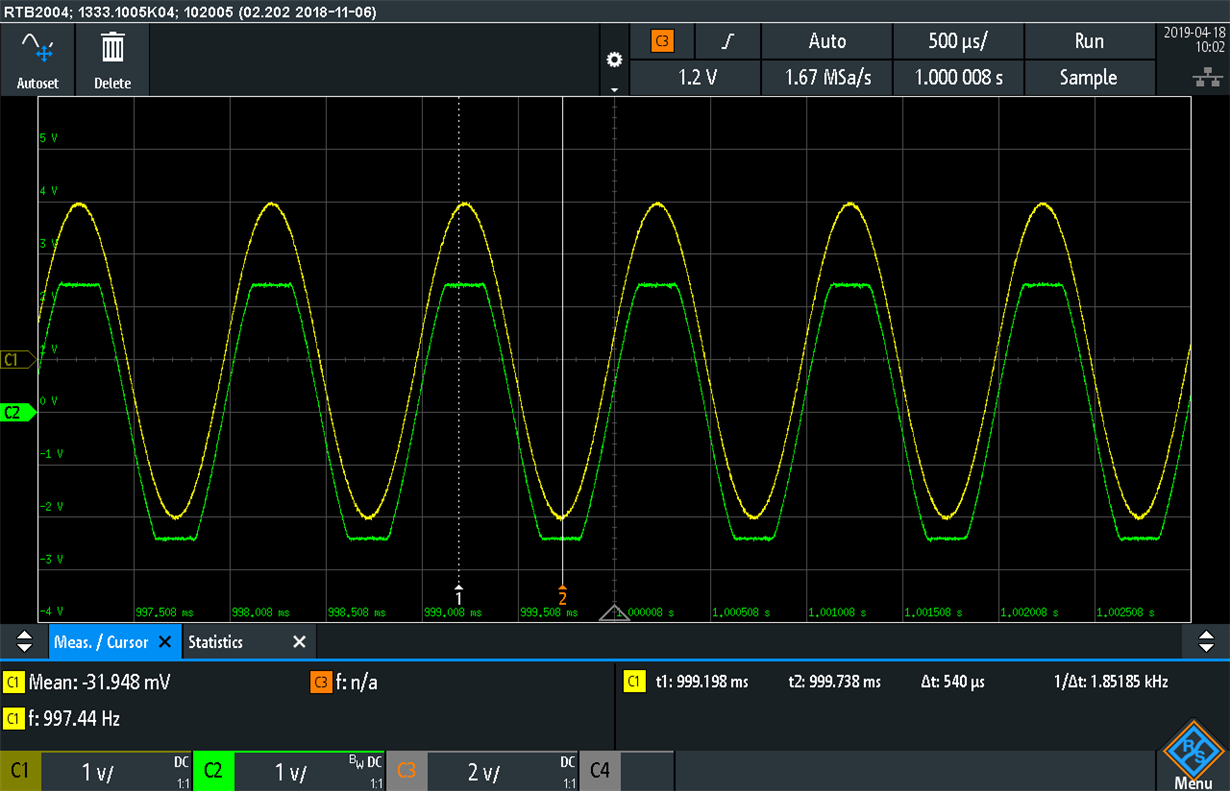

    As a result, the right channel was limited to about 80% full scale, compared to the left channel.

    Thanks,

    Paul
