CDCLVD1216 VIN, DIFF clarification

Grant Downie2

Intellectual 390 points

Other Parts Discussed in Thread: CDCLVD1216

Dear Sir/Madam,

Page 5 of CDCLVD1216 states that VIN, DIFF "differential input voltage peak-to-peak" is 0.3V (min).

Q. Is VIN, DIFF the same as VID?

The reason why I ask is that most LVDS drivers including CDCLVD1216 have VOD specified as 0.25V (min)

meaning that the CDCLVD1216 is difficult to interface.

Regards Grant

over 10 years ago

0 Alan O over 10 years ago

TI__Mastermind 32575 points

Hi Grant,

CDCLVD1216 can accept LVDS levels with no problem. Standard compliant LVDS drivers have min. differential output voltage peak-to-peak swing of 250 mV x 2 = 500 mVpp, which is greater than the VIN, DIFF spec of 0.3 Vpp (min) for CDCLVD1216.

Regards,

Alan

0 Grant Downie2 over 10 years ago in reply to Alan O

Intellectual 390 points

Hi Alan,

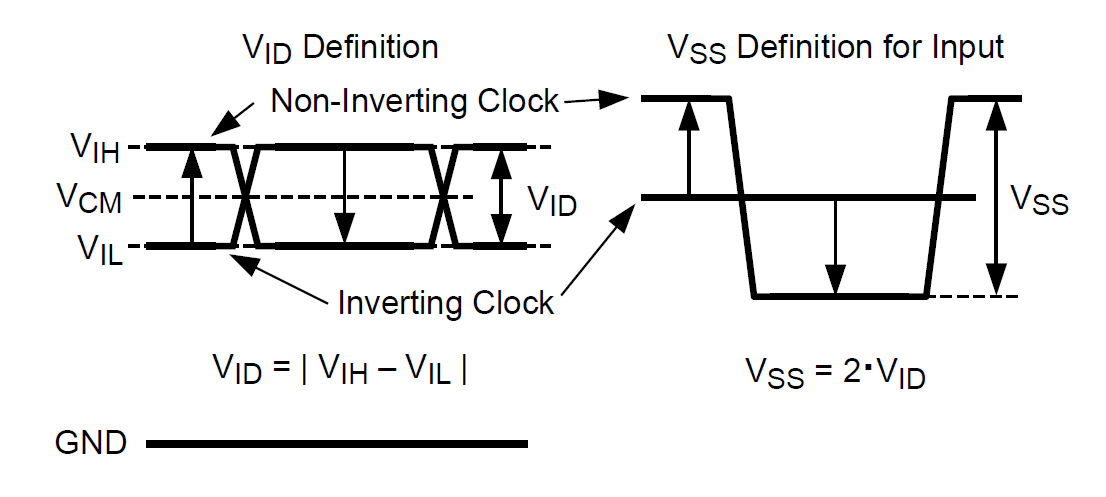

Just to confirm that VIN, DIFF specified in the datasheet is 2* (VIH-VIL) as shown in the diagram

ie. VID is 0.15 (min) 0.8V (max)

Regards Grant

0 Alan O over 10 years ago in reply to Grant Downie2

TI__Mastermind 32575 points

I can confirm VIN, DIFF is equivalent to 2 * VID = 2 * (VIH-VIL).

Regards,
Alan

0 Grant Downie2 over 10 years ago in reply to Alan O

Intellectual 390 points

Hi Alan,

Thank you.

Regards Grant
