ADS1292: I want to only use 2 electrode (ADS1292) for 1-Lead ECG without RLD?

Hello,

The main product experts for the ADS129x family of devices are out of the office right now but I believe this will be possible if you AC couple the incoming ECG signals from the body. That said, from what we've discussed together you'll likely have challenges with 50/60Hz, and other noise rejection coupling challenges if you don't use RLD to bias the body.

Here's a link to an app note that describes the advantages of RLD:

http://www.ti.com/lit/an/sbaa188/sbaa188.pdf

Here's the main FAQ page with other helpful information:
https://e2e.ti.com/support/data-converters/f/73/t/772058

hi collin

    Thanks for your reply,I know 1-Lead ECG usually used 2 electrode(RA/LA) to measure ECG and used third electrode for RLD. I want to  know  that  ADS1292 can only used 2 electrode to measure 1-lead ECG  wihtout  RLD ? Or  it need through setting registers or  internal connect third electrode for RLD function?

Dear Ryan:

             Thanks for your reply.

            you say that  TI has  the reference design(sch and PCB), cay you  share it with me?

           In addition, what level can the common mode rejection ratio reach?

          thx.

Hi Leo,

You can refer to the ADS1292ECG-FE evaluation board for schematic and layout examples. We have not yet tested this system against the IEC CMR standard.

Best regards,

Dear RYAN

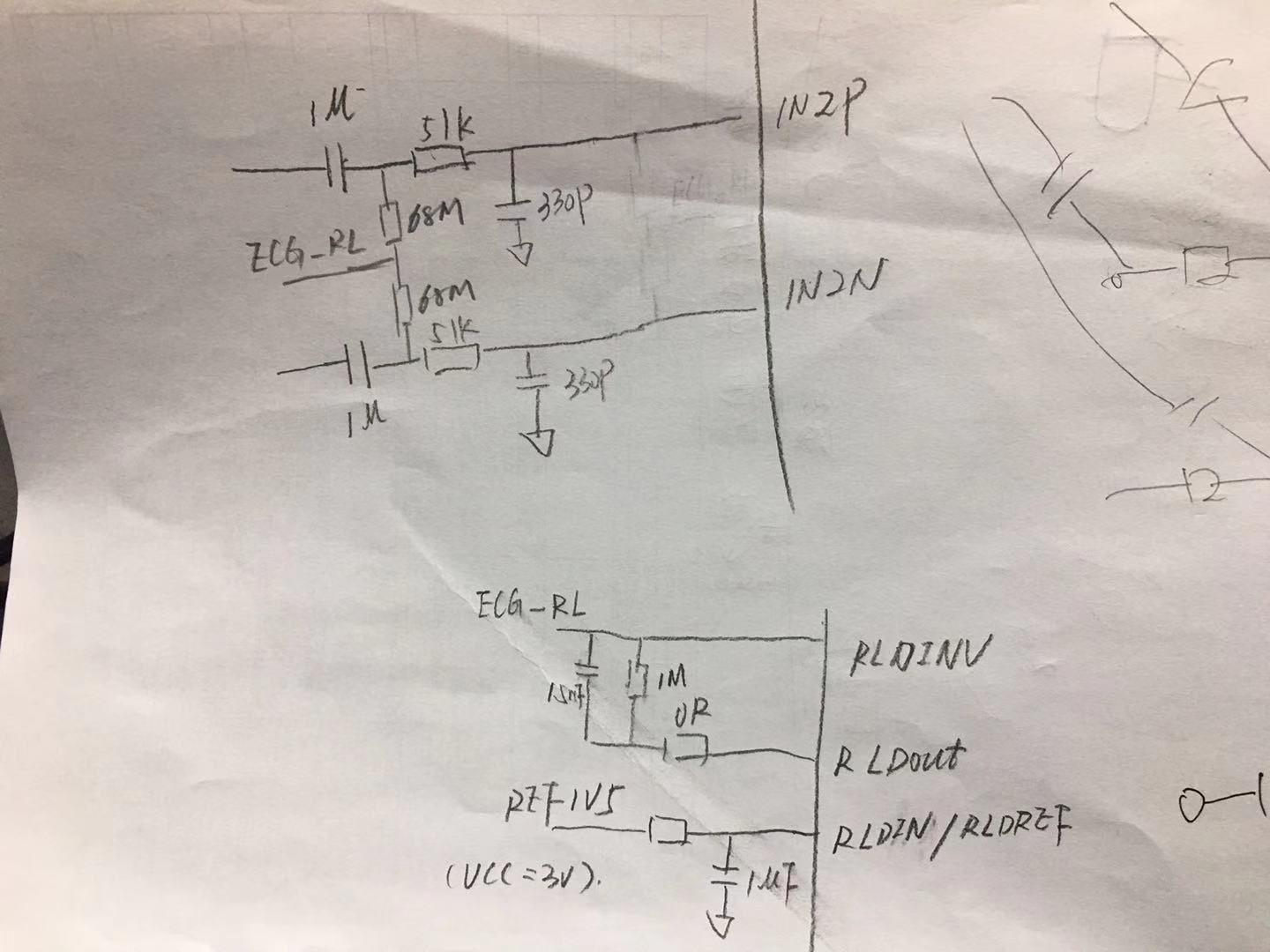

      My circuit is as follows，pls review it,thx.

Hi Ryan

     One more question，In this case，These electrode inputs must be AC-coupled,so how to realize the function of lead off?

HI,Ryan

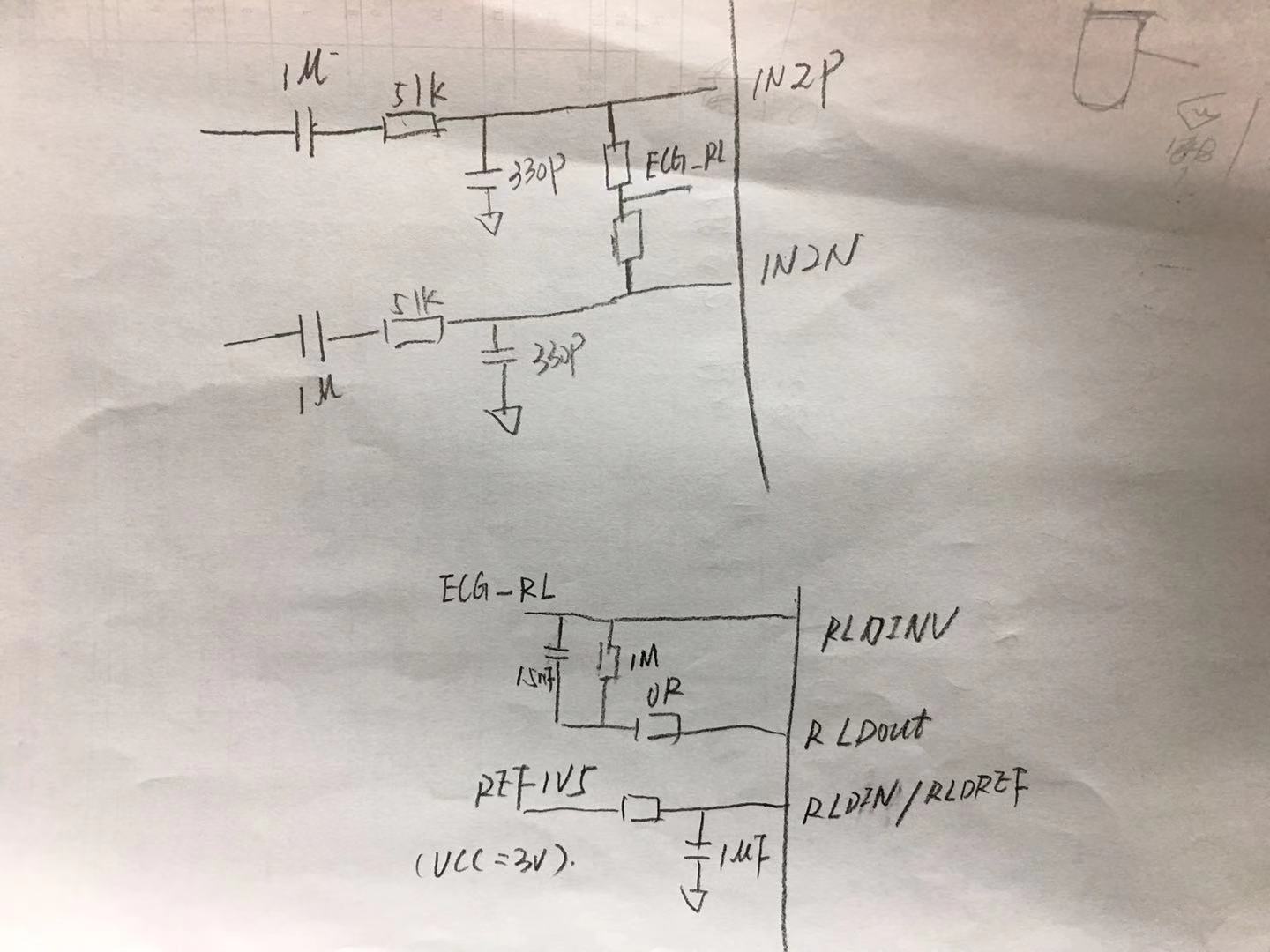

     According to my understanding, the circuit diagram has been modified, please help to confirm, thank you

Hi Leo - that looks good to me!
