TLV320AIC3104IRHBR output power question

Jacky Chen29

Genius 4735 points

Other Parts Discussed in Thread: TPA2011D1

Hola,

May I know that does it how many output power of 0.5Vpp and 1Vpp of the audio source？

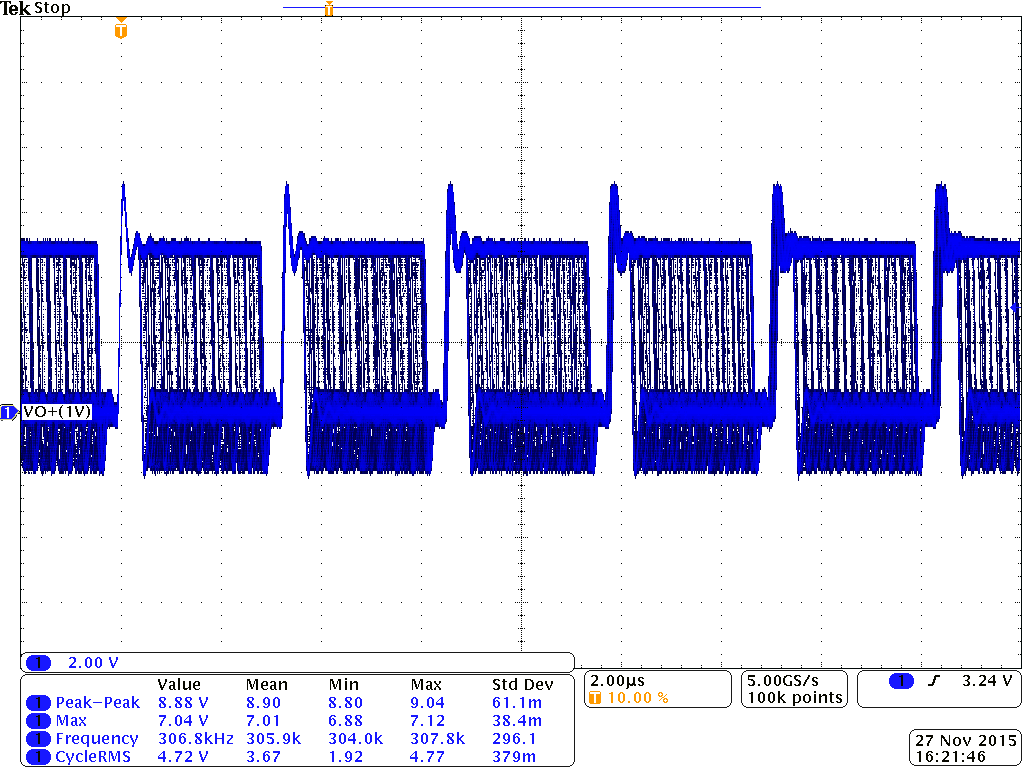

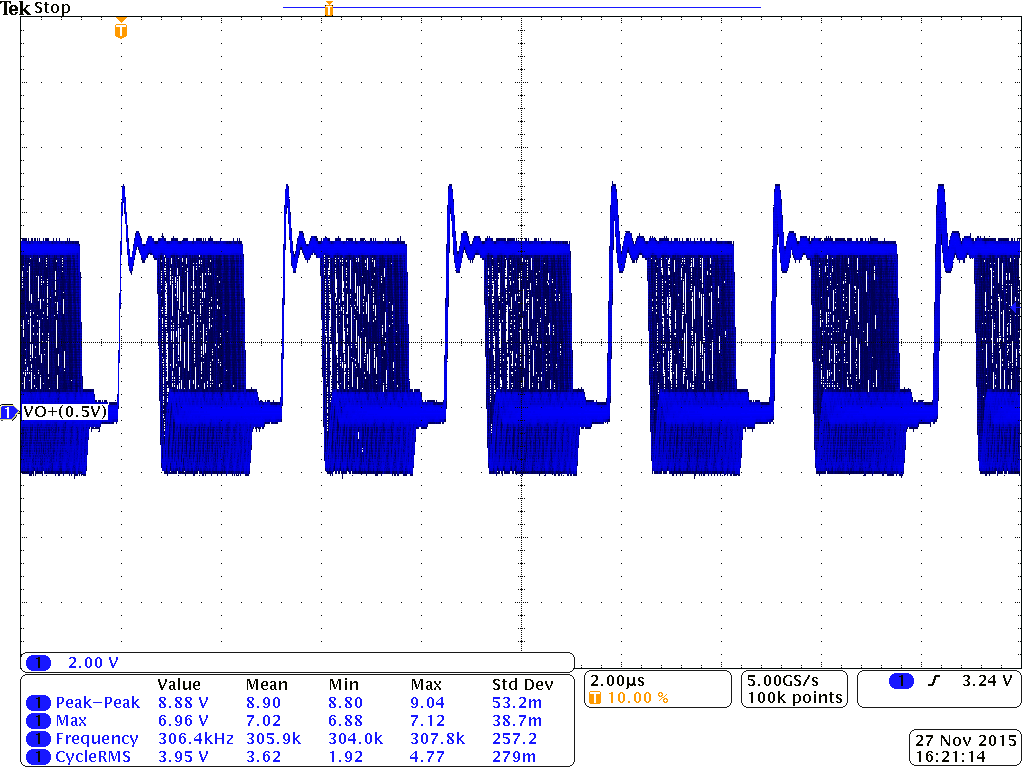

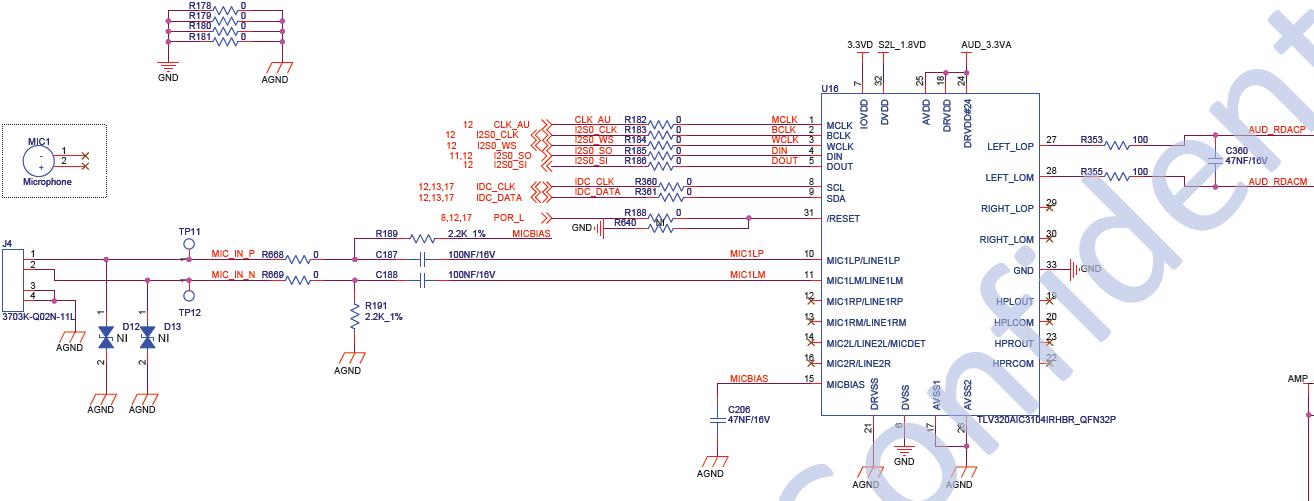

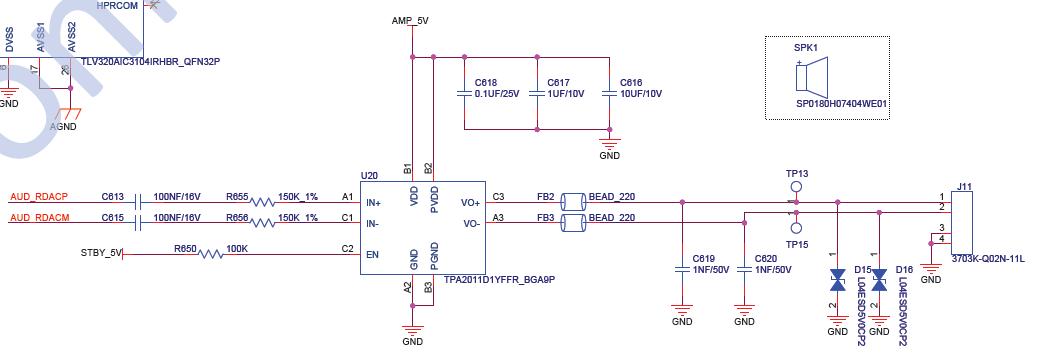

Below is the schematic and measurement waveform.

over 8 years ago

0 Luis Fernando Rodriguez S. over 8 years ago

TI__Guru* 84915 points

Hola, Jacky,

This measurement must be done on the TPA2011D1 output. I will move this thread to the Audio Amplifiers Forum. I will ask to my colleague to take a look of it.

Best regards,
Luis Fernando Rodríguez S.

0 José Luis over 8 years ago in reply to Luis Fernando Rodriguez S.

TI__Mastermind 20085 points

Hola Jacky,

I have performed the measurements with the next conditions Vdd=5V, Av=2V/V and RL= 8Ω. I obtained with a Vin=0.5 Vpp, an output power of 12.54 mW and with a Vin=1Vpp, an output power of 50.09mW.

Please let me know your opinion, or if you have more questions.

Best regards
José Luis Figueroa
Audio Applications Engineer | A-Team
Low Power Audio and Actuators
Texas Instruments

0 Jacky Chen29 over 8 years ago in reply to Luis Fernando Rodriguez S.

Genius 4735 points

Hola Luis,
Thank you.

0 Jacky Chen29 over 8 years ago in reply to José Luis

Genius 4735 points

Hola Jose Luis,
This is great answer. Thank you ～
