TVP7002 The missing color when power supply starts up

Kuramochi Tadahiko

Guru 28715 points

Other Parts Discussed in Thread: TVP7002

Hi,

My customer is evaluating the TVP7002.

It is happened that the missing color when power supply starts up on TVP7002 circuit.

The occurrence frequency　is 40-50%.

The monitor is following.

They have confirmed that ADC_SETUP_DATA is same with ADC_Read_DATA and the reset sequence has no problem.

And when input signal is only Y the missing color is not happened.

So they guess that the reason is the timing error of Y/Pb/Pr.

Could you please tell me how to solve this problem?

Please let me know if it has lack of information, and if you need the circuit diagram I'll send it by e-mail

Best Regards,

Kuramochi

over 8 years ago

0 Kuramochi Tadahiko over 8 years ago

Guru 28715 points

Could you please give me any advice?

0 Eason Wang over 8 years ago in reply to Kuramochi Tadahiko

TI__Genius 13460 points

I dont quite understand your question.

What do you mean by It is happened that the missing color when power supply starts up on TVP7002 circuit ?

Is the power supply of the 7002 circuit and the mainchip circuit be powered up seperately ?

What resolution are you using? And have you tried other resolutions?

BR,

Eason

0 Kuramochi Tadahiko over 8 years ago in reply to Eason Wang

Guru 28715 points

Eason-san,

Thank you for your reply, and I'm sorry for my poor English skill.

>Is the power supply of the 7002 circuit and the mainchip circuit be powered up seperately ?

No, the power supply of the 7002 and the mainchip circuit are common.
Just after power supply starting up, the missing code happens.

>What resolution are you using? And have you tried other resolutions?
I confirm to my customer.

Thanks and Regards,
Kuramochi

0 Kuramochi Tadahiko over 8 years ago in reply to Eason Wang

Guru 28715 points

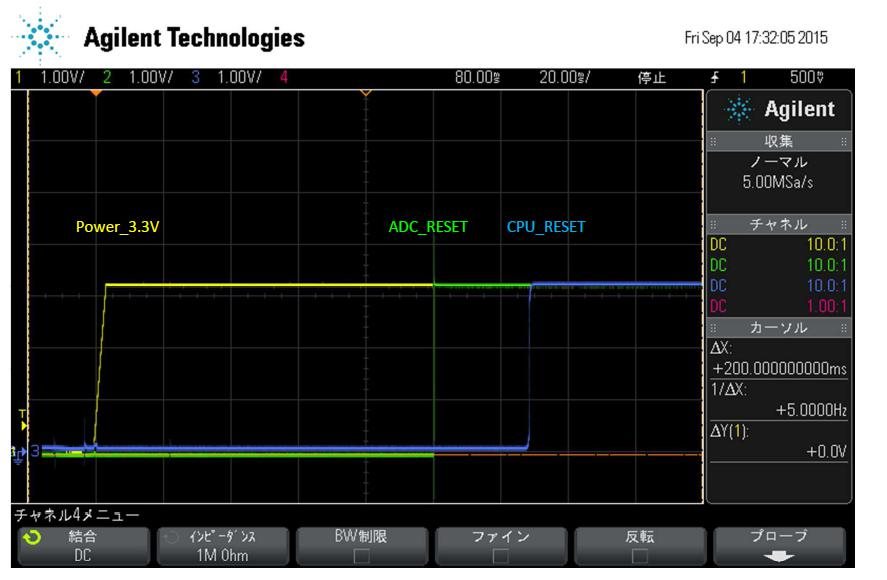

The following is the resetting waveform.

0 Eason Wang over 8 years ago in reply to Kuramochi Tadahiko

TI__Genius 13460 points

Kuramochi-san,

Some questions:
- A new design or old design?
- Has customer try other video sources/resolutions
- Is there any test result can show color reverse?

BR,
Eason

0 Kuramochi Tadahiko over 8 years ago in reply to Eason Wang

Guru 28715 points

Eason-san,

Thank you quick response.
I confirm them soon.

Thanks and Regards,
Kuramochi

0 Kuramochi Tadahiko over 8 years ago in reply to Kuramochi Tadahiko

Guru 28715 points

Eason-san,

I answer in the following;

>What resolution are you using? And have you tried other resolutions?
The Resolution is 1080i /60Hz 59.97Hz
The missing color does not happens on 720P/60Hz

> A new design or old design?
This is a new design.

> Has customer try other video sources/resolutions
The missing color happens regardless of the video source.

> Is there any test result can show color reverse?
They don't have the other test result.

Please let me know if there is a lack of the information.

Kuramochi

0 Steve Clynes over 8 years ago in reply to Kuramochi Tadahiko

TI__Mastermind 43875 points

Make sure that there is a delay between power up and TVP7002 I2C configuration.

Try resetting the processor again to see if this is truly a power up issue of a configuration timing issue.

BR,

Steve

0 Kuramochi Tadahiko over 8 years ago in reply to Steve Clynes

Guru 28715 points

Hi Steve-san,

Thank you for your reply.
I'm just waiting for my customer's answer.

In addition, I would like to confirm the substitute product of TVP7002.
The status of the TVP7002 is NRND(not recommened product).
Is there any substitute product ?

Thanks and Regards,
Kuramochi
