Problem while connecting ezdsp TMS320F28335 with CCS 6

Hi Sibin,

Check whether the drivers are installed properly. Also, check the voltage levels on the board and compare them with the available schematics.

Regards,
Gautam

Hi Gautham,
Windows is detecting USB connection and I can view SD USB based tools in device manager. Does it guarantee that the drivers are installed? or how else I can check whether the drivers are installed?.
Thanks and Regards
Sibin

So there are no yellow colored alert symbols on the SD USB device in Device Manager, right?

No there is No yellow colored alert symbols on the SD USB device in Device Manager

Great! Then there doesn't seem to be any issue with the drivers. Check the sch I sent to you and revert with your observations.

Regards,
Gautam

Hi,
I checked the voltage level of TP1 and TP2 in board. At TP1 it is zero and at TP2 it is 1.8v. I guess this is right. Should I check voltage level at some other point also.

Hi Gautham,
I tested voltage levels at different points in ezdsp board and the voltage levels are looking right. I am really struck. I can't proceed further without your help.Please suggest a solution.

Hi Gautham,
I checked with other board too. It is also giving same problem. So I hope that there is no problem with board. So can you suggest some solution on the basis of this inputs.

Thanks and Regards
Sibin

Thanks for the inputs, Sibin. Try changing the data cable once. Also, install CCS Uniflash with SD drivers, we'll check with that too.

Regards,
Gautam

Hi Gautham,

I will try that and will let you know.

Thanks and Regards

Sibin

Hi Gautham,

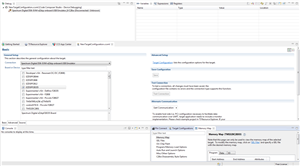

I installed Uniflash and tried to connect the board I created new target configuration with ezdspF28335 as board and spectrum board usb emulator as connection. When I pressed ok it is showing the following text.

Loaded target configuration from: C:\Users\sibin\AppData\Local\TEXASI~1\CCS\ti\4\0/temptargetconfiguration.ccxml.

Then I tried to do frequency test, then it is showing the same error.

FATAL >> C28xx: Error connecting to the target: Error 0x80000200/-1135 Fatal Error during: OCS, Unrecoverable emulation error.

Hello
Can you try running the SDConfigEx utility to test you JTAG connection?
emulators.spectrumdigital.com/.../sdconfig

The utility comes with the SD drivers installation as part of the CCS installation.

Check this out:

Hi Lee,
Thanks for providing me the reply. I am using ezdsp onboard usb emulator, so which one sould I choose to run the SDConfig utility test.

Thanks and Regards
Sibin

Hi Gautham,
Thanks for providing the reply. I went through that document and will check as mentioned in it.
Thanks and Regards.
Sibin

Hi Gautham,

    Can you just conform, whether my installation process was right. I am attaching the screenshots  of the installation process.

Hi Lee,
I contacted spectrum digital and they mentioned me that SDConfigEx utility doesnot support onboard usb emulator in ezdsp.
Thanks and Regards
Sibin

You installation looks fine. There just looks like there is some JTAG connectivity issue.

Another useful link:
support.spectrumdigital.com/.../troubleshooting_guide

Also, if you can generate a debug server log and attach it here, it may help us:

processors.wiki.ti.com/.../Troubleshooting_CCSv6

Thanks
ki

debuglog CCS6.txtHi,

   I am attaching the debug log file here. Please have a look on this.

Thanks and regards

Sibin

Hi Lee and Gautham,

          Any suggestion after seeing the debug file. Your help will be really appreciated as I cant proceed without your help.

Thanks and Regards

Sibin

Sibin, sorry I can't read the above log file. I hope ki-soo can. Lets wait.

Regards,
Gautam

Thanks Gautham

Hi Sibin,
Thanks for the log. The engineers have analyzed it. Unfortunately we don't have a answer for your issue as the error is coming from the emulation driver and everything looks fine in the debugger. Since the driver is from Spectrum Digital, I suggest you contact their support for more help. Sorry

ki
