LM3481 SEPIC simulation

MichaelH

Intellectual 350 points

Other Parts Discussed in Thread: LM3481

Hello,

I've been trying to use WebBench as well as PSPICE to simulate the LM3481, but I can't seem to get it to work. My specs are:

Vin: 18-45V

Vout: 24V

Iout: 0.1A

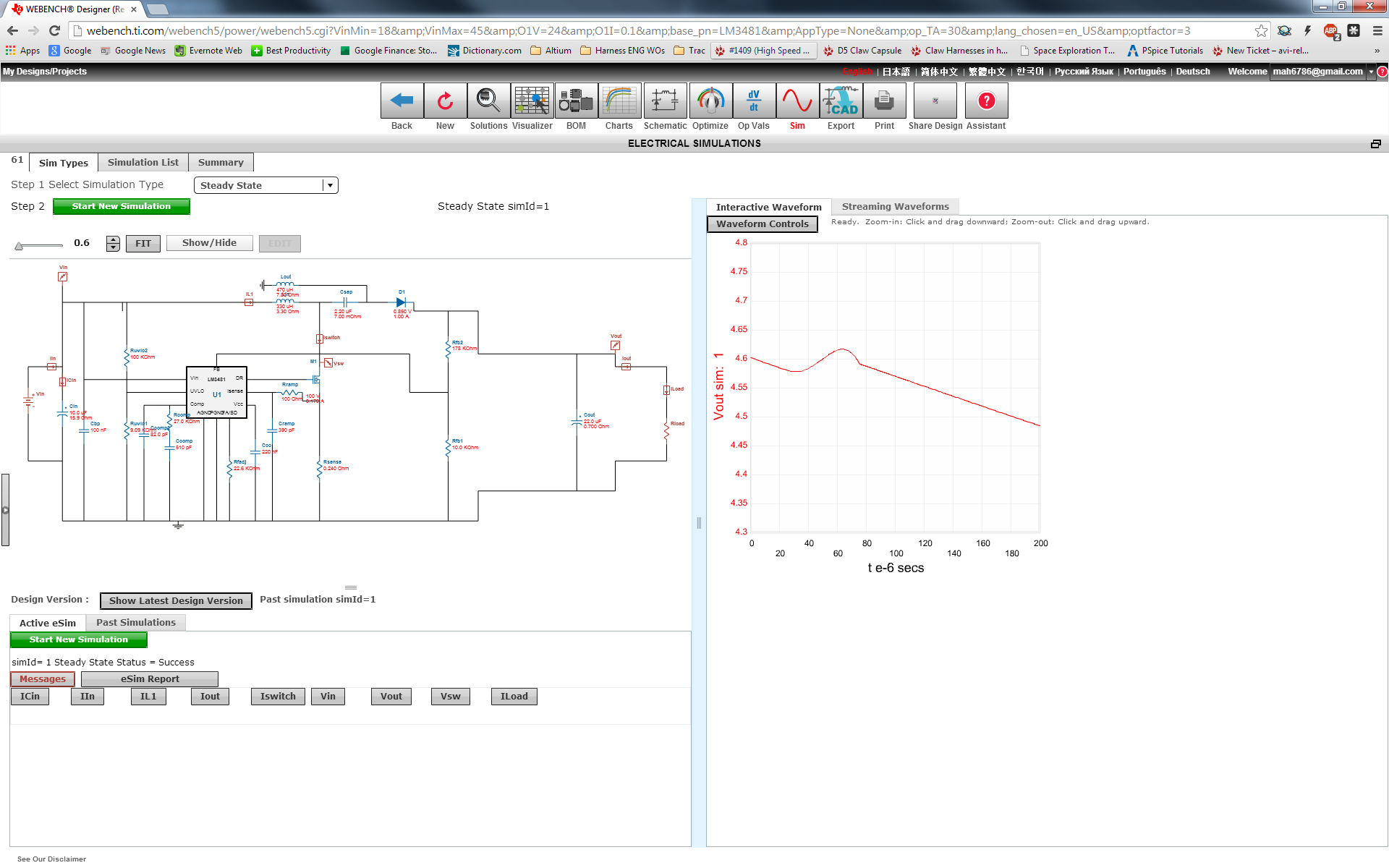

Here's what I get from WebBench:

I tried constructing the same circuit in PSPICE, but it doesn't work either; the voltage just keeps on dropping. What am I doing wrong?

over 9 years ago

0 Nikhil Gupta (Product Folder Models) over 9 years ago

TI__Mastermind 39210 points

Hi Michael,

I have looked into this and it seems like you are hitting one of the corner conditions for this model (not the device) where VOUT is not settling down to the final value in the simulation. I tried a few things and although not ideal, if you change Iout to 0.2A, the steady state simulation runs fine.

Thanks,

0 MichaelH over 9 years ago in reply to Nikhil Gupta (Product Folder Models)

Intellectual 350 points

Hi Nikhil,

I still can't seem to get the SEPIC topology to work in PSPICE. Can you take a look?

0447.LM3481_PSPICE_TRANS.zip

-Mike

0 Vagner Rodrigues over 9 years ago in reply to MichaelH

Prodigy 60 points

Hi Michael.

You could simulate?

I've been trying simulate the LM3481 model but I can't do this. First all, I have to use the AVG model or the TRANS model?

Can you help me?

I'm using OrCAD PSPICE 10.5.

LM3481 Carregador Bateria PSPICE Simulacao.rar

Thanks.

Vagner.

0 Britt Brooks - Online Design Tools over 9 years ago in reply to Vagner Rodrigues

TI__Mastermind 41310 points

Vagner,

Please see your other post for more information on this topic.

Britt
