AC Transfer Characteristic for Differential Input and Output

Lane Boyd

Hello,

Using TINA, is there a way to measure the AC transfer characteristic for a circuit with a differential input and differential output? My circuit is below.

Thanks,

Lane

over 7 years ago

0 Marcos López - Online design tools over 7 years ago

TI__Intellectual 2290 points

Hi Lane,

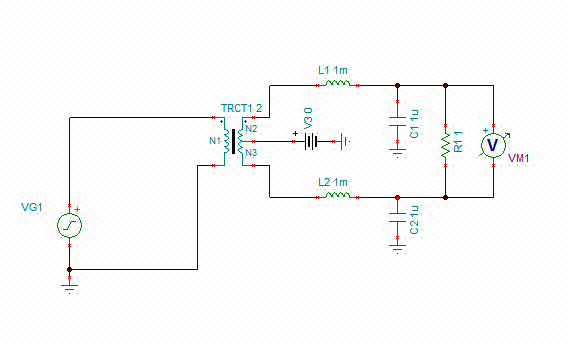

One way to do this is to split the signal at the input either using a transformer or voltage controlled sources. I've used a transformer with a center tap as show below to split the signal and then I measure the differential output by using a voltage meter connected across the output resistor. I also attached my TINA test bench.

You can run your AC Transfer Characteristic analysis from 1 to 10k and you should see the effect of the 2nd order low pass.

Hope this helps,

Marcos

diffSignal.TSC

0 Lane Boyd over 7 years ago in reply to Marcos López - Online design tools

TI__Genius 16845 points

Thanks for the help Marcos! This solved the problem.
