TINA/Spice/REF5050: Prolems with the simulation

Part Number: REF5050

Tool/software: TINA-TI or Spice Models

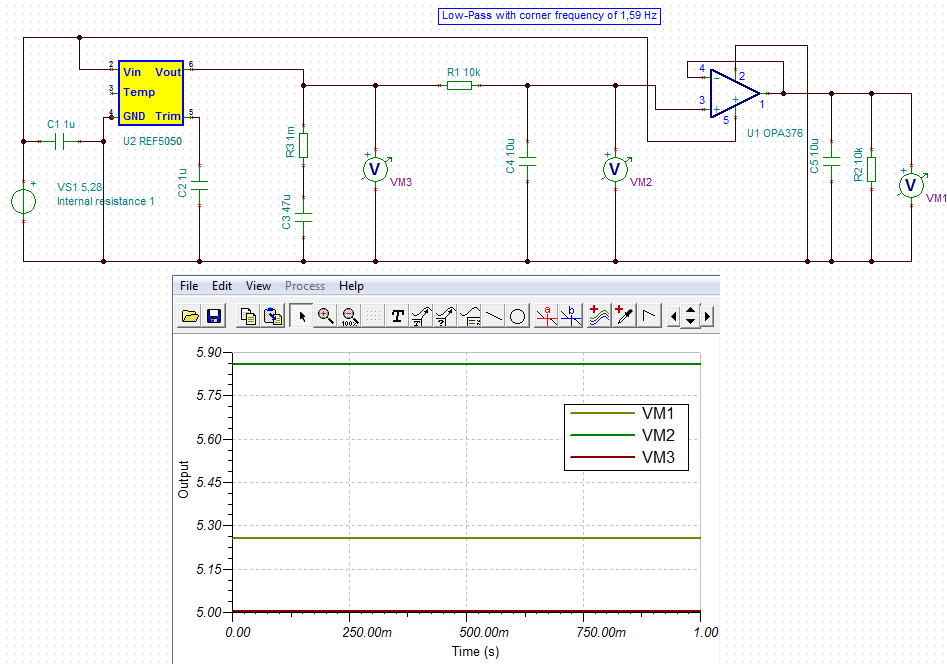

Hello Community, I want to buffer the REF5050 Output with an OPA376, but after a Lowpass filter, I get a Illogical result.

Sim.rar

Thanks in advance

  • Christian,

    Please refer to these guidelines: e2e.ti.com/.../592360
    We need your TSC file to help with the debug.
