How can I get the measured value of Total Conversion Time on board?

Okayama Gou

Dear,

Could someone give me your advise for following?

Device: TMS320VC5507ZHH

I'd like to know how I can get the measured value of Total Conversion Time on board.
Because, I can not get measured value that should be equal with calculated value of AD Conversion time.

My question:
I think ADCBUSY bit in ADCDATA Register becomes high while Sample and Hold process and Conversion process.

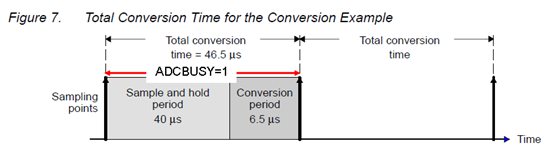

In other words, ADCBUSY=1 during 46.6uS, Total conversion time, in case of following Figure.
Am I right?

Regards,
Okayama

over 11 years ago

0 Steve Tsang over 11 years ago

TI__Mastermind 23785 points

On page 9 of SPRU586B:
After the conversion process completes, the ADCBUSY bit value changes from 1 to 0, indicating that the conversion data is available.

So, yes, ADCBUSY = 1 for 46.5us. Switch to 0 on next clock cycle.

Regards.
