[C5535] Recommended land pattern for C5535

Guru 24520 points

Hi community member,

Would you please provide the recommended land pattern of C5535?

I checked the datasheet of C5535, however I cannot find it.

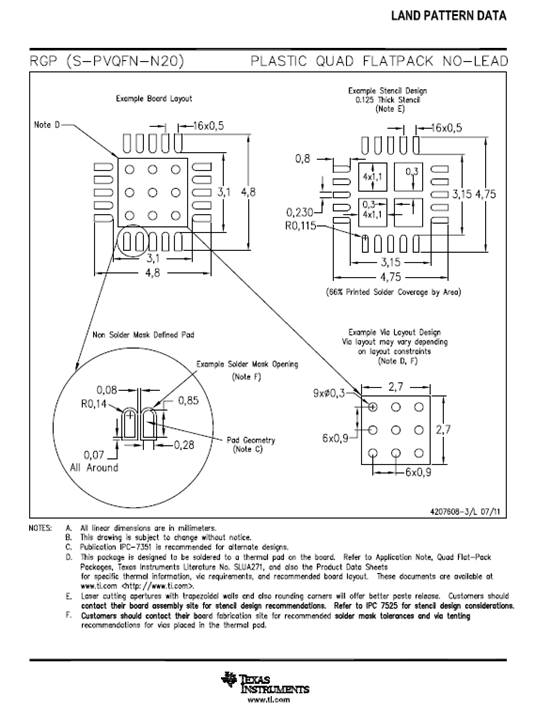

We need to provide the land pattern like the following data to customer.

  Note: This example is DRV2665.



Best regards.

Kaka
