Has anyone successfully used the 10 GbE with the K2H evaluation module (EVMK2HX)?
Are you using the Mistral RTM-BOC or some other means?:
The website above states that 10 GbE hasn't been tested with the K2H board but is said to work for the K2E eval module. I tried contacting Mistral's tech support, but was not able to get a straight answer.
Thanks,
Paul
Yes. Please mention the version RTM-BOC used. Please refer below Link,
Thank you.
Hi, Paul,

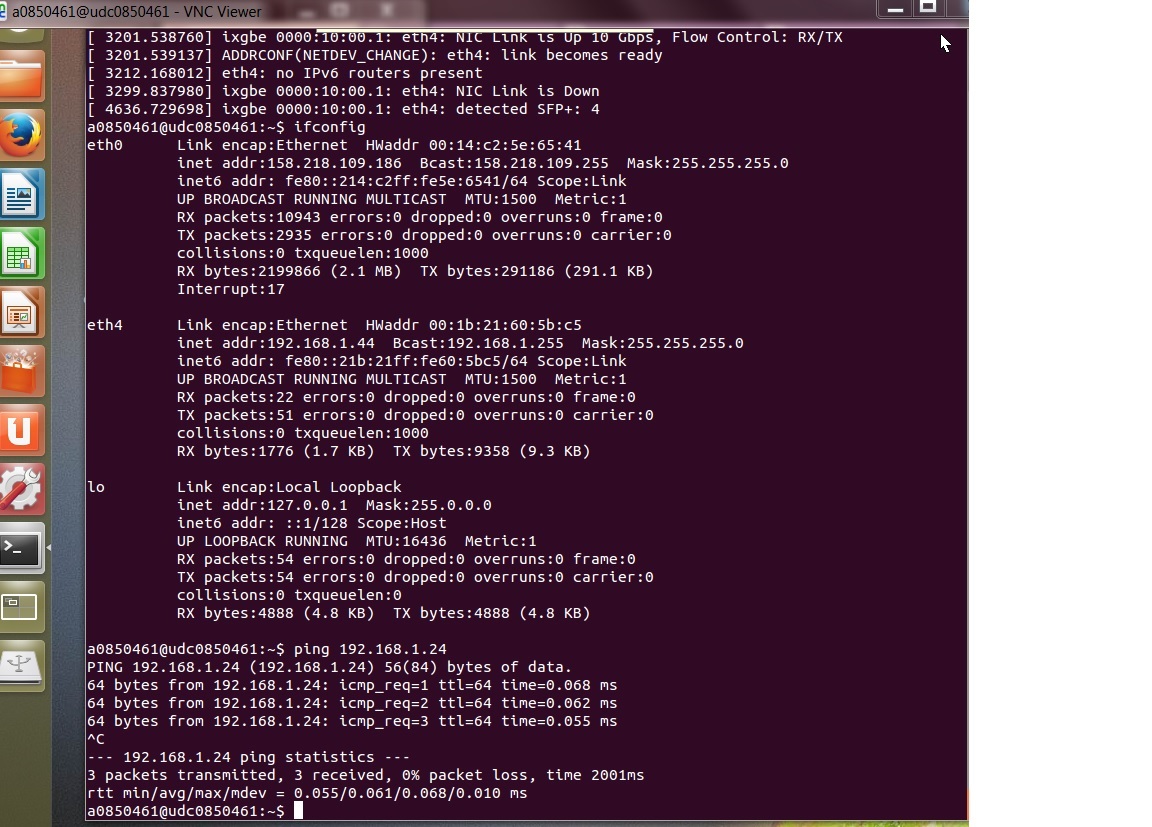

Not to confuse you, I re-ran the K2H XGE using correct filesystem, and correct the ping command which I mistakenly used in prevous log, attached is the K2H console log, and the screenshot from Ubuntu desktop. EVM XGE port 1 IP address 192.168.1.24, and Ubuntu desktop XGE port IP is 192.168.1.44.
U-Boot SPL 2013.01 (Sep 30 2015 - 00:58:09)
SF: Detected N25Q128A with page size 64 KiB, total 16 MiB
U-Boot 2013.01 (Sep 30 2015 - 00:58:09)
I2C: ready
SPD csum OK; in SPD: 19 A7; computed 00000019 A7
DDR3A Speed will be configured for 1333 Operation.
Detected SO-DIMM [SQR-SD3T-2G1333SED]
DDR3 speed 1333
DRAM: 2 GiB (includes reported below)
Reseting entire DDR3 memory to 0 ...
DRAM: 2 GiB
NAND: 512 MiB
Net: K2HK_EMAC, K2HK_EMAC1, K2HK_EMAC2, K2HK_EMAC3, K2HK_XMAC0, K2HK_XMAC1
Hit any key to stop autoboot: 3 2 1 0
BOOTP broadcast 1
DHCP client bound to address 158.218.109.247
Using K2HK_EMAC device
TFTP from server 158.218.109.254; our IP address is 158.218.109.247
Filename 'mcs3147/uImage-k2hk-evm.dtb'.
Load address: 0x87000000
Loading: *###########
1.4 MiB/s
done
Bytes transferred = 55893 (da55 hex)
BOOTP broadcast 1
DHCP client bound to address 158.218.109.247
Using K2HK_EMAC device
TFTP from server 158.218.109.254; our IP address is 158.218.109.247
Filename 'mcs3147/skern-k2hk-evm.bin'.
Load address: 0xc5f0000
Loading: *#########
1.4 MiB/s
done
Bytes transferred = 45056 (b000 hex)
BOOTP broadcast 1
DHCP client bound to address 158.218.109.247
Using K2HK_EMAC device
TFTP from server 158.218.109.254; our IP address is 158.218.109.247
Filename 'mcs3147/uImage-keystone-evm.bin'.
Load address: 0x88000000
Loading: *#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
##################
1.5 MiB/s
done
Bytes transferred = 4083176 (3e4de8 hex)
## installed monitor, freq [200000000], status 0
## Booting kernel from Legacy Image at 88000000 ...
Image Name: Linux-3.10.72-gca334de
Created: 2015-09-30 7:51:42 UTC
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 4083112 Bytes = 3.9 MiB
Load Address: 80008000
Entry Point: 80008000
Verifying Checksum ... OK
## Flattened Device Tree blob at 87000000
Booting using the fdt blob at 0x87000000
Loading Kernel Image ... OK
OK
Using Device Tree in place at 87000000, end 87010a54
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 3.10.72-gca334de (gtbldadm@ubuntu-12) (gcc version 4.7.3 20130226 (prerelease) (crosstool-NG linaro-1.13.1-4.7-2013.03-20130313 - Linaro GCC 2013.03) ) #1 SMP Wed Sep 30 03:51:28 EDT 2015
[ 0.000000] CPU: ARMv7 Processor [412fc0f4] revision 4 (ARMv7), cr=30c7387d
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, PIPT instruction cache
[ 0.000000] Machine: KeyStone2, model: Texas Instruments Keystone 2 SoC
[ 0.000000] switching to high address space at 0x800000000
[ 0.000000] cma: CMA: reserved 16 MiB at 2e800000
[ 0.000000] Memory policy: ECC disabled, Data cache writealloc
[ 0.000000] PERCPU: Embedded 8 pages/cpu @c143f000 s11264 r8192 d13312 u32768
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 391696
[ 0.000000] Kernel command line: console=ttyS0,115200n8 rootwait=1 rootfstype=nfs root=/dev/nfs rw nfsroot=158.218.109.254:/nfs/k2h_fs,v3,tcp,rsize=4096,wsize=4096 ip=dhcp
[ 0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[ 0.000000] Memory: 1536MB = 1536MB total
[ 0.000000] Memory: 1534720k/1534720k available, 38144k reserved, 794624K highmem
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xfff00000 - 0xfffe0000 ( 896 kB)
[ 0.000000] vmalloc : 0xf0000000 - 0xff000000 ( 240 MB)
[ 0.000000] lowmem : 0xc0000000 - 0xef800000 ( 760 MB)
[ 0.000000] pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB)
[ 0.000000] modules : 0xbf000000 - 0xbfe00000 ( 14 MB)
[ 0.000000] .text : 0xc0008000 - 0xc0733c1c (7344 kB)
[ 0.000000] .init : 0xc0734000 - 0xc0786c00 ( 331 kB)
[ 0.000000] .data : 0xc0788000 - 0xc07ea618 ( 394 kB)
[ 0.000000] .bss : 0xc07ea618 - 0xc081c2bc ( 200 kB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] NR_IRQS:16 nr_irqs:16 16
[ 0.000000] ipc irq: irqchip registered, range 512-539
[ 0.000000] Main PLL clk (1200000000 Hz), parent (122880000 Hz),postdiv = 2, mult = 624, prediv = 31
[ 0.000000] Generic PLL clk (1400000000 Hz), parent (125000000 Hz),postdiv = 1, mult = 55, prediv = 4
[ 0.000000] Generic PLL clk (983040000 Hz), parent (122880000 Hz),postdiv = 2, mult = 15, prediv = 0
[ 0.000000] Generic PLL clk (333333333 Hz), parent (100000000 Hz),postdiv = 6, mult = 19, prediv = 0
[ 0.000000] Generic PLL clk (333333333 Hz), parent (100000000 Hz),postdiv = 6, mult = 19, prediv = 0
[ 0.000000] Architected local timer running at 200.00MHz (phys).
[ 0.000000] Switching to timer-based delay loop
[ 0.000000] sched_clock: ARM arch timer >56 bits at 200000kHz, resolution 640/128ns
[ 0.000000] keystone timer clock @200000000 MHz
[ 0.000000] sched_clock: 32 bits at 100 Hz, resolution 10000000ns, wraps every 4294967286ms
[ 0.000000] Console: colour dummy device 80x30
[ 11.493430] Calibrating delay loop (skipped), value calculated using timer frequency.. 400.00 BogoMIPS (lpj=2000000)
[ 11.493438] pid_max: default: 4096 minimum: 301
[ 11.493553] Mount-cache hash table entries: 512
[ 11.501515] CPU: Testing write buffer coherency: ok
[ 11.501673] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[ 11.501682] psci: probing function IDs from device-tree
[ 11.501693] Setting up static identity map for 0xc05117a0 - 0xc05117f8
[ 11.506499] CPU1: Booted secondary processor
[ 11.506525] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[ 11.511110] CPU2: Booted secondary processor
[ 11.511136] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002
[ 11.515714] CPU3: Booted secondary processor
[ 11.515738] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003
[ 11.515809] Brought up 4 CPUs
[ 11.515825] SMP: Total of 4 processors activated (1600.00 BogoMIPS).
[ 11.515829] CPU: All CPU(s) started in SVC mode.
[ 11.516220] devtmpfs: initialized
[ 11.527070] NET: Registered protocol family 16
[ 11.527848] DMA: preallocated 256 KiB pool for atomic coherent allocations
[ 11.538782] No ATAGs?
[ 11.538796] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[ 11.538801] hw-breakpoint: maximum watchpoint size is 8 bytes.
[ 11.547434] bio: create slab <bio-0> at 0
[ 11.547775] keystone-pcie: keystone_pcie_rc_init - start
[ 11.547794] keystone2_pcie_serdes_setup for domain 0
[ 11.549913] keystone2_pcie_serdes_setup done domain 0, en_link_train = 1
[ 11.549939] keystone-pcie: MEM 0x0000000050000000..0x000000005fffffff -> 0x0000000050000000
[ 11.549947] keystone-pcie: IO 0x0000000023250000..0x0000000023253fff -> 0x0000000000000000
[ 11.549973] keystone-pcie: pcie - number of legacy irqs = 4
[ 11.550011] keystone-pcie: pcie - number of MSI host irqs = 8, msi_irqs = 32
[ 11.653297] keystone-pcie: Doing PCI Setup...Done
[ 11.653302] keystone-pcie: Starting PCI scan, nr 0...
[ 11.653405] PCI host bridge to bus 0000:00
[ 11.653414] pci_bus 0000:00: root bus resource [mem 0x50000000-0x5fffffff]
[ 11.653420] pci_bus 0000:00: root bus resource [io 0x0000-0x3fff]
[ 11.653426] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[ 11.653462] PCI: bus0: Fast back to back transfers enabled
[ 11.653476] keystone-pcie: Ending PCI scan...
[ 11.653483] keystone-pcie: keystone_pcie_rc_init - end
[ 11.653710] vgaarb: loaded
[ 11.653980] SCSI subsystem initialized
[ 11.654476] usbcore: registered new interface driver usbfs
[ 11.654544] usbcore: registered new interface driver hub
[ 11.654631] usbcore: registered new device driver usb
[ 11.655580] pps_core: LinuxPPS API ver. 1 registered
[ 11.655585] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 11.655636] PTP clock support registered
[ 11.655755] keystone-hwqueue hwqueue.36: qmgr start queue 0, number of queues 8192
[ 11.655820] keystone-hwqueue hwqueue.36: added qmgr start queue 0, num of queues 8192, reg_peek f0040000, reg_status f0006000, reg_config f0008000, reg_region f000a000, reg_push f0080000, reg_pop f00c0000
[ 11.655827] keystone-hwqueue hwqueue.36: qmgr start queue 8192, number of queues 8192
[ 11.655891] keystone-hwqueue hwqueue.36: added qmgr start queue 8192, num of queues 8192, reg_peek f0100000, reg_status f000c400, reg_config f000e000, reg_region f001a000, reg_push f0140000, reg_pop f0180000
[ 11.656536] keystone-hwqueue hwqueue.36: qos: sched port @8096, drop sched @8000
[ 11.657393] keystone-hwqueue hwqueue.36: qos: sched port @6496, drop sched @6400
[ 11.658185] keystone-hwqueue hwqueue.36: added pool pool-rio: 128 descriptors of size 256
[ 11.658193] keystone-hwqueue hwqueue.36: added pool pool-xge: 1024 descriptors of size 128
[ 11.658201] keystone-hwqueue hwqueue.36: added pool pool-crypto: 1024 descriptors of size 128
[ 11.658209] keystone-hwqueue hwqueue.36: added pool pool-net: 11264 descriptors of size 128
[ 11.658216] keystone-hwqueue hwqueue.36: added pool pool-udma: 1920 descriptors of size 256
[ 11.660393] keystone-hwqueue hwqueue.36: registered queues 0-16383
[ 11.660655] keystone-hwqueue hwqueue.36: qos version 0x200010b, magic valid
[ 11.661132] keystone-hwqueue hwqueue.36: qos version 0x200010b, magic valid
[ 11.667255] keystone-pktdma 2a08000.pktdma: registered 32 logical channels, flows 32, tx chans: 32, rx chans: 32, loopback
[ 11.670289] keystone-pktdma 2004000.pktdma: registered 33 logical channels, flows 32, tx chans: 9, rx chans: 24
[ 11.670734] keystone-pktdma 2fa1000.pktdma: registered 4 logical channels, flows 32, tx chans: 16, rx chans: 16
[ 11.670843] Switching to clocksource arch_sys_counter
[ 11.686370] NET: Registered protocol family 2
[ 11.686789] TCP established hash table entries: 8192 (order: 4, 65536 bytes)
[ 11.686882] TCP bind hash table entries: 8192 (order: 4, 65536 bytes)
[ 11.686975] TCP: Hash tables configured (established 8192 bind 8192)
[ 11.687019] TCP: reno registered
[ 11.687026] UDP hash table entries: 512 (order: 2, 16384 bytes)
[ 11.687047] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[ 11.687198] NET: Registered protocol family 1
[ 11.687342] RPC: Registered named UNIX socket transport module.
[ 11.687347] RPC: Registered udp transport module.
[ 11.687351] RPC: Registered tcp transport module.
[ 11.687354] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 11.687722] hw perfevents: enabled with ARMv7 Cortex-A15 PMU driver, 7 counters available
[ 11.752450] bounce pool size: 64 pages
[ 11.758525] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
[ 11.758669] NTFS driver 2.1.30 [Flags: R/O].
[ 11.758861] jffs2: version 2.2. (NAND) � 2001-2006 Red Hat, Inc.
[ 11.759102] msgmni has been set to 1477
[ 11.759862] NET: Registered protocol family 38
[ 11.760028] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
[ 11.760034] io scheduler noop registered
[ 11.760038] io scheduler deadline registered
[ 11.760133] io scheduler cfq registered (default)
[ 11.761421] keystone-udma udma0.37: registered udma device udma0
[ 11.808275] Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
[ 11.809592] 2530c00.serial: ttyS0 at MMIO 0x2530c00 (irq = 309) is a 16550A
[ 12.659971] console [ttyS0] enabled
[ 12.664001] 2531000.serial: ttyS1 at MMIO 0x2531000 (irq = 312) is a 16550A
[ 12.673549] loop: module loaded
[ 12.676808] at24 0-0050: 131072 byte 24c1024 EEPROM, writable, 1 bytes/write
[ 12.685009] Generic platform RAM MTD, (c) 2004 Simtec Electronics
[ 12.691900] ONFI param page 0 valid
[ 12.695396] ONFI flash detected
[ 12.698544] NAND device: Manufacturer ID: 0x2c, Chip ID: 0xac (Micron MT29F4G08ABBDAHC), 512MiB, page size: 2048, OOB size: 64
[ 12.710215] Bad block table found at page 262080, version 0x01
[ 12.716463] Bad block table found at page 262016, version 0x01
[ 12.722565] 3 ofpart partitions found on MTD device 30000000.nand
[ 12.728675] Creating 3 MTD partitions on "30000000.nand":
[ 12.734096] 0x000000000000-0x000000100000 : "u-boot"
[ 12.739655] 0x000000100000-0x000000180000 : "params"
[ 12.745181] 0x000000180000-0x000020000000 : "ubifs"
[ 12.750733] davinci_nand 30000000.nand: controller rev. 2.5
[ 12.756866] spi_davinci 21000400.spi: master is unqueued, this is deprecated
[ 12.764161] m25p80 spi32766.0: found n25q128a11, expected n25q128
[ 12.770276] m25p80 spi32766.0: n25q128a11 (16384 Kbytes)
[ 12.775619] 2 ofpart partitions found on MTD device spi32766.0
[ 12.781474] Creating 2 MTD partitions on "spi32766.0":
[ 12.786627] 0x000000000000-0x000000080000 : "u-boot-spl"
[ 12.792469] 0x000000080000-0x000001000000 : "test"
[ 12.798021] spi_davinci 21000400.spi: Controller at 0xf007a400
[ 12.804155] spi_davinci 21000600.spi: master is unqueued, this is deprecated
[ 12.811237] spi_davinci 21000600.spi: Controller at 0xf007c600
[ 12.817349] spi_davinci 21000800.spi: master is unqueued, this is deprecated
[ 12.824428] spi_davinci 21000800.spi: Controller at 0xf007e800
[ 12.831183] tun: Universal TUN/TAP device driver, 1.6
[ 12.836248] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[ 12.842908] keystone-netcp 2090000.netcp: number of serdeses 1
[ 12.848770] keystone-netcp 2090000.netcp: Missing cpts_clock_mult property in the DT.
[ 12.856638] keystone-netcp 2090000.netcp: Missing cpts_clock_shift property in the DT.
[ 12.864589] keystone-netcp 2090000.netcp: Missing cpts_clock_div property in the DT.
[ 12.873332] keystone-netcp 2090000.netcp: cpsw serdes 0 config done lanes(mask) 0x3
[ 12.881724] keystone-netcp 2090000.netcp: Created interface "eth0"
[ 12.887929] keystone-netcp 2090000.netcp: dma_chan_name nettx0
[ 12.894469] keystone-netcp 2090000.netcp: Created interface "eth1"
[ 12.900673] keystone-netcp 2090000.netcp: dma_chan_name nettx1
[ 12.907190] keystone-netcp 2090000.netcp: Created interface "eth2"
[ 12.913403] keystone-netcp 2090000.netcp: dma_chan_name nettx2
[ 12.919929] keystone-netcp 2090000.netcp: Created interface "eth3"
[ 12.926142] keystone-netcp 2090000.netcp: dma_chan_name nettx3
[ 12.932155] keystone-netcp 2f00000.netcp: number of serdeses 1
[ 14.067182] XGE: timeout waiting for serdes link up
[ 14.072082] keystone-netcp 2f00000.netcp: cpswx serdes 0 config done lanes(mask) 0x3
[ 14.080215] keystone-netcp 2f00000.netcp: Created interface "eth4"
[ 14.086429] keystone-netcp 2f00000.netcp: dma_chan_name xgetx0
[ 15.221456] XGE: timeout waiting for serdes link up
[ 15.226349] keystone-netcp 2f00000.netcp: cpswx serdes 0 config done lanes(mask) 0x3
[ 15.234469] keystone-netcp 2f00000.netcp: Created interface "eth5"
[ 15.240672] keystone-netcp 2f00000.netcp: dma_chan_name xgetx1
[ 16.376742] XGE: timeout waiting for serdes link up
[ 16.381640] keystone-netcp 2f00000.netcp: cpswx serdes 0 config done lanes(mask) 0x3
[ 16.389449] keystone-netcp 2090000.netcp: pdsp 0 firmware: keystone/pa_pdsp0_classify1.fw
[ 16.397662] keystone-netcp 2090000.netcp: pdsp 1 firmware: keystone/pa_pdsp1_classify1.fw
[ 16.405873] keystone-netcp 2090000.netcp: pdsp 2 firmware: keystone/pa_pdsp2_classify1.fw
[ 16.414087] keystone-netcp 2090000.netcp: pdsp 3 firmware: keystone/pa_pdsp3_classify2.fw
[ 16.422298] keystone-netcp 2090000.netcp: pdsp 4 firmware: keystone/pa_pdsp45_pam.fw
[ 16.430067] keystone-netcp 2090000.netcp: pdsp 5 firmware: keystone/pa_pdsp45_pam.fw
[ 16.437983] keystone-netcp 2090000.netcp: could not find interface 2 node in device tree
[ 16.446109] keystone-netcp 2090000.netcp: Attach of module keystone-qos declined with -19
[ 16.454322] keystone-netcp 2090000.netcp: could not find interface 3 node in device tree
[ 16.462446] keystone-netcp 2090000.netcp: Attach of module keystone-qos declined with -19
[ 16.470665] keystone-netcp 2090000.netcp: Attach of module keystone-sa declined with -19
[ 16.478789] keystone-netcp 2090000.netcp: Attach of module keystone-sa declined with -19
[ 16.487810] dwc3 2690000.dwc3: no usb2 phy configured
[ 16.492895] platform 2690000.dwc3: Driver dwc3 requests probe deferral
[ 16.499856] usbcore: registered new interface driver usb-storage
[ 16.506295] mousedev: PS/2 mouse device common for all mice
[ 16.512076] i2c /dev entries driver
[ 16.516164] watchdog 22f0080.wdt: heartbeat 60 sec
[ 16.531914] keystone-crypto 20c0000.crypto: crypto accelerator enabled
[ 16.538751] usbcore: registered new interface driver usbhid
[ 16.544410] usbhid: USB HID core driver
[ 16.548547] remoteproc0: 2620040.dsp0 is available
[ 16.553446] remoteproc0: Note: remoteproc is still under development and considered experimental.
[ 16.562441] remoteproc0: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.572846] remoteproc0: no firmware found
[ 16.577144] rproc-user 2620040.dsp0: registered misc device dsp0
[ 16.583374] remoteproc1: 2620044.dsp1 is available
[ 16.588263] remoteproc1: Note: remoteproc is still under development and considered experimental.
[ 16.597354] remoteproc1: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.607772] remoteproc1: no firmware found
[ 16.612088] rproc-user 2620044.dsp1: registered misc device dsp1
[ 16.618305] remoteproc2: 2620048.dsp2 is available
[ 16.623206] remoteproc2: Note: remoteproc is still under development and considered experimental.
[ 16.632230] remoteproc2: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.642648] remoteproc2: no firmware found
[ 16.646949] rproc-user 2620048.dsp2: registered misc device dsp2
[ 16.653181] remoteproc3: 262004c.dsp3 is available
[ 16.658071] remoteproc3: Note: remoteproc is still under development and considered experimental.
[ 16.667070] remoteproc3: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.677493] remoteproc3: no firmware found
[ 16.681802] rproc-user 262004c.dsp3: registered misc device dsp3
[ 16.688020] remoteproc4: 2620050.dsp4 is available
[ 16.692921] remoteproc4: Note: remoteproc is still under development and considered experimental.
[ 16.701915] remoteproc4: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.712318] remoteproc4: no firmware found
[ 16.716622] rproc-user 2620050.dsp4: registered misc device dsp4
[ 16.722851] remoteproc5: 2620054.dsp5 is available
[ 16.727742] remoteproc5: Note: remoteproc is still under development and considered experimental.
[ 16.736751] remoteproc5: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.747160] remoteproc5: no firmware found
[ 16.751467] rproc-user 2620054.dsp5: registered misc device dsp5
[ 16.757688] remoteproc6: 2620058.dsp6 is available
[ 16.762587] remoteproc6: Note: remoteproc is still under development and considered experimental.
[ 16.771606] remoteproc6: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.782014] remoteproc6: no firmware found
[ 16.786313] rproc-user 2620058.dsp6: registered misc device dsp6
[ 16.792543] remoteproc7: 262005c.dsp7 is available
[ 16.797433] remoteproc7: Note: remoteproc is still under development and considered experimental.
[ 16.806432] remoteproc7: THE BINARY FORMAT IS NOT YET FINALIZED, and backward compatibility isn't yet guaranteed.
[ 16.816851] remoteproc7: no firmware found
[ 16.821166] rproc-user 262005c.dsp7: registered misc device dsp7
[ 16.827208] rproc-user dspmem.38: kick gpio
[ 16.831526] rproc-user dspmem.38: registered misc device dspmem
[ 16.837753] oprofile: using arm/armv7-ca15
[ 16.841974] ipip: IPv4 over IPv4 tunneling driver
[ 16.847038] gre: GRE over IPv4 demultiplexor driver
[ 16.851952] ip_gre: GRE over IPv4 tunneling driver
[ 16.857415] TCP: cubic registered
[ 16.860736] Initializing XFRM netlink socket
[ 16.865413] NET: Registered protocol family 10
[ 16.870876] NET: Registered protocol family 17
[ 16.875342] NET: Registered protocol family 15
[ 16.879837] Bridge firewalling registered
[ 16.883867] 8021q: 802.1Q VLAN Support v1.8
[ 16.889510] sctp: Hash tables configured (established 65536 bind 65536)
[ 16.896338] NET: Registered protocol family 41
[ 16.900923] VFP support v0.3: implementor 41 architecture 4 part 30 variant f rev 0
[ 16.908618] Registering SWP/SWPB emulation handler
[ 17.115343] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 17.120856] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[ 17.128994] xhci-hcd xhci-hcd.0.auto: irq 425, io mem 0x02690000
[ 17.135083] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002
[ 17.141900] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 17.149145] usb usb1: Product: xHCI Host Controller
[ 17.154039] usb usb1: Manufacturer: Linux 3.10.72-gca334de xhci-hcd
[ 17.160325] usb usb1: SerialNumber: xhci-hcd.0.auto
[ 17.165577] hub 1-0:1.0: USB hub found
[ 17.169340] hub 1-0:1.0: 1 port detected
[ 17.173437] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 17.178943] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[ 17.186689] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003
[ 17.193505] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 17.200749] usb usb2: Product: xHCI Host Controller
[ 17.205644] usb usb2: Manufacturer: Linux 3.10.72-gca334de xhci-hcd
[ 17.211933] usb usb2: SerialNumber: xhci-hcd.0.auto
[ 17.217149] hub 2-0:1.0: USB hub found
[ 17.220921] hub 2-0:1.0: 1 port detected
[ 17.228166] keystone-netcp 2090000.netcp: initializing cpsw version 1.3 (1) SGMII identification value 0x4ed1
[ 17.238230] keystone-netcp 2090000.netcp: Created a cpsw ale engine
[ 17.351157] pps pps0: new PPS source ptp0
[ 17.355186] cpts rftclk rate(600000000 HZ),mult(5120),shift(10),div(3)
[ 17.396700] keystone-netcp 2090000.netcp: Using Packet Accelerator Firmware version 0x03000105
[ 17.405354] keystone-netcp 2090000.netcp: pa_clk_rate(163840000 HZ),mult(25000),shift(12)
[ 17.741197] net eth0: netcp device eth0 opened
[ 17.747838] 8021q: adding VLAN 0 to HW filter on device eth0
[ 17.753969] keystone-netcp 2090000.netcp: initializing cpsw version 1.3 (1) SGMII identification value 0x4ed1
[ 18.181179] net eth1: netcp device eth1 opened
[ 18.186812] 8021q: adding VLAN 0 to HW filter on device eth1
[ 18.192925] keystone-netcp 2090000.netcp: initializing cpsw version 1.3 (1) SGMII identification value 0x4ed1
[ 18.441194] net eth2: netcp device eth2 opened
[ 18.446238] IPv6: ADDRCONF(NETDEV_UP): eth2: link is not ready
[ 18.452130] 8021q: adding VLAN 0 to HW filter on device eth2
[ 18.458220] keystone-netcp 2090000.netcp: initializing cpsw version 1.3 (1) SGMII identification value 0x4ed1
[ 18.701196] net eth3: netcp device eth3 opened
[ 18.706243] IPv6: ADDRCONF(NETDEV_UP): eth3: link is not ready
[ 18.712134] 8021q: adding VLAN 0 to HW filter on device eth3
[ 18.718240] keystone-netcp 2f00000.netcp: initialize cpsw version 1.1 (0) CPSW identification value 0x4ee3
[ 18.728083] keystone-netcp 2f00000.netcp: Created a cpsw ale engine
[ 18.791164] net eth4: netcp device eth4 opened
[ 18.796860] IPv6: ADDRCONF(NETDEV_UP): eth4: link is not ready
[ 18.802739] 8021q: adding VLAN 0 to HW filter on device eth4
[ 18.808818] keystone-netcp 2f00000.netcp: initialize cpsw version 1.1 (0) CPSW identification value 0x4ee3
[ 18.881167] net eth5: netcp device eth5 opened
[ 18.886055] IPv6: ADDRCONF(NETDEV_UP): eth5: link is not ready
[ 18.891912] 8021q: adding VLAN 0 to HW filter on device eth5
[ 18.897629] IP-Config: Failed to open gretap0
[ 18.902034] IPv6: ADDRCONF(NETDEV_CHANGE): eth4: link becomes ready
[ 18.910898] IPv6: ADDRCONF(NETDEV_CHANGE): eth5: link becomes ready
[ 18.920895] Sending DHCP requests ., OK
[ 19.030896] IP-Config: Got DHCP answer from 158.218.109.3, my address is 158.218.109.247
[ 24.021146] IP-Config: Complete:
[ 24.024384] device=eth0, hwaddr=b4:99:4c:9f:7f:90, ipaddr=158.218.109.247, mask=255.255.255.0, gw=158.218.109.1
[ 24.034951] host=dhcp-158-218-109-247, domain=am.dhcp.ti.com, nis-domain=(none)
[ 24.042727] bootserver=0.0.0.0, rootserver=158.218.109.254, rootpath=
[ 24.049448] nameserver0=192.0.2.2, nameserver1=192.0.2.3
[ 24.059372] VFS: Mounted root (nfs filesystem) on device 0:12.
[ 24.065432] devtmpfs: mounted
[ 24.068535] Freeing unused kernel memory: 328K (c0734000 - c0786000)
INIT: version 2.88 booting
Starting udev
[ 24.713635] udevd[1378]: starting version 182
[ 24.841571] temperature_kmodule: Unknown symbol hwmon_device_register (err 0)
[ 24.848784] temperature_kmodule: Unknown symbol hwmon_device_unregister (err 0)
[ 24.954775] uio_module_drv mpax.4: registered misc device mpax
[ 24.962593] uio_module_drv edma3.5: registered misc device edma3
[ 24.988124] uio_module_drv secmgr.6: registered misc device secmgr
[ 24.995163] uio_module_drv qmss.7: registered misc device qmss
[ 25.007029] uio_module_drv hyperlink0.41: registered misc device hyperlink0
[ 25.021629] uio_module_drv hyperlink1.42: registered misc device hyperlink1
[ 25.028829] uio_module_drv srio.43: registered misc device srio
[ 25.082558] temperature_kmodule: Unknown symbol hwmon_device_register (err 0)
[ 25.089780] temperature_kmodule: Unknown symbol hwmon_device_unregister (err 0)
[ 25.286966] CMEMK module: built on Sep 30 2015 at 00:40:48
[ 25.292633] Reference Linux version 3.10.72
[ 25.298706] no physical memory specified
[ 25.302676] cmemk initialized
Starting Bootlog daemon: bootlogd.
net.ipv4.conf.default.rp_filter = 1
net.ipv4.conf.all.rp_filter = 1
Thu Oct 1 00:03:00 UTC 2015
INIT: Entering runlevel: 5
NOT configuring network interfaces: / is an NFS mount
Starting system message bus: dbus.
Removing existing CMEMK module[ 25.946228] cmemk unregistered
Inserting CMEMK module[ 25.955587] CMEMK module: built on Sep 30 2015 at 00:40:48
[ 25.961105] Reference Linux version 3.10.72
[ 25.965656] CMEMK Error: Failed to request_mem_region(0x829000000, 0x57000000)
modprobe: ERROR: could not insert 'cmemk': Bad address
.
Starting Dropbear SSH server: dropbear.
cppi library link established for device : k2hk
hyplnk library link established for device : k2hk
PA library link established for device : k2hk
qmss library link established for device : k2hk
Starting mpmsrv daemon.
Starting rmsrv daemonStarting /usr/bin/rmServer.out
Daemon returned 0 as return value.
.
platform: k2hk-evm
Starting softhsm daemon.
Starting telnet daemon.
Starting tiipclad daemon
GateMP is not supported for this device
Opened log file: lad.txt
numProcessors = 9 id = 0 baseId = 0
Spawned daemon: /usr/bin/lad_tci6638
.
UDEV trigger to register devices opened before udev came up
[ 27.384457] temperature_kmodule: Unknown symbol hwmon_device_register (err 0)
[ 27.391671] temperature_kmodule: Unknown symbol hwmon_device_unregister (err 0)
Starting rpcbind daemon...done.
creating NFS state directory: done
starting statd: done
Enabling Hyperlink Txtransport open_tx_only succeeded for arm-remote-hyplnk-0
Starting thttpd.
Starting Lighttpd Web Server: lighttpd.
2015-10-01 00:03:02: (/home/gtbldadm/yocto/mcsdk-3_01_04_07/oe-layersetup-mcsdk/build/arago-tmp-external-linaro-toolchain/work/cortexa15t2hf-vfp-neon-linux-gnueabi/lighttpd/1.4.33-r1/lighttpd-1.4.33/src/log.c.166) server started
* starting FTP Server: vsftpd... done.
#>>>>> LCD 12
IP Address:
158.218.109.247
Enabling thermal zones...
/etc/rc5.d/S98thermal-zone-init: line 7: /sys/class/thermal/thermal_zone*/mode: No such file or directory
***************************************************************
***************************************************************
NOTICE: This file system contains the following GPLv3 packages:
autoconf
binutils-dev
binutils
bison-dev
bison
coreutils-dev
coreutils
cpp-symlinks
cpp
g++-symlinks
g++
gawk-common
gawk-dev
gawk
gcc-symlinks
gcc
gdb
gdbc6x
gdbserver
libgmp-dev
libgmp10
libgmpxx4
libmpc3
libmpfr4
make
If you do not wish to distribute GPLv3 components please remove
the above packages prior to distribution. This can be done using
the opkg remove command. i.e.:
opkg remove <package>
Where <package> is the name printed in the list above
NOTE: If the package is a dependency of another package you
will be notified of the dependent packages. You should
use the --force-removal-of-dependent-packages option to
also remove the dependent packages as well
***************************************************************
***************************************************************
Stopping Bootlog daemon: bootlogd.
_____ _____ _ _
| _ |___ ___ ___ ___ | _ |___ ___ |_|___ ___| |_
| | _| .'| . | . | | __| _| . | | | -_| _| _|
|__|__|_| |__,|_ |___| |__| |_| |___|_| |___|___|_|
|___| |___|
Arago Project http://arago-project.org k2hk-evm /dev/ttyS0
Arago 2015.05 k2hk-evm /dev/ttyS0
k2hk-evm login: root
root@k2hk-evm:~# ifconfig -a
eth0 Link encap:Ethernet HWaddr B4:99:4C:9F:7F:90
inet addr:158.218.109.247 Bcast:158.218.109.255 Mask:255.255.255.0
inet6 addr: fe80::b499:4c00:19f:7f90/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:20106 errors:0 dropped:0 overruns:0 frame:0
TX packets:18706 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:18030409 (17.1 MiB) TX bytes:2881168 (2.7 MiB)
eth1 Link encap:Ethernet HWaddr 72:E0:61:5D:A6:80
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:168 (168.0 B)
eth2 Link encap:Ethernet HWaddr 06:E9:7C:EF:33:90
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
eth3 Link encap:Ethernet HWaddr 6E:78:AB:CB:F5:31
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
eth4 Link encap:Ethernet HWaddr E6:AD:44:17:37:7B
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:3 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:238 (238.0 B)
eth5 Link encap:Ethernet HWaddr 02:20:4E:48:B6:7C
BROADCAST MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:4 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:328 (328.0 B)
gre0 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
NOARP MTU:1476 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
gretap0 Link encap:Ethernet HWaddr 00:00:00:00:00:00
BROADCAST MULTICAST MTU:1476 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
ip6tnl0 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
NOARP MTU:1452 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:14 errors:0 dropped:0 overruns:0 frame:0
TX packets:14 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:972 (972.0 B) TX bytes:972 (972.0 B)
tunl0 Link encap:UNSPEC HWaddr 00-00-00-00-30-30-30-30-00-00-00-00-00-00-00-00
NOARP MTU:0 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
root@k2hk-evm:~# ifconfig eth4 192.168.1.24
[ 46.794905] keystone-netcp 2f00000.netcp: initialize cpsw version 1.1 (0) CPSW identification value 0x4ee3
[ 46.804792] keystone-netcp 2f00000.netcp: Created a cpsw ale engine
[ 46.891161] net eth4: netcp device eth4 opened
[ 46.896496] IPv6: ADDRCONF(NETDEV_UP): eth4: link is not ready
[ 46.902361] 8021q: adding VLAN 0 to HW filter on device eth4
root@k2hk-evm:~# [ 46.910921] IPv6: ADDRCONF(NETDEV_CHANGE): eth4: link becomes ready
root@k2hk-evm:~# ping 192.168.1.44
PING 192.168.1.44 (192.168.1.44): 56 data bytes
64 bytes from 192.168.1.44: seq=0 ttl=64 time=0.173 ms
64 bytes from 192.168.1.44: seq=1 ttl=64 time=0.080 ms
64 bytes from 192.168.1.44: seq=2 ttl=64 time=0.078 ms
64 bytes from 192.168.1.44: seq=3 ttl=64 time=0.079 ms
^C
--- 192.168.1.44 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 0.078/0.102/0.173 ms
root@k2hk-evm:~#
Rex
