66AK2H06: AMC edge connector pin allocation of EVM

Guru 15510 points
Part Number: 66AK2H06
Other Parts Discussed in Thread: TMS320C6678

Hi,

I have a question about KeystoneI and KeystoneII EVM.

I want to know the pin allocation of AMC edge connector.

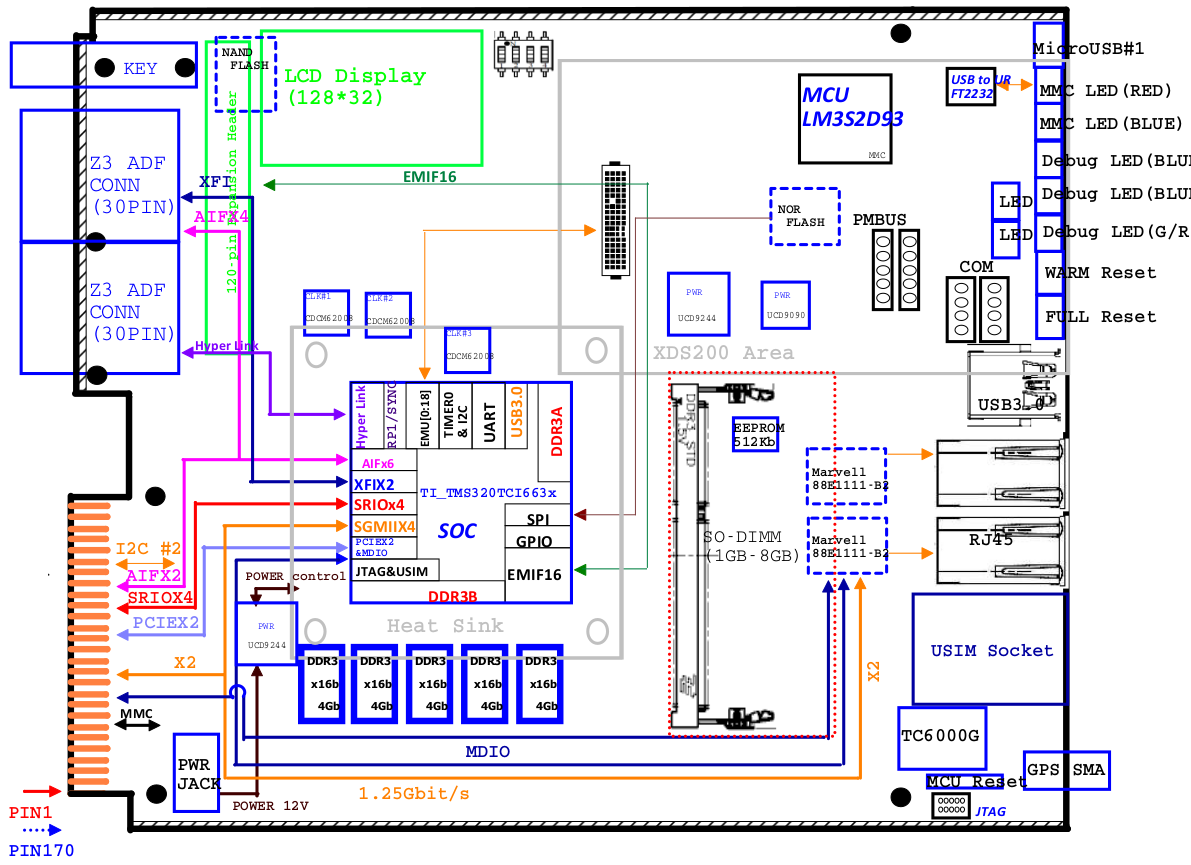

Where are AMC #1 pin and #170 pin of C6678EVM and EVMK2H?
Are AMC #1 pin of C6678EVM located at frontside of board and #170 pin located at backside of board?
Are EVMK2H AMC pins allocation same as C6678EVM?

Please take a look at attached file.

best regards,
g.f.

AMC edge connector of EVM.pdf
