set SPI[0]_CS[3] output high

Hi Pavel,

After entering linux,The chip_select pin SPI[0]_CS[3] is always low.But I want to set it to high.

How to do ?Configure which register , And where ?Thank you .

BR

Bob

  • Bob,

    I will have a look on your questions and provide you me feedback when I have something.

    Regards,
    Pavel

  • Hi Pavel,

    I have double checked the pinmux and it is right.

    root@dm814x-evm:/mnt/omap_mux# cat uart0_dcdn
    name: uart0_dcdn.spi0_cs3 (0x48140924/0x924 = 0x20010), b NA, t NA
    mode: OMAP_PIN_OUTPUT | OMAP_MUX_MODE0
    signals: uart0_dcdn | uart3_rxd_mux0 | NA | NA | spi0_cs3 | i2c2_scl_mux0 | mmc1_pow | gpio1_2

    BR

    Bob



  • Bob,

    The SPI chip select 3 is active low, which means that when it is low, you have selected the slave device connected on this chip select. Do you want to unselect/disable the slave device connected to SPI chip select 3?

    Regards,
    Pavel

  • Bob,

    bob lee said:
    0x48140924/0x924 = 0x20010

    Make sure you are aligned with the DM814x Silicon Errata, advisory 2.1.87 and 2.1.88.

    Regards,
    Pavel

  • Hi Pavel,

    It will be active low in order to select the chip when we read/write SPI device.

    Now it is ok now after add the below code to the struct ti8148_spi_slave_info[].

     {
      .modalias = "spidev",
      .irq  = -1,
      .max_speed_hz = 500000,
      .bus_num = 1,
      .chip_select = 3,
      .mode = SPI_MODE_3,
     },

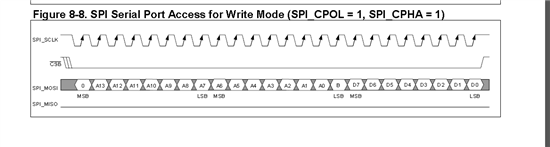

    I try to read/write DS26521 chip now.But I don't know how to do.

    f



    w

    Would you give me some suggestions ? Thank you very much.

    BR

    Bob

  • Hi Pavel,

    For example,if I want to read DS26521 chip ID,but how to send the command to the chip ?

    I find the Device Identification register (IDR) is 0x0F8 and "1" stands for read.

    So I could send 0x10F8 to the register.Is it right?

    BR

    Bob

  • Bob,

    bob lee said:

    The chip_select pin SPI[0]_CS[3] is always low.But I want to set it to high.

    How to do ?Configure which register

    Have you tried to disable the channel associated with the chip select signal?

    See DM814x TRM:

    22.2.2.3.3 Programmable SPI Enable (SPI_SCS[n])
    The polarity of the SPI_SCS[n] signals is programmable. SPI_SCS[n] signals can be active high or low.
    The assertion of the SPI_SCS[n] signals is programmable: SPI_SCS[n] signals can be manually asserted
    or can be automatically asserted.

    22.2.3.1 Dedicated Resources Per Channel
    – SPI_SCS[n] polarity, programmable with the bit EPOL.
    – SPI_SCS[n] kept active between words, programmable with the bit FORCE.

    The configuration parameters SPI_SCS[n] polarity, Turbo mode, SPI_SCLK phase and SPI_SCLK polarity can be loaded in the (I)CONF register only when the channel is disabled.

    22.2.3.6.2 Keep SPI_SCS[n] Active Mode (Force SPI_SCS[n])

    Continuous transfers are manually allowed by keeping the SPI_SCS[n] signal active for successive SPI words transfer. Several sequences (configuration/enable/disable of the channel) can be run without deactivating the SPI_SCS[n] line.

    The state of the SPI_SCS[n] signal is programmable.
    – Writing 1 into the bit FORCE of the register MCSPI_CH(I)CONF drives high the SPI_SCS[n] line when MCSPI_CHCONF(I)[EPOL] is cleared to 0, and drives it low when MCSPI_CHCONF(I)[EPOL] is set.
    – Writing 0 into the bit FORCE of the register MCSPI_CH(I)CONF drives low the SPI_SCS[n] line when MCSPI_CHCONF(I)[EPOL] is cleared to 0, and drives it high when MCSPI_CHCONF(I)[EPOL] is set.

    A single channel is enabled (MCSPI_CH(I)CTRL[En] set to 1) . The first enabled channel activates the
    SPI_SCS[n] line.

    Once the channel is enabled, the SPI_SCS[n] signal is activated with the programmed polarity.

    At the end of the last SPI word, the channel must be deactivated (MCSPI_CH(I)CTRL[En] is cleared to 0)
    and the SPI_SCS[n] can be forced to its inactive state (MCSPI_CH(I)CONF[Force]).


    Regards,
    Pavel

  • Bob,

    bob lee said:
    It will be active low in order to select the chip when we read/write SPI device

    Correct.



    bob lee said:
    I try to read/write DS26521 chip now.

    Refer to the below resources for examples:

    /drivers/mtd/devices/m25p80.c

    /drivers/spi/omap2_mcspi.c

    /Documentation/spi/spi-summary spidev spidev_test.c spidev_fdx.c

    http://e2e.ti.com/support/dsp/davinci_digital_media_processors/f/716/t/297161.aspx

    http://e2e.ti.com/support/embedded/linux/f/354/t/373988.aspx

    http://e2e.ti.com/support/embedded/linux/f/354/t/158070.aspx

    Regards,
    Pavel
