v4l2 Capture pipelines on 8168 EVM using EZSDK (version 5_03_01_15)

Amol Natekar

Other Parts Discussed in Thread: TVP7002, TVP5147, TVP5150, THS7303, TVP5151

Hi,

Is it possible to capture and encode audio/video using v4l2 capture module and gstreamer on 8168 EVM. We were able to load the v4l2 firmwares as described in the following thread

http://e2e.ti.com/support/dsp/davinci_digital_media_processors/f/717/t/153145.aspx

However we could not run the capture pipelines as described on the wiki for 8168:

http://processors.wiki.ti.com/index.php/DM81xx_Gstreamer_Pipelines#Capture_Pipelines

Is there any document describing the steps required for capture and encode of Audio/video.

Thanks,

Amol

over 12 years ago

0 Satish Arora over 12 years ago

TI__Intellectual 755 points

Gstreamer release (version 0.3) packaged in EZSDK version 5.03.01.15 doesn't support V4L2 src element. You will have to upgrade to gstreamer release version 0.4 from gstreamer.ti.com on your EZSDK to use V4L2 src. Find details to download and upgrade at http://processors.wiki.ti.com/index.php/DM81xx_Gstreamer_Plugin#Download

Thanks,

Satish

Please mark this post as answered via the Verify Answer button below if you think it answers your question. Thanks!

0 Amol Natekar over 12 years ago in reply to Satish Arora

Intellectual 440 points

Hello Satish,

I tried with gstreamer tag "TAG_GST_DM81XX_00_04_00_00" but it didn't work as well. Can I run the pipeline as below to do a loopback of the captured video over HDMI:

gst-launch v4l2src always-copy=false queue-size=11 ! 'video/x-raw-yuv-strided,format=(fourcc)YUY2,width=1280,height=720,framerate=(fraction)60/1' ! omx_ctrl display-mode=OMX_DC_MODE_1080P_60 ! omx_videosink sync=false

Please provide sample pipeline for the same if possible.

Thanks,

Amol

0 Satish Arora over 12 years ago in reply to Amol Natekar

TI__Intellectual 755 points

Here is a loopback pipeline that you can try...

Thanks

Satish

0 Amol Natekar over 12 years ago in reply to Satish Arora

Intellectual 440 points

Hi Satish,

Did the above pipeline work at your end? I tried the same at my side but no luck. The omxbufferalloc element is not present in the tag version of the gstreamer we are using. Can you let us know the release with which you tested the above pipeline?

Thanks.

Amol

0 Satish Arora over 12 years ago in reply to Amol Natekar

TI__Intellectual 755 points

Hi Anmol,

As I suggested in the earlier post you need to use the gstreamer release 0.4 (i.e. - TAG_GST_DM81XX_00_04_00_00), that version of gstreamer has the omxbufferalloc element and other patches required for V4l2src to work.

Thanks,

Satish

0 Amol Natekar over 12 years ago in reply to Satish Arora

Intellectual 440 points

Hi Satish,

I got the capture working with the 0.4 release. However I have few queries regarding the V4l2src module:

1) I am trying to capture a 640x480 resolution video and display it on HDMI. How would i use the scaler to provide a full screen display if my output resolution is 1080p60. (I tried to use the omx_scaler element but couldn't do it with v4l2src).

2) I tried encoding the captured video using the following pipeline

gst-launch-0.10 v4l2src always-copy=false queue-size=12 num-buffers=2000 ! 'video/x-raw-yuv-strided,format=(fourcc)NV12,width=1280,height=720,framerate=(fraction)60/1' ! omxbufferalloc numBuffers=12 ! omx_h264enc bitrate=5000000 ! gstperf ! filesink location=v4l2cap.h264

The gstreamer crashed. Logs for the same are attached herewith for your reference.

0638.logs.txt

gst-launch-0.10  v4l2src always-copy=false queue-size=12 num-buffers=2000 ! 'video/x-raw-yuv-strided,format=(fourcc)NV12,width=1280,height=720,framerate=(fraction)60/1' ! omxbufferalloc numBuffers=12 ! omx_h264enc bitrate=5000000 ! gstperf ! filesink location=v4l2cap.h264
Setting pipeline to PAUSED ...

 Mode set is 1
allocating 12 buffers of size:1382400!!
allocated outbuf:0x43eb4080
allocated outbuf:0x44005880
allocated outbuf:0x44157080
allocated outbuf:0x442a8880
allocated outbuf:0x443fa080
allocated outbuf:0x4454b880
allocated outbuf:0x4469d080
allocated outbuf:0x447ee880
allocated outbuf:0x44940080
allocated outbuf:0x44a91880
allocated outbuf:0x44be3080
allocated outbuf:0x44d34880
Pipeline is live and does not need PREROLL ...
Setting pipeline to PLAYING ...
New clock: GstSystemClock
VPSS_FVID2: queue timeout
kernel BUG at drivers/media/video/ti81xx/ti81xxvin_main.c:829!
Unable to handle kernel NULL pointer dereference at virtual address 00000000
pgd = c0f4c000
[00000000] *pgd=80f61031, *pte=00000000, *ppte=00000000
Internal error: Oops: 817 [#1]
last sysfs file: /sys/devices/platform/vpss/graphics0/enabled
Modules linked in: bufferclass_ti omaplfb pvrsrvkm ti81xxhdmi ti81xxvin tvp7002 ti81xxvo ti81xxfb vpss syslink ipv6
CPU: 0    Tainted: G        W    (2.6.37 #1)
PC is at __bug+0x20/0x2c
LR is at release_console_sem+0x198/0x1ac
pc : [<c00488d4>]    lr : [<c006c670>]    psr: 20000013
sp : c46e5b90  ip : c46e5ac8  fp : c46e5b9c
r10: 00000000  r9 : c46e5e08  r8 : c46e5e08
r7 : c379c104  r6 : c0f24b80  r5 : c379c000  r4 : c43eb400
r3 : 00000000  r2 : 00000001  r1 : 0000a058  r0 : 00000045
Flags: nzCv  IRQs on  FIQs on  Mode SVC_32  ISA ARM  Segment user
Control: 10c5387d  Table: 80f4c019  DAC: 00000015
Process gst-launch-0.10 (pid: 1461, stack limit = 0xc46e42e8)
Stack: (0xc46e5b90 to 0xc46e6000)
5b80:                                     c46e5bbc c46e5ba0 bf1cb1dc c00488c0
5ba0: c0f24b80 20000013 00000000 c379c104 c46e5be4 c46e5bc0 c0284390 bf1cb138
5bc0: 00000001 c379c000 c4b41300 c46e5e08 bf1cc404 c46e5e08 c46e5c4c c46e5be8
5be0: bf1caf24 c0284020 00000000 00000009 00000001 00000000 00000000 00000000
5c00: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000002
5c20: 44a91880 00000000 00000000 00000000 bf1cae8c 00000000 c044560f c37e6200
5c40: c46e5df4 c46e5c50 c02790bc bf1cae98 003fdb70 00000000 003e8060 00000000
5c60: 0040d398 00000000 003e8c80 00000001 005abf20 003e8b90 00000000 00000000
5c80: 0040d358 003e8c60 c46e5cb4 c46e5c98 c00c04d8 c00be4f8 00000013 c4b41080
5ca0: c02d9d58 00000001 c46e5cd4 c46e5cb8 c00c1874 c00c046c 00000000 00000101
5cc0: 00000024 00000001 c46e5ce4 c46e5cd8 c04b4c98 c04b4cb8 37acb24b 00000002
5ce0: 00000000 00000000 c46e5d1c c46e5cf8 c0068538 c0193550 c4bdd384 c4bdc000
5d00: c04b4c50 00000001 c04b4c98 c04b4cb8 37acb24b 00000002 00000000 00000000
5d20: c46e5d54 c46e5d30 c0068538 c0193550 c4bdd384 c4a6f8c0 c4bdd340 c4bdd340
5d40: 00000000 00000000 fffffffd 00000000 c46e5d84 c46e5d60 c036fa0c c0040170
5d60: c3af401c c4bdd340 00000015 c4a6f8c0 c46e4000 c044560f c4bbfd80 c4b41300
5d80: c036fa6c c036f9e4 00000000 c46e5d98 c46e5db4 c46e5da0 c036fa94 c036fa5c
5da0: c0fe3000 c4bdd340 c46e5ddc c46e5db8 c036c194 c00698d0 c46e4000 7fffffff
5dc0: c893c010 7fffffff c893c004 00000044 00000000 c044560f 00000000 00000000
5de0: 00000000 c46e5e08 c46e5eb4 c46e5df8 c0277b58 c0277d74 c0277d68 000b7e40
5e00: c4bbfd80 00000003 00000009 00000001 00000000 00000000 00000000 00000000
5e20: 00000000 00000000 00000000 00000000 00000000 00000000 00000002 44a91880
5e40: 00000000 00000000 00000000 c46e5e58 bf0743b0 bf0727a4 bf074450 bf0726f0
5e60: bf086910 c8abe000 00000000 ce005300 c46e5ea4 c46e5e80 bf081234 bf0726f0
5e80: 00000000 c018f361 40145d50 c4bbfd80 000b7e40 bf1cd228 c044560f 000b7e40
5ea0: c46e4000 00000000 c46e5ecc c46e5eb8 c0277ccc c0277880 c4bbfd80 c37e6200
5ec0: c46e5ef4 c46e5ed0 c0276d0c c0277ca8 00000000 c4bbfd80 0000001d 0000001d
5ee0: 000b7e40 c46e4000 c46e5f04 c46e5ef8 c00d10e4 c0276c30 c46e5f74 c46e5f08
5f00: c00d17f4 c00d10c8 0013f000 c0fe3000 00000d74 00000000 003ea100 0013fd70
5f20: 04000001 0013fd70 00000001 00000000 0013fd74 00000081 c46e5fa4 c46e5f48
5f40: c0092c24 c0092044 00000001 00000000 000b7e40 c044560f 0000001d c4bbfd80
5f60: c46e4000 00000000 c46e5fa4 c46e5f78 c00d188c c00d1300 00000000 00000001
5f80: 04000001 00000009 0000034c 4050b2d0 00000036 c0044f48 00000000 c46e5fa8
5fa0: c0044da0 c00d1840 00000009 0000034c 0000001d c044560f 000b7e40 44a91880
5fc0: 00000009 0000034c 4050b2d0 00000036 0010d620 bed33d04 0000034c 40145c2c
5fe0: 000b7de8 40145a70 404f0590 403caaec 60000010 0000001d 00000000 00000101
Backtrace:
[<c00488b4>] (__bug+0x0/0x2c) from [<bf1cb1dc>] (ti81xxvin_buffer_queue+0xb0/0xe8 [ti81xxvin])
[<bf1cb12c>] (ti81xxvin_buffer_queue+0x0/0xe8 [ti81xxvin]) from [<c0284390>] (videobuf_qbuf+0x37c/0x43c)
 r7:c379c104 r6:00000000 r5:20000013 r4:c0f24b80
[<c0284014>] (videobuf_qbuf+0x0/0x43c) from [<bf1caf24>] (vidioc_qbuf+0x98/0xb4 [ti81xxvin])
 r9:c46e5e08 r8:bf1cc404 r7:c46e5e08 r6:c4b41300 r5:c379c000
r4:00000001
[<bf1cae8c>] (vidioc_qbuf+0x0/0xb4 [ti81xxvin]) from [<c02790bc>] (__video_do_ioctl+0x1354/0x3f34)
 r7:c37e6200 r6:c044560f r5:00000000 r4:bf1cae8c
[<c0277d68>] (__video_do_ioctl+0x0/0x3f34) from [<c0277b58>] (__video_usercopy+0x2e4/0x428)
[<c0277874>] (__video_usercopy+0x0/0x428) from [<c0277ccc>] (video_ioctl2+0x30/0x38)
[<c0277c9c>] (video_ioctl2+0x0/0x38) from [<c0276d0c>] (v4l2_ioctl+0xe8/0x11c)
 r5:c37e6200 r4:c4bbfd80
[<c0276c24>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
 r9:c46e4000 r8:000b7e40 r7:0000001d r6:0000001d r5:c4bbfd80
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
 r8:c0044f48 r7:00000036 r6:4050b2d0 r5:0000034c r4:00000009
Code: e1a01000 e59f000c eb0c8c61 e3a03000 (e5833000)
---[ end trace 58eb0402ed7038ed ]---

Is it also possible to capture audio using gstreamer. Can you provide some example pipelines for the same as well.

Thanks.

Amol

0 Robin Aproskie over 12 years ago in reply to Amol Natekar

Prodigy 240 points

....Need some help as well here please

I would like to split the Captured video and display it on the HDMI , and stream it.

I have each scenario working separately

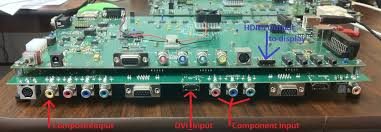

A. Capture and display locally on HDMI: (because I am capturing on the Component using a sony camera 1080i50 the fps is 25 buy this still works)

gst-launch -v v4l2src device="/dev/video0" always-copy=false queue-size=11 ! 'video/x-raw-yuv-strided,format=(fourcc)YUY2,width=1920,height=1080,framerate=(fraction)60/1' ! omxbufferalloc numBuffers=11 ! gstperf ! v4l2sink device="/dev/video1" show-preroll-frame=false sync=false min-queued-bufs=2

B. Stream the Capture over RTP/UDP

gst-launch v4l2src always-copy=false queue-size=12 ! 'video/x-raw-yuv-strided,format=(fourcc)YUY2,width=1920,height=1080,framerate=(fraction)60/1' ! omxbufferalloc numBuffers=12 ! omx_noisefilter ! omx_h264enc force-idr-period=300 i-period=100 bitrate=12000000 ! h264parse ! rtph264pay ! udpsink host=172.17.25.230 port=1234

I have used the testsrc to stream and display locally using this also with a time overlay (this works).

gst-launch -v videotestsrc !'video/x-raw-yuv, width=(int)640, height=(int)480' ! timeoverlay halign=left valign=bottom text="Stream time:" shaded-background=true ! tee name=t ! omx_scaler ! 'video/x-raw-yuv,width=1920,height=1080' ! v4l2sink show-preroll-frame=false sync=false min-queued-bufs=2 t. ! omx_h264enc ! h264parse ! rtph264pay ! udpsink host=172.17.25.70 port=1234

C. My script that does not work (I have moved the t. around and used Queue but to no success aswell )

gst-launch v4l2src device="/dev/video0" always-copy=false queue-size=12 ! 'video/x-raw-yuv-strided,format=(fourcc)YUY2,width=1920,height=1080,framerate=(fraction)60/1' ! tee name=t t.! omxbufferalloc numBuffers=12 ! gstperf ! v4l2sink device="/dev/video1" show-preroll-frame=false sync=false min-queued-bufs=2 t. ! omxbufferalloc numBuffers=12 ! omx_noisefilter ! omx_h264enc force-idr-period=300 i-period=100 bitrate=12000000 ! h264parse ! rtph264pay ! udpsink host=172.17.25.230 port=1234

Additional info

Using Tag 00.04. Gstreamer

Using EZSDK 5.03.01.15

Using the V4L startup in rc5.d to load the correct .ko drivers

Setting up my Videos like so :

echo 0 > /sys/devices/platform/vpss/display0/enabled
echo 0 > /sys/devices/platform/vpss/video0/enabled
echo 0 > /sys/devices/platform/vpss/graphics0/enabled
echo 1:dvo2 > /sys/devices/platform/vpss/graphics0/nodes
echo hdcompmux:hdmi > /sys/devices/platform/vpss/video1/nodes
echo 1 > /sys/devices/platform/vpss/graphics0/enabled
echo 1 > /sys/devices/platform/vpss/video0/enabled

Out put trace

VPSS_DCTRL: failed to disable the venc.
VPSS_DCTRL: failed to disable hdmi venc
VPSS_VIDEO: please open /dev/video1 node first.
VPSS_VIDEO: please open /dev/video1 node first.
Setting pipeline to PAUSED ...

** (gst-launch-0.10:1448): CRITICAL **: gst_v4l2sink_sync_rotation: assertion `v4l2_ioctl (fd, VIDIOC_S_CTRL, &control) >= 0' failed

** (gst-launch-0.10:1448): CRITICAL **: gst_v4l2sink_sync_rotation: assertion `v4l2_ioctl (fd, VIDIOC_S_CTRL, &control) >= 0' failed

** (gst-launch-0.10:1448): CRITICAL **: gst_v4l2sink_sync_flip: assertion `v4l2_ioctl (fd, VIDIOC_S_CTRL, &control) >= 0' failed
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9504 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
VPSS_CAPTURE: height(1) can't be odd for YUV420 format!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9504 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
VPSS_CAPTURE: height(1) can't be odd for YUV420 format!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9504 r4:0000c000
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00008000
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9504 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
VPSS_CAPTURE: height(1) can't be odd for YUV420 format!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9504 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
VPSS_CAPTURE: height(1) can't be odd for YUV420 format!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9504 r4:0000c000
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00008000
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00008000
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00008000
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00008000
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00008000
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00008000
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000001 r4:00008000
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00000001
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00000001
VPSS_CAPTURE: width(1) can't be odd!!
Division by zero in kernel.
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000001 r6:00000000 r5:c78e9604 r4:00008000
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c004934c>] (__div0+0x18/0x20)
[<c0049334>] (__div0+0x0/0x20) from [<c018d984>] (Ldiv0+0x8/0x10)
[<bf1c9ce0>] (ti81xxvin_check_format+0x0/0x31c [ti81xxvin]) from [<bf1ca018>] (vidioc_try_fmt_vid_cap+0x1c/0x20 [ti81xxvin])
[<bf1c9ffc>] (vidioc_try_fmt_vid_cap+0x0/0x20 [ti81xxvin]) from [<c027af94>] (__video_do_ioctl+0xe48/0x3f34)
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:beab8eec r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:0000001e r5:00000002 r4:00008000

Mode set is 12
allocating 6 buffers of size:4147200!!
allocated outbuf:0x44e23080
allocated outbuf:0x45217880------------[ cut here ]------------
WARNING: at kernel/softirq.c:159 local_bh_enable+0x54/0xc4()
Modules linked in: bufferclass_ti omaplfb pvrsrvkm ti81xxhdmi ti81xxvin tvp7002 ti81xxvo ti81xxfb vpss syslink ipv6
Backtrace:
[<c0048b58>] (dump_backtrace+0x0/0x110) from [<c036dcbc>] (dump_stack+0x18/0x1c)
r7:00000000 r6:c00712d0 r5:c0430e95 r4:0000009f
[<c036dca4>] (dump_stack+0x0/0x1c) from [<c006bd54>] (warn_slowpath_common+0x54/0x6c)
[<c006bd00>] (warn_slowpath_common+0x0/0x6c) from [<c006bd90>] (warn_slowpath_null+0x24/0x2c)
r9:c04dd60c r8:d088c800 r7:0000000e r6:cca8fb00 r5:c04b730c
r4:c0508900
[<c006bd6c>] (warn_slowpath_null+0x0/0x2c) from [<c00712d0>] (local_bh_enable+0x54/0xc4)
[<c007127c>] (local_bh_enable+0x0/0xc4) from [<c0065c58>] (omap_mbox_msg_send+0xcc/0xdc)
r5:c04b730c r4:00000000
[<c0065b8c>] (omap_mbox_msg_send+0x0/0xdc) from [<c02aee74>] (notify_shm_drv_send_event+0x1c8/0x208)
r5:00000001 r4:00000000
[<c02aecac>] (notify_shm_drv_send_event+0x0/0x208) from [<c02ac604>] (notify_send_event+0x114/0x26c)
[<c02ac4f0>] (notify_send_event+0x0/0x26c) from [<bf18c610>] (vps_fvid2_queue+0x94/0x1cc [vpss])
[<bf18c57c>] (vps_fvid2_queue+0x0/0x1cc [vpss]) from [<bf1955b0>] (capture_queue+0x50/0x64 [vpss])
r8:bf1cc404 r7:60000013 r6:cb79af80 r5:00000000 r4:ccb0f000
[<bf195560>] (capture_queue+0x0/0x64 [vpss]) from [<bf1cb1c8>] (ti81xxvin_buffer_queue+0x9c/0xe8 [ti81xxvin])
r5:cb7b8800 r4:ccb0f000
[<bf1cb12c>] (ti81xxvin_buffer_queue+0x0/0xe8 [ti81xxvin]) from [<c0285e5c>] (videobuf_streamon+0x80/0xd0)
r7:60000013 r6:cb7b89c4 r5:cb7b8904 r4:cb79af80
[<c0285ddc>] (videobuf_streamon+0x0/0xd0) from [<bf1cac40>] (vidioc_streamon+0x244/0x400 [ti81xxvin])
r7:cb7b4400 r6:00000001 r5:cb7b8800 r4:cb7b8904
[<bf1ca9fc>] (vidioc_streamon+0x0/0x400 [ti81xxvin]) from [<c027b764>] (__video_do_ioctl+0x1618/0x3f34)
r6:40045612 r5:00000000 r4:00000001
[<c027a14c>] (__video_do_ioctl+0x0/0x3f34) from [<c0279f3c>] (__video_usercopy+0x2e4/0x428)
[<c0279c58>] (__video_usercopy+0x0/0x428) from [<c027a0b0>] (video_ioctl2+0x30/0x38)
[<c027a080>] (video_ioctl2+0x0/0x38) from [<c02790f0>] (v4l2_ioctl+0xe8/0x11c)
r5:cb7b4400 r4:cb79a900
[<c0279008>] (v4l2_ioctl+0x0/0x11c) from [<c00d10e4>] (vfs_ioctl+0x28/0x44)
r9:cb7e4000 r8:00020e30 r7:0000001e r6:0000001e r5:cb79a900
r4:00000000
[<c00d10bc>] (vfs_ioctl+0x0/0x44) from [<c00d17f4>] (do_vfs_ioctl+0x500/0x540)
[<c00d12f4>] (do_vfs_ioctl+0x0/0x540) from [<c00d188c>] (sys_ioctl+0x58/0x7c)
[<c00d1834>] (sys_ioctl+0x0/0x7c) from [<c0044da0>] (ret_fast_syscall+0x0/0x30)
r8:c0044f48 r7:00000036 r6:00020e18 r5:0001ff1c r4:00192188
---[ end trace 691f52585517e328 ]---

allocated outbuf:0x4560c080
allocated outbuf:0x45a00880
allocated outbuf:0x45df5080
allocated outbuf:0x461e9880
allocating 6 buffers of size:4147200!!
allocated outbuf:0x465de080
allocated outbuf:0x469d2880
allocated outbuf:0x46dc7080
allocated outbuf:0x471bb880
allocated outbuf:0x475b0080
allocated outbuf:0x479a4880
Pipeline is live and does not need PREROLL ...
Setting pipeline to PLAYING ...
New clock: GstSystemClock
Caught SIGSEGV accessing address 0x29
Spinning. Please run 'gdb gst-launch 1448' to continue debugging, Ctrl-C to quit, or Ctrl-\ to dump core.

I can't dump the core for some reason or I know not where to find it?

Thanks

Robin

0 Prashant Nandakumar over 12 years ago in reply to Robin Aproskie

TI__Intellectual 810 points

Hi Robin,Amol,

There are stability issues when capturing and encoding at 60fps.

Please try it at 30fps -

gst-launch v4l2src device="/dev/video0" always-copy=false queue-size=12 decimate=2 ! 'video/x-raw-yuv-strided,format=(fourcc)YUY2,width=1920,height=1080,framerate=(fraction)30/1' .! omxbufferalloc numBuffers=12 ! tee name=t ! queue ! gstperf ! v4l2sink device="/dev/video1" show-preroll-frame=false sync=false min-queued-bufs=2 t. ! queue ! omx_noisefilter ! omx_h264enc force-idr-period=300 i-period=100 bitrate=12000000 ! h264parse output-format=0 ! rtph264pay ! udpsink host=172.17.25.230 port=1234

Regards,

Prashant.

0 Robin Aproskie over 12 years ago in reply to Prashant Nandakumar

Prodigy 240 points

Thanks this works

(I think because the camera is 1080i50 the frame rate now comes out at 12.5fps not great but it works for now ) why did you insert decimate into the script

Cheers

Robin

0 Jun_Zhang over 12 years ago in reply to Robin Aproskie

Expert 2425 points

Hi,

I also installed gst-openmax-GST_DM81XX_00_04_00_00 by downloading it and make gstomx_clean, gstomx and gstomx_install.

However, I still do not have omxbufferalloc elements.

Anyone could share the knowledge about how to fix it?

Thanks in advance,

Jun

0 Amol Natekar over 12 years ago in reply to Jun_Zhang

Intellectual 440 points

Did you export the gstreamer environment variables to point to the new gst installation before executing the pipeline on the target.

For e.g. if the gstreamer is installed at /opt/ in your target then you can export the following environment variable.

export GST_REGISTRY=/tmp/gst_registry.bin
export LD_LIBRARY_PATH=/opt/gstreamer/lib
export GST_PLUGIN_PATH=/opt/gstreamer/lib/gstreamer-0.10
export PATH=/opt/gstreamer/bin:$PATH
export GST_PLUGIN_SCANNER=/opt/gstreamer/libexec/gstreamer-0.10/gst-plugin-scanner =

-Amol

0 Jun_Zhang over 12 years ago in reply to Amol Natekar

Expert 2425 points

Hi Amol,

Thanks for your reply.

Now my v4l2src can work on the board now.

Best,

Jun

0 Greg Wirth over 12 years ago in reply to Jun_Zhang

Prodigy 10 points

All,

I am trying the loopback pipeline suggested earlier but I can not get it to work.

gst-launch v4l2src always-copy=false queue-size=11 ! 'video/x-raw-yuv-strided,format=(fourcc)YUY2,width=1920,height=1080,framerate=(fraction)30/1' ! omx
bufferalloc numBuffers=11 ! gstperf ! v4l2sink min-queued-bufs=2

output:

Setting pipeline to PAUSED ...

** (gst-launch-0.10:1422): CRITICAL **: gst_v4l2sink_sync_rotation: assertion `v4l2_ioctl (fd, VIDIOC_S_CTRL, &control) >= 0' failed

** (gst-launch-0.10:1422): CRITICAL **: gst_v4l2sink_sync_rotation: assertion `v4l2_ioctl (fd, VIDIOC_S_CTRL, &control) >= 0' failed

** (gst-launch-0.10:1422): CRITICAL **: gst_v4l2sink_sync_flip: assertion `v4l2_ioctl (fd, VIDIOC_S_CTRL, &control) >= 0' failed
ERROR: Pipeline doesn't want to pause.
ERROR: from element /GstPipeline:pipeline0/GstV4l2Src:v4l2src0: Device '/dev/video0' does not support video capture
Additional debug info:
gstv4l2object.c(2179): gst_v4l2_object_set_format (): /GstPipeline:pipeline0/GstV4l2Src:v4l2src0:
Call to G_FMT failed: (Invalid argument)
Setting pipeline to NULL ...

Caught SIGSEGV accessing address (nil)
Spinning.  Please run 'gdb gst-launch 1422' to continue debugging, Ctrl-C to quit, or Ctrl-\ to dump core.

Using Tag 00.04. Gstreamer

Using EZSDK 5.03.01.15

Using the load-hd-v4l2-firmware.sh startup in rc5.d I have removed load-hd-firmware.sh from rc5.d

lsmod:

Module                  Size  Used by
bufferclass_ti          4946  0
omaplfb                10794  0
pvrsrvkm              155450  2 bufferclass_ti,omaplfb
ti81xxhdmi             14478  0
ti81xxvin              20364  0
tvp7002                 6405  1
ti81xxvo               20143  0
ti81xxfb               21771  1
vpss                   72346  5 omaplfb,ti81xxhdmi,ti81xxvin,ti81xxvo,ti81xxfb
syslink              1113011  0
ipv6                  209855  14

Am I missing something?

Thanks,

Greg

0 Robin Aproskie over 12 years ago in reply to Greg Wirth

Prodigy 240 points

Hi Greg

Looks Fine except the way you have pasted your Forum post looks like you are missing data like the copy and paste did not wrap the text so i can't see the whole string.

Are you capturing from Component i.e.( RGB connectors) and displaying on the HDMI ? Are you using DM8168 EVM ?

If so ( Check the Video Capture Driver user guide 04.00.01.13) and ( Video Driver user guide 04.00.01.14)

Reset the board check the Video modules are loaded in the correct order and that you have copied the .KO modules from your build output to target FS where the same modules reside or are loaded from. syslink and cmemk drivers aswell. TP7002

Make sure you switch on your graphics planes and redirect V4L2 vpss driver /dev/video1 to the HDMI. using the echo commands I used above.

If you are capturing from a camera make sure that the height and width match, you can also insert a -v i.e. "gst-launch -v ....." and it will tell you that what the capture driver supports . I know If I try run this pipeline twice I get the same error as you. Something to do with the Vpss driver not closing when I destroy the pipeline.

Also test with videotestsrc , after you have it working replace with the v4l2 capture.also check that the format is correct. try this:

After all my typing which I will not delete If you look in the Trace above my format is incorrect and the driver tries all formats one after the other until it gets a match = 12.

Hope this helps

Cheers

Robin

0 Prashant Nandakumar over 12 years ago in reply to Robin Aproskie

TI__Intellectual 810 points

Hi Robin,

The decimate=n option would drop every nth frame captured. Hence setting decimate to 2 would half the framerate.

Another thing you could try is to reduce the bitrate of the encoder to say 4 or 6Mbps, while keeping the full framerate.

There are stability issues with v4l2 capture, when the DDR is heavily loaded. We are looking at this right now. And shall let you know, once we have a fix.

-Prashant.

0 avi cohen94145 over 12 years ago in reply to Prashant Nandakumar

Prodigy 190 points

Hello

this is my server side Gstreamer program , i'll really apriceate if someone can help me with the client side , i'm having a problem ..

gst-launch v4l2src always-copy=false queue-size=12 num-buffers=2000 ! 'video/x-raw-yuv-strided,format=(fourcc)NV12,width=1280,height=720,framerate=(fraction)25/1' ! omxbufferalloc numBuffers=12 ! omx_h264enc bitrate=5000000 ! gstperf ! udpsink host=192.168.16.182 port=5000 sync=false

thanks .

0 Robin Aproskie over 12 years ago in reply to avi cohen94145

Prodigy 240 points

Output a list of all the plugins to a file

"gst-inspect > file.txt"

Check out whats available. ie rtph264pay (which is a payloader) you can search for descriptions on freedesktop.org (search in google )

type "gst-inspect rtph264pay" this will give you a description of what you can set in the plugin and compatability between pad src and sinks.

h264parse is a parser for h264 which does chunking rtph264 (checks for frame boundries etc)will put it in realtime packets and udp then sends it out

So basicaly:

your server should look like this:

"use gst-launch -v ......." to get a trace out.

Robin

0 Amol Natekar over 12 years ago in reply to Robin Aproskie

Intellectual 440 points

Hi all,

Is it possible to capture video using a webcam connected via USB? Has anyone tried the same. I have Microsoft Lifecam VX2000 that is connected to the EVM over USB. Can I capture video using this webcam. I tried few pipelines but no luck yet?

Regards.

Amol

0 avi cohen94145 over 12 years ago in reply to Amol Natekar

Prodigy 190 points

Somebody know where /dev/video0 create in linux kernel ??

I have a target based on DM8148 , but tvp7002 is connected to the cpu to video1 .

i want to redirect the video1 to virtual /dev/video0 for capture using v4l2 .

someone has an idea ? or can help me ?

0 Jun_Zhang over 11 years ago in reply to Prashant Nandakumar

Expert 2425 points

Hi Prashant,

Could you please share us any update regarding this stability issue with high frame rate?

I opened a new thread here, and expecting your input here:

http://e2e.ti.com/support/dsp/davinci_digital_media_processors/f/716/t/186865.aspx

Regards,

Jun

0 Jun_Zhang over 11 years ago in reply to Robin Aproskie

Expert 2425 points

Hi Robin

Do you have any luck to get a higher capture rate?

The best I got is 1080@15 when streaming over network.

Regards,

Jun

0 Mike Thornhill over 10 years ago in reply to Jun_Zhang

Intellectual 795 points

Jun,

What is your update regarding capturing video at a higher data rate? Anything new?

Thank you.

-Mike

0 Margarita Gashova over 10 years ago in reply to Mike Thornhill

TI__Guru* 80190 points

Hello Mike,

You could try with the latest EZSDK 5.05.02.

Best Regards,

Margarita

0 mohammed asif over 9 years ago in reply to Satish Arora

Expert 1335 points

hi satish,

I am using dm8168 with daughter card, unable to capture video through composite input.

gst-launch v4l2src always-copy=false queue-size=11 ! 'video/x
-raw-yuv-strided,format=(fourcc)YUY2,width=1280,height=720,framerate=(fraction)6
0/1' ! omxbufferalloc numBuffers=11 ! gstperf ! v4l2sink min-queued-bufs=2
Setting pipeline to PAUSED ...
ERROR: Pipeline doesn't want to pause.
ERROR: from element /GstPipeline:pipeline0/GstV4l2Sink:v4l2sink0: Cannot identify device '/dev/video1'.
Additional debug info:
v4l2_calls.c(493): gst_v4l2_open (): /GstPipeline:pipeline0/GstV4l2Sink:v4l2sink0:
system error: No such file or directory
Setting pipeline to NULL ...
Freeing pipeline ...
root@dm816x-evm:~#

and also there is no video file in /dev directory.

Thanks and regards,

Asif.

0 Prashant Nandakumar over 9 years ago in reply to mohammed asif

TI__Intellectual 810 points

Hello Asif,

YOu'd have to load the ti81xxvin.ko kernel module first.

-Prashant.

0 mohammed asif over 9 years ago in reply to Prashant Nandakumar

Expert 1335 points

hi prashant,

thanks for the reply, where i get ti81xxvin.ko and how to build it?

my board is booting fine for both sd card and tftp,nfs.

but unable to encode,decode and loopback video.

I have connected the hi focus pal camera at composite input as shown in below figure.

i followed the below steps.

Video initialization

echo 0 > /sys/devices/platform/vpss/graphics0/enabled
echo 0 > /sys/devices/platform/vpss/graphics1/enabled
echo 0 > /sys/devices/platform/vpss/graphics2/enabled

Capture encode demo

This demo is the capture-encode demo included in the EZSDK. It takes an input video streaming from the component input (case 720p) of the daughter card(marked as J5J6J7) and encodes it in H264, the output is displayed through the HDMI output.

echo 0 > /sys/devices/platform/vpss/display0/enabled
echo 720p-60 >/sys/devices/platform/vpss/display0/mode
echo 1 > /sys/devices/platform/vpss/display0/enabled
./usr/share/ti/ti-omx/capture_encode_a8host_debug.xv5T -o sample.h264 -m 720p -f 60 -b 1000000 -d 0 -n 1000

Thanks and regards,

Asif

0 Ramprasad over 9 years ago in reply to mohammed asif

TI__Mastermind 30480 points

Hi Asif,

For V4L2 capture display you need to use load-hd-v4l2-firmware.sh script which inserts all .kos required.

Please copy targetfs/usr/share/ti/ti-media-controller-utils/load-hd-v4l2-firmware.sh to targetfs/etc/init.d/load-hd-firmware.sh for V4L2 and

copy targetfs/usr/share/ti/ti-media-controller-utils/load-hd-firmware.sh to targetfs/etc/init.d//load-hd-firmware.sh for OMX firmware.

Capture_Encode demo uses OMX firmware for capture and display.

EZSDK05.05.02.00 is the latest available sdk with many bug-fixes. Please use this version.

Can you please share the logs from booting to capture_encode execution?

Ram

0 mohammed asif over 9 years ago in reply to Ramprasad

Expert 1335 points

hi ram,

thanks for the reply,

yes i copied load-hd-v4l2-firmware.sh and load-hd-firmware.sh was already present .

please find the below details for you referrence.

root@dm816x-evm:~# ./capture_encode_a8host_debug.xv5T -o sample.h264 -m 720p -f
60 -b 1000000 -d 0 -n 1000
-sh: ./capture_encode_a8host_debug.xv5T: not found
root@dm816x-evm:~# cd /usr/share/ti/ti-omx/
root@dm816x-evm:/usr/share/ti/ti-omx# ls
adec_snt_a8host_debug.xv5T
audio_encode_a8host_debug.xv5T
c6xtest_a8host_debug.xv5T
capture_encode_a8host_debug.xv5T
decode_a8host_debug.xv5T
decode_display_a8host_debug.xv5T
decode_mosaicdisplay_a8host_debug.xv5T
display_a8host_debug.xv5T
encode_a8host_debug.xv5T
root@dm816x-evm:/usr/share/ti/ti-omx# ./capture_encode_a8host_debug.xv5T -o samp
le.h264 -m 720p -f 60 -b 1000000 -d 0 -n 1000
output file: sample.h264
bit_rate: 1000000
frame_rate: 60
num_frames: 1000
mode: 720p
display_id: 0
Capture-Encode example
===============================
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 761 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
Segmentation fault
root@dm816x-evm:/usr/share/ti/ti-omx# ls /etc/init.d/
alignment.sh              load-hd-v4l2-firmware.sh save-rtc.sh
alsa-state                matrix-gui-e              sendsigs
banner                    modutils.sh               single
bootmisc.sh               mountall.sh               sysfs.sh
checkroot                 mountnfs.sh               syslog
dbus-1                    networking                syslog.busybox
devpts.sh                 populate-volatile.sh      telnetd
finish.sh                 psplash                   thttpd
functions                 pvr-init                  udev
gplv3-notice              ramdisk                   udev-cache
halt                      rc                        umountfs
hostname.sh               rcS                       umountnfs.sh
hwclock.sh                reboot                    urandom
load-hd-firmware.sh       rmnologin
root@dm816x-evm:/usr/share/ti/ti-omx#

thanks and regards,

Asif.

0 Ramprasad over 9 years ago in reply to mohammed asif

TI__Mastermind 30480 points

Hi Asif,

In init.d only load-hd-firmware.sh should be present

For cpature_encode(OMX based) , please do following

cp targetfs/usr/share/ti/ti-media-controller-utils/load-hd-firmware.sh targetfs/etc/init.d/load-hd-firmware.sh and reboot

and then execute capture_encode example.

Let me know the result.

Ram

0 mohammed asif over 9 years ago in reply to Ramprasad

Expert 1335 points

hi ram,

unable to capture...

root@dm816x-evm:~# echo 0 > /sys/devices/platform/vpss/graphics0/enabled
root@dm816x-evm:~# echo 0 > /sys/devices/platform/vpss/graphics1/enabled
root@dm816x-evm:~# echo 0 > /sys/devices/platform/vpss/graphics2/enabled
VPSS_GRPX : please open fb2 node first.
root@dm816x-evm:~# echo 0 > /sys/devices/platform/vpss/display0/enabled
root@dm816x-evm:~# echo 720p-60 >/sys/devices/platform/vpss/display0/mode
root@dm816x-evm:~# echo 1 > /sys/devices/platform/vpss/display0/enabled
root@dm816x-evm:~# cd /usr/share/ti/ti-omx/
root@dm816x-evm:/usr/share/ti/ti-omx# ls
adec_snt_a8host_debug.xv5T
audio_encode_a8host_debug.xv5T
c6xtest_a8host_debug.xv5T
capture_encode_a8host_debug.xv5T
decode_a8host_debug.xv5T
decode_display_a8host_debug.xv5T
decode_mosaicdisplay_a8host_debug.xv5T
display_a8host_debug.xv5T
encode_a8host_debug.xv5T
root@dm816x-evm:/usr/share/ti/ti-omx# ./capture_encode_a8host_debug.xv5T -o samp
le.h264 -m 720p -f 60 -b 1000000 -d 0 -n 1000
output file: sample.h264
bit_rate: 1000000
frame_rate: 60
num_frames: 1000
mode: 720p
display_id: 0
Capture-Encode example
===============================
OMX_Init completed
UIAClient is ready to send a UIA configuration command
UIAClient received UIA_CONFIGURE_ACK
UIAClient is done sending requests
UIAClient is ready to send a UIA configuration command
UIAClient received UIA_CONFIGURE_ACK
UIAClient is done sending requests
openeing file
capture compoenent is created
control TVP compoenent is created
Buffer Size computed: 1382400
set input port params (width = 1280, height = 720)enable capture output port
got eventEnable/Disable Event
dei compoenent is created
set input port params (width = 1280, height = 720)
set output port params (width = 1280, height = 720)set output port params (width = 1920, height = 1080)set num
got eventEnable/Disable Event
enable dei output port 0
got eventEnable/Disable Event
enable dei output port 1
got eventEnable/Disable Event
encoder compoenent is created
found handle 0x1244f8 for component OMX.TI.VPSSM3.VFDC
got display handle
found handle 0x128500 for component OMX.TI.VPSSM3.CTRL.DC
Buffer Size computed: 1843200
set input port params (width = 1280, height = 720)setting input and output memory type to defaultenable input
got eventEnable/Disable Event
connect call for capture-Dei
connect call for dei- encoder
connect call for dei-display
got eventState changed to: OMX_StateIdle
Capture outport buffers allocated
got eventState changed to: OMX_StateIdle
Capture is in IDLE state
Dei input port use buffer done
DEI outport buffers allocated
got eventState changed to: OMX_StateIdle
DEI is in IDLE state
encoder input port use buffer done
encoder outport buffers allocated
got eventState changed to: OMX_StateIdle
Encoder state IDLE
got eventState changed to: OMX_StateIdle
ctrl-dc state IDLE
display buffers allocated
waiting for IDLEgot eventState changed to: OMX_StateIdle
display state IDLE
got eventState changed to: OMX_StateExecuting
display control state execute
got eventState changed to: OMX_StateExecuting
display state execute
got eventState changed to: OMX_StateExecuting
encoder state execute
got eventState changed to: OMX_StateExecuting
dei state execute
got eventState changed to: OMX_StateExecuting
capture state execute

it stop here i pressed ctl+z after some delay but the size of the file is o

[1] + Stopped ./capture_encode_a8host_debug.xv5T -o sample.h264 -m 720p -f 60 -b 1000000 -0
root@dm816x-evm:/usr/share/ti/ti-omx# ls
adec_snt_a8host_debug.xv5T
audio_encode_a8host_debug.xv5T
c6xtest_a8host_debug.xv5T
capture_encode_a8host_debug.xv5T
decode_a8host_debug.xv5T
decode_display_a8host_debug.xv5T
decode_mosaicdisplay_a8host_debug.xv5T
display_a8host_debug.xv5T
encode_a8host_debug.xv5T
sample.h264
root@dm816x-evm:/usr/share/ti/ti-omx# du -sh sample.h264
0 sample.h264
root@dm816x-evm:/usr/share/ti/ti-omx#

thanks and regards,

Asif

0 mohammed asif over 9 years ago in reply to Ramprasad

Expert 1335 points

hi ram,

any how i tried to decode the same file using below command it shows segmentation fault..

./decode_display_a8host_debug.xv5T -i sample1.h264 -m 720p -f 60 -b 1000000 -d 0 -n 1000

root@dm816x-evm:/usr/share/ti/ti-omx# ls
adec_snt_a8host_debug.xv5T
audio_encode_a8host_debug.xv5T
c6xtest_a8host_debug.xv5T
capture_encode_a8host_debug.xv5T
decode_a8host_debug.xv5T
decode_display_a8host_debug.xv5T
decode_mosaicdisplay_a8host_debug.xv5T
display_a8host_debug.xv5T
encode_a8host_debug.xv5T
sample.h264
sample1.h264
root@dm816x-evm:/usr/share/ti/ti-omx# du -sh sample1.h264
0       sample1.h264
root@dm816x-evm:/usr/share/ti/ti-omx# ./decode_display_a8host_debug.xv5T -i samp
le1.h264 -m 720p -f 60 -b 1000000 -d 0 -n 1000
./decode_display_a8host_debug.xv5T: invalid option -- 'm'
decode_display -w <image_width> -h <image_height> -f <frame_rate> -i <input_file> -g <gfx on/off> -d <0/1>
-i | --input           input filename
-w | --width           image width
-h | --height          image height
-f | --framerate       decode frame rate - max 60
-c | --codec           codec to be used - should be one of h264,h263,mpeg4,vc1,mpeg2,mjpeg
-g | --gfx             gfx - 0 - off, 1 - on
-d | --display_id      0 - for on-chip HDMI, 1 for secondary display
example : ./decode_display_a8host_debug.xv5T -i sample.h264 -w 1920 -h 1080 -f 30 -g 0 -d 0 -c h264
root@dm816x-evm:/usr/share/ti/ti-omx# ./decode_display_a8host_debug.xv5T -i samp
le1.h264 -w 1920 -h 1080 -f 60 -g 0 -d 0 -c h264
input file: sample1.h264
width: 1920
height: 1080
frame_rate: 60
gfx: fbdev disable
codec: h264
display_id: 0
Decoder-Display example
===============================
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 761 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
Segmentation fault
root@dm816x-evm:/usr/share/ti/ti-omx#

0 mohammed asif over 9 years ago in reply to Jun_Zhang

Expert 1335 points

hi jun,

I am also facing the same problem with my dm8168evm, unable to encode,decode and loopback the video,

can you solve my problem for the same.

Thanks and regards,

Asif.

0 Margarita Gashova over 9 years ago in reply to mohammed asif

TI__Guru* 80190 points

Hello,

mohammed asif said:
I am using dm8168 with daughter card, unable to capture video through composite input.

In EZSDK, currently media controller supports only TVP7002 the component capture through TVP7002.

For capture connected to the composite input you should add the external decoder and to use v4l2 capture driver.

Please follow these guides:

http://processors.wiki.ti.com/index.php/DM81xx_AM38xx_Adding_External_Decoders_to_V4L2_Capture_Driver

and

http://processors.wiki.ti.com/index.php/TI81XX_PSP_VIDEO_CAPTURE_Driver_User_Guide

As Ram Prasad wrote you should load the load-hd-v4l2-firmware.sh firmware when you are trying v4l2 capture. For OMX capture (capture_encode demo)the load-hd-firmware.sh should be used.

The capture_encode demo will not work if you are trying capture through composite input.

mohammed asif said:
root@dm816x-evm:/usr/share/ti/ti-omx# ./decode_display_a8host_debug.xv5T -i samp
le1.h264 -w 1920 -h 1080 -f 60 -g 0 -d 0 -c h264
input file: sample1.h264
width: 1920
height: 1080
frame_rate: 60
gfx: fbdev disable
codec: h264
display_id: 0
Decoder-Display example
===============================
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 695 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
ServiceMgr_prime: MessageQ_put failed: status = 0xfffffffe
Assertion at Line no: 1239 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20d
Assertion at Line no: 761 in /swcoe/sdk/cm/netra/arago-tmp/work/dm816x-evm-none-linux-gnueabi/ti-syslink-2_20_d
Segmentation fault
root@dm816x-evm:/usr/share/ti/ti-omx#

Could you prove the steps that you are executing before to run the OMX decode_display demo?

Please for the new issues open a new e2e threads.

Best Regards,

Margarita

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi Margarita ,

thanks for the reply,

please find the below steps for details for your reference.

it stop here i pressed ctl+z after some delay but the size of the file is o

Thanks and Regards,

Asif

0 Margarita Gashova over 9 years ago in reply to mohammed asif

TI__Guru* 80190 points

Hello,

What is the video source and how is connected to the board?

Could you execute:

cd /usr/share/ti/ti-uia/

./loggerSMDump.out 0x9e400000 0x100000 all &

cd /usr/share/ti/ti-omx/

./capture_encode_a8host_debug.xv5T -o sample.h264 -m 720p -f 60 -b 1000000 -d 0 -n 1000

and share the log file.

Best Regards,

Margarita

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi,

6471.log.txt

please find the attached log.txt file for your reference.

For composite input capture should add the external decoder and to use v4l2 capture driver.
http://processors.wiki.ti.com/index.php/DM81xx_AM38xx_Adding_External_Decoders_to_V4L2_Capture_Driver

i am unable find the structures that needs to be instantiate and filled in according to the external decoder and connectivity between decoder and VIP.

Thanks and Regards,
ASIF

0 Margarita Gashova over 9 years ago in reply to mohammed asif

TI__Guru* 80190 points

Hello,

Based on the omx capture_encode demo log file it seems that the video source is not connected that is why the file is with 0 size.

N:VPSS P:2 #:01751 T:0000001d48114b7f S:Trying Video Detection again!!
N:VPSS P:2 #:01752 T:0000001d4b5f453b S:Video Not Detected!!

Provide more details about the video source and how is connected to the board.

Best Regards,

Margarita

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi,

my board is booting fine for both sd card and tftp,nfs.

but unable to encode,decode and loopback video.

I have connected the hi focus pal camera at composite input as shown in below figure.

even i tested by connecting same composite cable at green colour of component input as shown below.

Thanks and regards,

Asif

mohammed asif posted RE: v4l2 Capture pipelines on 8168 EVM using EZSDK (version 5_03_01_15) in DM816x, C6A816x and AM389x Processors Forum.

hi prashant,

thanks for the reply, where i get ti81xxvin.ko and how to build it?

my board is booting fine for both sd card and tftp,nfs.

but unable to encode,decode and loopback video.

I have connected the hi focus pal camera at composite input as shown in below figure.

i followed the below steps.

Video initialization

echo 0 > /sys/devices/platform/vpss/graphics0/enabled

echo 0 > /sys/devices/platform/vpss/graphics1/enabled

echo 0 > /sys/devices/platform/vpss/graphics2/enabled

Capture encode demo

echo 0 > /sys/devices/platform/vpss/display0/enabled

echo 720p-60 >/sys/devices/platform/vpss/display0/mode

echo 1 > /sys/devices/platform/vpss/display0/enabled

./usr/share/ti/ti-omx/capture_encode_a8host_debug.xv5T -o sample.h264 -m 720p -f 60 -b 1000000 -d 0 -n 1000

Thanks and regards,

Asif

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi,

TI81XX PSP VIDEO CAPTURE Driver User Guide

ti81xxvin.ko(VPSS V4L2 capture driver) is generated under drivers/media/video/ti81xx

where i can get the below Prerequisites

V4L2 capture driver requires following modules to be loaded for its functioning.

syslink kernel driver module, referred as "syslink.ko"
loader user space program, referred as "slaveloader"
M3 BIOS Firmware binary, referred as "ti816x_hdvpss.xem3/ti814x_hdvpss_1G.xem3"
VPSS kernel driver module, referred as "vpss.ko"
TVP7002 decoder kernel module referred to as "tvp7002.ko"
V4L2 capture kernel module, referred as "ti81xxvin.ko"

----------------------------------------------------------------------------------------------------------------

DM81xx AM38xx Adding External Decoders to V4L2 Capture Driver

how to add external decoder. could not find the ti81xx_fb.c under $kernel_source/arch/arm/mach-omap2/

Thanks and Regards,

ASIF

0 Margarita Gashova over 9 years ago in reply to mohammed asif

TI__Guru* 80190 points

Hello,

mohammed asif said:

For composite input capture should add the external decoder and to use v4l2 capture driver.

i am unable find the structures that needs to be instantiate and filled in according to the external decoder and connectivity between decoder and VIP.

J1 is the Composite input we have TVP5147. You should add is as external decoder by following the user guide:

http://processors.wiki.ti.com/index.php/DM81xx_AM38xx_Adding_External_Decoders_to_V4L2_Capture_Driver

Best Regards,

Margarita

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi,

i followed the below link.

http://processors.wiki.ti.com/index.php/DM81xx_AM38xx_Adding_External_Decoders_to_V4L2_Capture_Driver

Steps for Adding new Decoders

All the files related to new external decoders should be added in following kernel directory

$kernel_source/drivers/media/video/<external_decoder_directory_file>

MakeFiles and Kconfig files needs to be modified accordingly. Please refer to following kernel documentation on makefiles and Kconfig under following kernel directory.

$kernel_source/Documentation/kbuild/

TVP7002 decoder is added as the sub-device model in Linux Driver stack. Please refer following files for TVP7002 decoder implementation.

$kernel_source/drivers/media/video/tvp7002.c
$kernel_source/drivers/media/video/tvp7002_reg.h
$kernel_source/drivers/media/video/tvp7002_reg.h
$kernel_source/media/video/Makefile
$kernel_source/drivers/media/video/Kconfig

TVP7002 specifications could be found at tvp7002
Data about the external decoders like what inputs they support, how they are interfaced to VPSS VIP port, what is the I2C address etc, needs to be passed to V4L2 capture driver. This data is board dependent and needs to be filled based on decoder and how decoder is connected to VIP port.
ti81xxvin_config data structure needs to be field and passed it as platform data to the HDVPSS V4L2 capture driver. It includes many sub-structures and enums all those will be explained in sub-sequent sections in code

--------------------------------------------------

All the files related to new external decoders should be added in following kernel directorybelow is the $kernel_source/drivers/media/video/<external_decoder_directory_file>

but how and what should i... pleses find the below details for your reference.

root@ubuntu:/home/user/ti-ezsdk_dm8168-evm_5_04_00_11/board-support/linux-2.6.37-psp04.04.00.01/drivers/media/video# ls
adv7170.c           mt9v011.c               ti81xx
adv7175.c           mt9v011.h               tiler
adv7180.c           mt9v022.c               tlg2300
adv7343.c           mt9v032.c               tlv320aic23b.c
adv7343_regs.h      mt9v113.c               tuner-core.c
ak881x.c            mt9v113_regs.h          tvaudio.c
arv.c               mx1_camera.c            tveeprom.c
au0828              mx2_camera.c            tvp514x.c
bt819.c             mx3_camera.c            tvp514x_regs.h
bt856.c             mxb.c                   tvp5150.c
bt866.c             mxb.h                   tvp5150_reg.h
bt8xx               omap                    tvp7002.c
btcx-risc.c         omap1_camera.c          tvp7002.ko
btcx-risc.h         omap24xxcam.c           tvp7002.mod.c
built-in.o          omap24xxcam-dma.c       tvp7002.mod.o
bw-qcam.c           omap24xxcam.h           tvp7002.o
cafe_ccic.c         ov6650.c                tvp7002_reg.h
cafe_ccic-regs.h    ov7670.c                tw9910.c
cpia2               ov7670.h                upd64031a.c
c-qcam.c            ov772x.c                upd64083.c
cs5345.c            ov9640.c                usbvideo
cs53l32a.c          ov9640.h                usbvision
cs8420.h            pms.c                   uvc
cx18                pvrusb2                 v4l1-compat.c
cx231xx             pwc                     v4l1-compat.o
cx2341x.c           pxa_camera.c            v4l2-common.c
cx23885             rj54n1cb0c.c            v4l2-common.o
cx25840             s2255drv.c              v4l2-compat-ioctl32.c
cx88                s5p-fimc                v4l2-ctrls.c
dabusb.c            saa6588.c               v4l2-ctrls.o
dabusb.h            saa7110.c               v4l2-dev.c
davinci             saa7115.c               v4l2-device.c
em28xx              saa711x_regs.h          v4l2-device.o
et61x251            saa7121.h               v4l2-dev.o
fsl-viu.c           saa7127.c               v4l2-event.c
gspca               saa7134                 v4l2-event.o
hdpvr               saa7146.h               v4l2-fh.c
hexium_gemini.c     saa7146reg.h            v4l2-fh.o
hexium_orion.c      saa7164                 v4l2-int-device.c
ibmmpeg2.h          saa717x.c               v4l2-int-device.o
imx074.c            saa7185.c               v4l2-ioctl.c
indycam.c           saa7191.c               v4l2-ioctl.o
indycam.h           saa7191.h               v4l2-mem2mem.c
ir-kbd-i2c.c        se401.c                 v4l2-subdev.c
isp                 se401.h                 v4l2-subdev.o
ivtv                sh_mobile_ceu_camera.c via-camera.c
Kconfig             sh_mobile_csi2.c        via-camera.h
ks0127.c            sh_vou.c                videobuf-core.c
ks0127.h            sn9c102                 videobuf-core.o
m52790.c            soc_camera.c            videobuf-dma-contig.c
Makefile            soc_camera_platform.c   videobuf-dma-contig.o
mem2mem_testdev.c   soc_mediabus.c          videobuf-dma-sg.c
meye.c              sr030pc30.c             videobuf-dma-sg.o
meye.h              stk-sensor.c            videobuf-dvb.c
modules.builtin     stk-webcam.c            videobuf-vmalloc.c
modules.order       stk-webcam.h            videodev.o
msp3400-driver.c    tcm825x.c               vino.c
msp3400-driver.h    tcm825x.h               vino.h
msp3400-kthreads.c tda7432.c               vivi.c
mt9m001.c           tda9840.c               vp27smpx.c
mt9m111.c           tda9875.c               vpx3220.c
mt9t001.c           tea6415c.c              w9966.c
mt9t031.c           tea6415c.h              wm8739.c
mt9t111.c           tea6420.c               wm8775.c
mt9t111_reg.h       tea6420.h               zoran
mt9t112.c           ths7303.c               zr364xx.c
root@ubuntu:/home/user/ti-ezsdk_dm8168-evm_5_04_00_11/board-support/linux-2.6.37-psp04.04.00.01/drivers/media/video#

Thanks and Regards,

ASIF

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi margarita,

genereted and inserted both the modules tvp514x.ko and tvp7002.ko

kindly let me know the commands to encode/capture,decode and loopback the videos through composite input and hdmi output.

pleses find the below inserted modules on dm8168 for your reference .

root@dm816x-evm:/# lsmod
Module                  Size Used by
tvp514x                10260 0
tvp7002                 6405 0
ti81xxvin              20388 0
bufferclass_ti          4950 0
omaplfb                10794 0
pvrsrvkm              155594 2 bufferclass_ti,omaplfb
ti81xxhdmi             16163 0
ti81xxfb               21979 3
vpss                   75009 4 ti81xxvin,omaplfb,ti81xxhdmi,ti81xxfb
syslink              1119122 0
ipv6                  209855 12
root@dm816x-evm:/#

Thanks and Regards,

ASIF.

0 Margarita Gashova over 9 years ago in reply to mohammed asif

TI__Guru* 80190 points

Hello,

mohammed asif said:
kindly let me know the commands to encode/capture,decode

You can not use OMX capture encode demo in use case capture source connected to the composite input. Check the previous posts. In capture_encode demo the capture component which is running on HDVPSS part of media controller captures the 1080p60/720p/1080i input from TVP7002 decoder on Catalog EIO board. The media controller's source code is under NDA and you can not modify it to add the tvp5147 support but you could obtain it by contacting your local FAE or TI representative.

In use case, composite capture on the EVM we have tvp5147 as external decoder that is why you should use v4l2. TVP5147 driver is already avaiable as a part of Linux kernel under $Kernel/driver/media/video/tvp514x.c. You just need to hook this up to V4L2 capture driver.

You could try to use v4l2 demos described here but you should make some modifications:

http://processors.wiki.ti.com/index.php/TI81XX_PSP_VIDEO_CAPTURE_Driver_User_Guide

Best Regards,

Margarita

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi,

yes, according to your suggestion, i got the tvp514x.ko as a part of Linux kernel under $Kernel/driver/media/video.

even i insmod the same module. but where i can get the below Prerequisites

TI81XX PSP VIDEO CAPTURE Driver User Guide

V4L2 capture driver requires following modules to be loaded for its functioning.

syslink kernel driver module, referred as "syslink.ko"
loader user space program, referred as "slaveloader"
M3 BIOS Firmware binary, referred as "ti816x_hdvpss.xem3/ti814x_hdvpss_1G.xem3"
VPSS kernel driver module, referred as "vpss.ko"
TVP7002 decoder kernel module referred to as "tvp7002.ko"
V4L2 capture kernel module, referred as "ti81xxvin.ko"

Thanks and regards,

ASIF.

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi margarita,

Installation Guide

This is the TI81XX Linux VPSS(VPSS capture) Driver user installation guide. This documents the steps to get the VPSS Driver worked up on TI81XX based EVM(Simulator is not tested). This driver has the following dependencies outside of Kernel.

TI81XX PSP 04.04.00.02 release for TI814x, TI837x, TI816x, TI389x, TI385x and TI813x
Syslink 2.20.00.14 release (slaveloader)
_{HDVPSS 01.00.01.44 release ----> no file find at this location}

therefore i am using TI816x-HDVPSS-01.00.01.33.

unable to insert the modules.

root@dm816x-evm:/prequest/TI816x-HDVPSS-01.00.01.33# lsmod
Module Size Used by
bufferclass_ti 4950 0
omaplfb 10794 0
pvrsrvkm 155594 2 bufferclass_ti,omaplfb
ti81xxhdmi 17685 0
ti81xxfb 21979 3
vpss 75009 3 omaplfb,ti81xxhdmi,ti81xxfb
syslink 1134279 0
ipv6 209855 12
root@dm816x-evm:/prequest/TI816x-HDVPSS-01.00.01.33# insmod syslink.ko
syslink: disagrees about version of symbol module_layout
insmod: error inserting 'syslink.ko': -1 Invalid module format

root@dm816x-evm:/prequest/TI816x-HDVPSS-01.00.01.33# ./slaveloader startup VPSS-
M3 ti816x_hdvpss.xem3

root@dm816x-evm:/prequest/TI816x-HDVPSS-01.00.01.33# insmod vpss.ko
vpss: disagrees about version of symbol module_layout
insmod: error inserting 'vpss.ko': -1 Invalid module format

root@dm816x-evm:/prequest/TI816x-HDVPSS-01.00.01.33# insmod tvp7002.ko
tvp7002: disagrees about version of symbol module_layout
insmod: error inserting 'tvp7002.ko': -1 Invalid module format

root@dm816x-evm:/prequest/TI816x-HDVPSS-01.00.01.33# insmod ti81xxvin.ko
ti81xxvin: disagrees about version of symbol module_layout
insmod: error inserting 'ti81xxvin.ko': -1 Invalid module format
root@dm816x-evm:/prequest/TI816x-HDVPSS-01.00.01.33#

thanks and regards,

Mohammed Asif.

0 Margarita Gashova over 9 years ago in reply to mohammed asif

TI__Guru* 80190 points

Hello,

mohammed asif said:
HDVPSS 01.00.01.44 release ----> no file find at this location

EZSDK 5.05.02 is using this HDVPSS version.

Best Regards,

Margarita

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi,

yes i tried from the below link.

http://software-dl.ti.com/dsps/dsps_public_sw/ezsdk/5_05_02_00/index_FDS.html

./ezsdk_dm816x-evm_5_05_02_00_setuplinux

same problem.......

Thanks and Regards,

Mohammed Asif.

0 mohammed asif over 9 years ago in reply to Margarita Gashova

Expert 1335 points

hi,

how can i install opencv library or any other software on dm8168evm.

opkg install opencv command is also not working on dm8168evm.

kindly let me know the command to install the softwares on the same.

Thanks and Regards,

Mohammed Asif.

0 Margarita Gashova over 9 years ago in reply to mohammed asif

TI__Guru* 80190 points

Hello,

Please, could you open a new e2e threads for the new issues. This topic is for different issue.

Best Regards,

Margarita

0 David Soto - RidgeRun over 9 years ago in reply to Margarita Gashova

Genius 3700 points

Hi All,

To capture from the TVP5147 (composite) present in the DM816x you need to enable the driver for the TVP5147 and also integrate it with the main V4L2. Furthermore you would need to route the clock signal from the daughter card with a cable (solder it) since the signal is missing. Ridgerun already has the TVP5147 capturing properly and we modified omx_camera to be able to capture NTSC or component from TVP7002:

http://e2e.ti.com/support/dsp/davinci_digital_media_processors/f/717/p/326172/1170437.aspx#1170437

https://github.com/RidgeRun/gst-openmax-dm81xx

-David

Processors

Processors forum

v4l2 Capture pipelines on 8168 EVM using EZSDK (version 5_03_01_15)

Video initialization

Capture encode demo

Video initialization

Capture encode demo

TI81XX PSP VIDEO CAPTURE Driver User Guide

DM81xx AM38xx Adding External Decoders to V4L2 Capture Driver

Steps for Adding new Decoders

TI81XX PSP VIDEO CAPTURE Driver User Guide

Installation Guide
