TFP403: TFP401 VS TFP403

Lawrence Beaudry
Prodigy 10 points
Part Number: TFP403
Other Parts Discussed in Thread: TFP401,

I wish to know a few things about TFP401, TFP403 DVI receivers

First of all, I dont need CTL lines, what to do in this case?

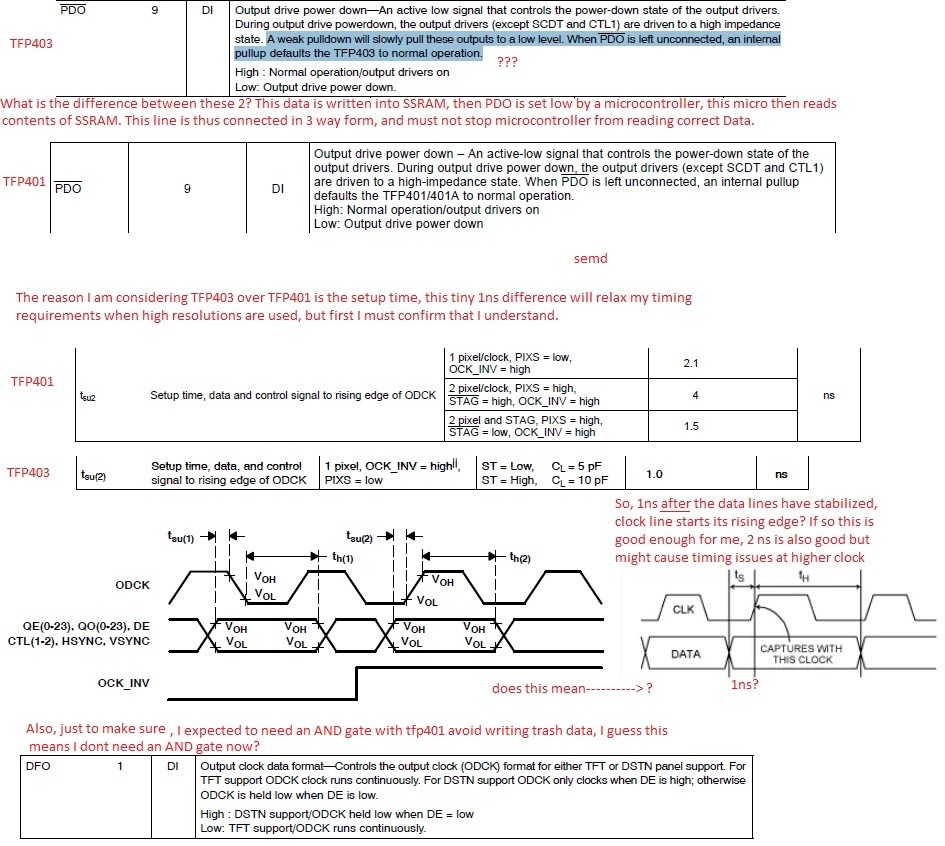

Here is my question in image form.

Thank you for all res ponses.

  • 0
    TI__Mastermind 18655 points
    Hello Lawrence,
    PDO# terminal has exactly the same functionality in both devices.
    With no input, the device will output the free-running PLL on ODCK. With no input, the state of the control and data output signals is unknown. Noise on the differential data inputs can be decoded as random data and therefore appears to change the output as the free-running PLL output changes.
    To avoid this situation SCDT pin should be connected to PDO.

    Regards
