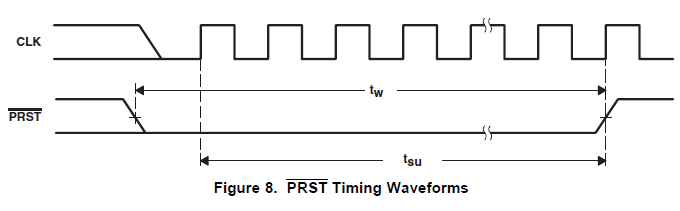

I would like to know about "Figure 8. PRST Timing Waveforms" of XIO2001.
Data sheet (SCPS 212 I) It is the content written in Figure 8 on page 25.

What is meant by "tw" here and how many values?

What is the value of "tsu" here means?

Regaeds.

k-hashi.

over 6 years ago

0 Roberto Diaz over 6 years ago

TI__Genius 11255 points

Hello K-hashi,

Thanks for contacting TI, we are taking a look at your request, we'll send our comments shortly.

Regards,
Roberto

0 Roberto Diaz over 6 years ago in reply to Roberto Diaz

TI__Genius 11255 points

Hello K-hashi,

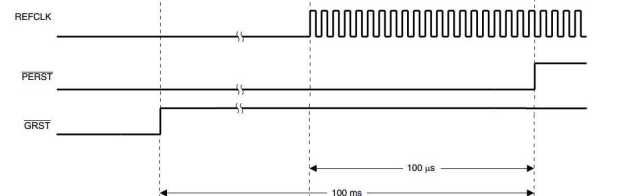

The "tsu" is the time that the clk needs to be stable before to rise PRST. this value is 100us

Regards,

Roberto

0 Ken Hashi over 6 years ago in reply to Roberto Diaz

Intellectual 790 points

Hello Roberto,

Thank you for your reply.
Does your explanation indicate "/ PERST" of the input signal?
Figure 8 in the data sheet describes the output signal "/ PRST".

Which one is correct?
In your diagram "/ PERST" is written, and your sentence is confused because it is written "/ PRST".

Best regards,
k-hashi

0 Ken Hashi over 6 years ago in reply to Roberto Diaz

Intellectual 790 points

Hello Roberto

I think that the figure shown in your answer is Figure 4 in Datasheet P.22.

Please tell me about figure 8 on datasheet P.25.

Regards.

k-hashi.
