SN65DSI84: Distribution Data for Differential Output |Vod| Between Lanes

Sadanori Kato

Guru 36490 points

Part Number: SN65DSI84

Hi,

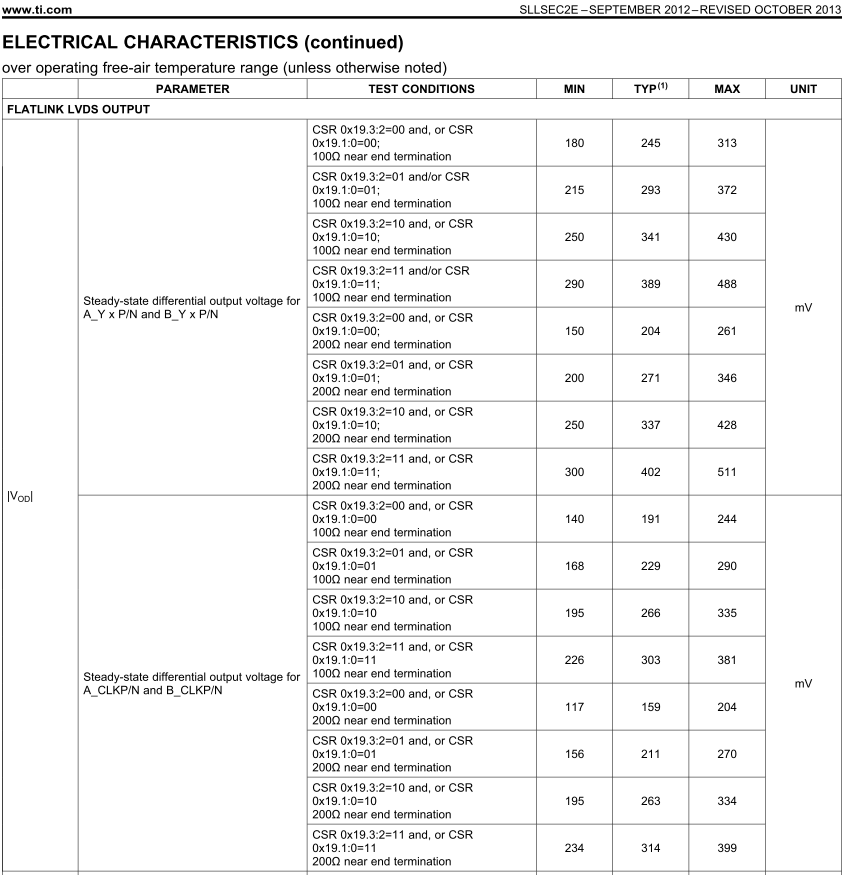

Could you please share the distribution data for the differential output |Vod| between the lanes in the same device ?

Best regards,
Kato

over 5 years ago

0 Ikechukwu Anyiam over 5 years ago

TI__Mastermind 35130 points

Hi Kato-san,

We don't have this type of characterization data for this device.

Regards,
I.K.

0 Sadanori Kato over 5 years ago in reply to Ikechukwu Anyiam

Guru 36490 points

Hi I.K.-san,

Thank you for your prompt reply.

Please provide the expected value as design if possible.

Best regards,
Kato

0 Ikechukwu Anyiam over 5 years ago in reply to Sadanori Kato

TI__Mastermind 35130 points

Hi Kato-san,

I will check to see if there was any comparison data taken between lanes and will get back to you shortly.

Regards,
I.K.

0 Sadanori Kato over 5 years ago in reply to Ikechukwu Anyiam

Guru 36490 points

Hi I.K.-san,

Thank you for your support.

I am looking forward to getting the detailed information from you soon.

Best regards,
Kato

0 Ikechukwu Anyiam over 5 years ago in reply to Sadanori Kato

TI__Mastermind 35130 points

Kato-san,

After looking through the test data my best estimate for max VOD difference between lanes is 6.63mV. Please note that this value only comes from me comparing existing test data and is no way a guarantee.

Regards,
I.K.

0 Sadanori Kato over 5 years ago in reply to Ikechukwu Anyiam

Guru 36490 points

Hi I.K.-san,

Thank you for confirming.

I understood.

Best regards,
Kato
