ULN2003A tPLH and tPHL vs temperature

Kuramochi Tadahiko

Guru 28715 points

Hi,

I'm being requested the data from my customer.

Could you please provide the data of the tPLH and tPHL vs temperature for me?

If the data cannot be shown on E2E, please send an e-mail to me(kuramochi@fujiele.co.jp).

Thanks,

Kuramochi

0 Cameron Phillips over 8 years ago

Hello,

We will have to gather this data in the lab. We should get back to you by the end of the week

Thank you,

Cameron

0 Cameron Phillips over 8 years ago

Howdy,

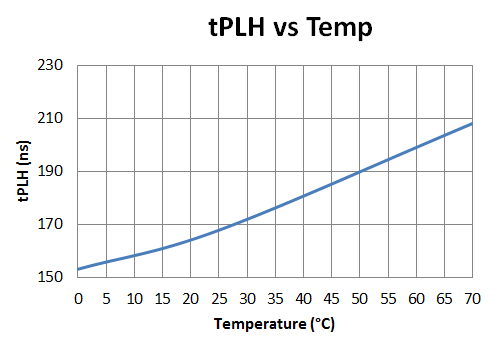

We have collected the data for the propagation delay. I characterized it in two graphs shown below

Be advised that this data is taken on typical samples and therefore is not guaranteed by the datasheet.

Thank you,

Cameron Phillips

0 Kuramochi Tadahiko over 8 years ago in reply to Cameron Phillips

Guru 28715 points

Phillips-san,

Thank you for your support.
Can you give me the data by .xls ?

Thanks
Kuramochi

0 Michael J Schultis over 8 years ago in reply to Kuramochi Tadahiko

Kuramochi-san,

We do not provide the actual data for the measured specifications.
Is the plot not satisfactory?

Best,
Michael
