TCA9509 Exposed thermal pad

NAOKI AOYAMA

Guru 11215 points

Other Parts Discussed in Thread: TCA9509

Hello,

Our customer use the TCA9509, with QFN package.

The customer will solder the pad to GND.

Could you give me the recommended land pattern for soldering?

Best Regards,

Naoki Aoyama

0 fhoude over 7 years ago

Hello Naoki-San,

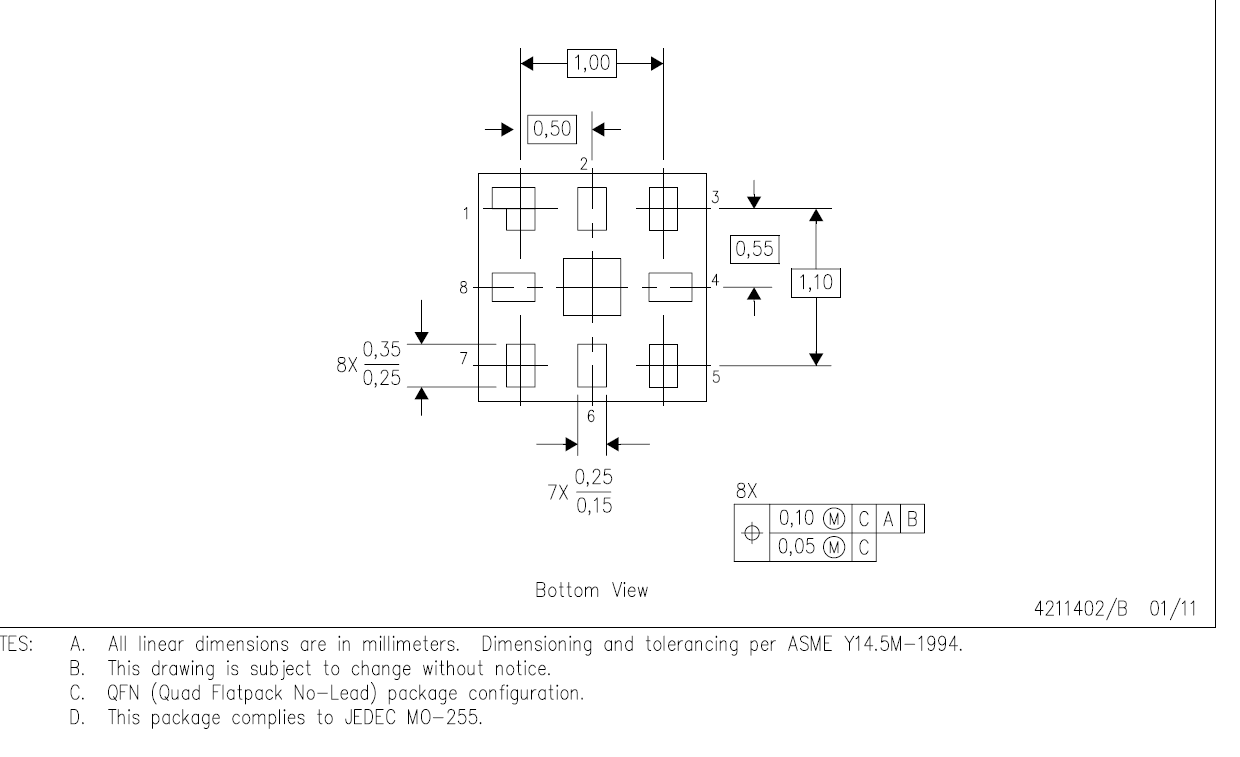

The pads will be rectangular with a 0.3mm x 0.4mm, with the exception of the center pad being a 0.4mm x 0.4mm. See drawing below

0 NAOKI AOYAMA over 7 years ago in reply to fhoude

Guru 11215 points

Hello,
Thank you for your reply.
I will feedback the customer the information.
Thanks,

Naoki Aoyama
