Wrong Output Signal, TXB0106

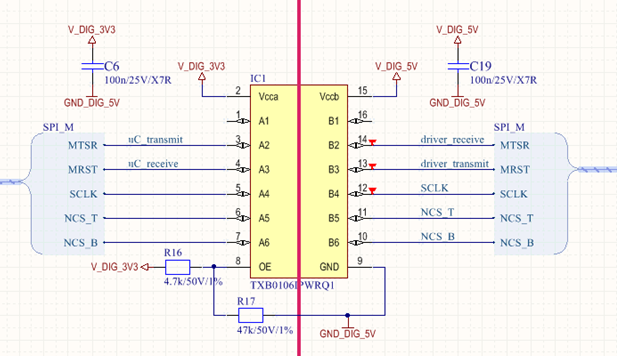

Hi

Is there pull-up or pull-down resistor on the output signal?  Could you give PCB trace length of output signal?

Thanks

Wei

Hi,

there is no pull-up or pull-down resistor on the output signal. The trace lengt of the output signal is about 28mm from the level-shifter to the output-connector...

Best regards

Michael

Hi Michael,

Could you please check the PCB trace length? Is it 28mm or 28 cm?

Thanks

hi,

28mm is the correct length...

Michael

Hi Michael,

Could please check input signal waveform? It is better to post the snapshot.

There is a requirement about rise rate. It should be less than 40ns/V.

Thanks

Wei

Hi Wei,

i have made two snapshots for you, one from the whole signal and another one from the rising flank...

Best regards

Michael

Hi Michael,

I don't have solution in my mind either. But some testing may can help us to find the solution.

1. Could you change input signal from 2MHz to 4MHz?

2. Could you please isolate the TXB0106 wiht backend device?

Thanks

Wei
