DS110DF111: DS110DF111 application question

Sammi Shang
Expert 4450 points
Part Number: DS110DF111
Other Parts Discussed in Thread: USB2ANY

Dear team,

Customer has some questions when using DS110DF111. Would you kindly give some suggestion?

1. How to look at the result of eye monitor? Through I2C?

2. The application situation is NXP MCU--XFI<-->Retimer<-->SFI--SFP+. Is it OK?

3. When DS110DF111 connect with SFP+, there is still coupling capacitor inside SFP module, will the IC need to add coupling capacitor again? The design guide of this IC have added the capacitor.

Thanks.

Sammi

  • 0
    TI__Mastermind 19135 points

    Hi, my inputs below.

    1. How to look at the result of eye monitor? Through I2C?
    • That's correct. See procedure below
    • The application situation is NXP MCU--XFI<-->Retimer<-->SFI--SFP+. Is it OK?
      • Yes. The TI retimer supports both XFI and SFI interfaces
    • When DS110DF111 connect with SFP+, there is still coupling capacitor inside SFP module, will the IC need to add coupling capacitor again? The design guide of this IC have added the capacitor.
      • When the retimer is interfaced to SFP+ module no additional external AC coupling caps are needed, as the SFP+ module already has the caps
      • When the retimer is interfaced to chips with no integrated AC coupling caps then it is required to implement the external AC coupling caps on the system board

    Plotting an Eye Diagram

    The Eye Opening Monitor is capable of plotting an equalized, but non-retimed eye to represent the quality of signal that is going into the CDR block. This feature is useful for diagnosing gross signal integrity errors. The eye plot generated by the EOM cannot be used to extrapolate performance to bit error rates beyond 1e-7.

    The EOM generates the eye plot according to a 64 x 64 matrix. Each grid space in the matrix consists of a 16-bit word that represents the number of times the incoming data stream touches that particular phase and voltage level. The EOM under-samples the incoming data stream by recording the total hit count for each combination of phase and voltage, one grid space at a time.

    To configure the EOM to plot the eye diagram, sometimes called fast eye capture, use the following registers.

      • Step

        Register[bits]

        Value

        Description

        1

        0x3E[7]

        0

        Disable lock EOM lock monitoring

        2

        0x2C[6]

        0x11[7:6]

        0

        2’b xx

        Set the desired EOM vertical range as 2’b xx

        3

        0x11[5]

        0

        Power on the EOM

        4

        0x24[7]

        1

        Enable fast EOM

        5

        0x24[0]

        0x25

        0x26

        1

        When 24[0] is 1 begin read out of the 64 x 64 array, discard first 4 bytes
        This bit is self-clearing.

        6

        0x24[0]

        0x25

        0x26

        1

        Continue reading information until the 64 x 64 array is complete.

        7

        0x3E[7]

        0x2C[6]

        0x11[5]

        0x24[7]

        1

        1

        1

        0

        Return the EOM to its original state. Undo steps 1-4



        The data recorded from the Eye Opening Monitor (EOM) begins at (X, Y) position (0, 0) and proceeds to position (0, 63). Next, the Y-value is reset to 0 and the X-value is incremented. This process is repeated until the entire 64 x 64 matrix is read out.

  • 0 in reply to Rodrigo Natal
    Prodigy 20 points

    Is there a tool installed on the PC to display the eye chart ? Thanks

  • 0 in reply to user4768801
    TI__Mastermind 19135 points

    Hi,

    Yes, TI has a software GUI that enables the user to plot the retimer input eye diagram. See below.

    • First, you should download the SigCon Architect main installer and run it on your PC. See TI.com link below
    • You then need to download the 10G retimer GUI profiles (see download link on the above SigCon Architect page) and run the pertinent executable file on your PC.
    • You may refer to the retimer software user's guide for additional info

    Cordially,

    Rodrigo Natal

    HSSC Applications Engineer

  • 0 in reply to Rodrigo Natal
    Prodigy 20 points

    Hi
    How much loss can be supported on DS110DF111 XFI/SFI signal of input channels ？
    How much loss can be supported on DS110DF111 XFI/SFI signal of output channels ？

    songlin ren
    thanks

  • 0 in reply to user4768801
    TI__Mastermind 19135 points

    Hi,

    • The DS110DF111 Adaptive Rx EQ can provide up to 34 dB Boost at 5.65 GHz
    • The DS110DF111 adjustable TX De-Emphasis can provide up to 12 dB of boost

    Cordially,

    Rodrigo Natal

    HSSC Applications Engineer

  • 0 in reply to Rodrigo Natal
    Prodigy 150 points

    Hi ,

    Regarding the SW tool , post installing the software in PC do we need to have adaptor (usb to i2c)  to connect to the i2c bus ? In my design, i have below connection NXP - retimer - SFP+ and have i2c connection. I would like to use the software tool to plot the eye by capturing data from the board. Can you please advice here

    --

    Krish

  • 0 in reply to Srinivas H K
    TI__Mastermind 19135 points

    Hi,

    In order to use the current TI SigCon Architect software GUI you need a TI USB2ANY adapter to interface to the retimer via I2C. See link below for product and order info:

    http://www.ti.com/tool/USB2ANY

    You may reference the TI retimer EVM user's guide per link below.

     http://www.ti.com/lit/ug/snlu142a/snlu142a.pdf

    Cordially,

    Rodrigo Natal

  • 0 in reply to Rodrigo Natal
    Prodigy 10 points

    Hi,

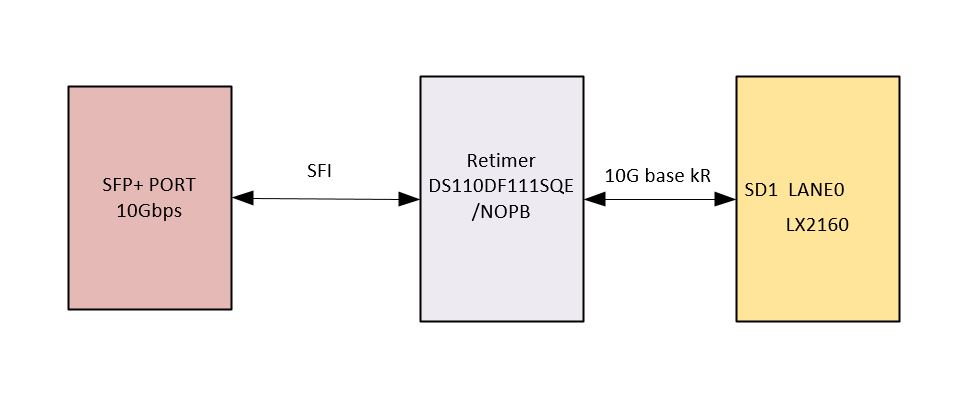

    Help to confirm whether the following applications can be implemented.See the attached picture for application scenario:10G base KR to SFI.
    If it can be used in this way, is the retimer chip register to be configured to select the physical interface SFI and 10 base KR

    songlin ren
    thanks

  • 0 in reply to ren songlin
    TI__Mastermind 19135 points

    Hi,

    The DS110DF111 indeed supports this application case. There is no KR or SFI specific settings that would need to be applied to the retimer. The user would simply need to the set the retimer for 10.3125Gbps CDR rate. Additionally, I would recommend to use adapt mode 2 (i.e. DFE enabled.)

    Regards,

    Rodrigo Natal

    HSSC Applications Engineer
