TRS3232E-Q1: HALF DUPLEX setting

Koji Hayashi92

Mastermind 6970 points

Part Number: TRS3232E-Q1

Hi TI-team

My customer wants to use TRS3232E-Q1 in half duplex.

Can it be used with a half-duplex line ?

Please answer the following questions when available.

1.What should the peripheral circuit be ?

2.Is Pull Up/Down necessary to fix the input side ?

3.I think it is necessary to connect the input and output with resistors.
How much protective element is required in the vicinity to protect the absolute maximum ratings In ± 25V and Out ± 13.2V ?

Best Regards,

Koji Hayashi

over 4 years ago

0 Hao L over 4 years ago

TI__Mastermind 25705 points

Koji,

Can you elaborate what you meant by half-duplex? Does the diagram look some like this?

I'm not sure if you can implement this by TRS3232E-Q1, since TX and RX cannot be enabled separately.

Please let me know what you think.

Regards,

Hao

0 Koji Hayashi92 over 4 years ago in reply to Hao L

Mastermind 6970 points

Hi Hao-san

Sorry for the late reply.

The connection is correct in Hao-san's diagram.

Could you disclose the equivalent circuit of TRS3232E-Q1 ?
In particular, I want to know the equivalent circuit for the DOUT and RIN pins.

Best Regards,

Koji Hayashi

0 Hao L over 4 years ago in reply to Koji Hayashi92

TI__Mastermind 25705 points

Koji,

Sure. Let me work on it and get back to you early next week.

Regards,

Hao

0 Hao L over 4 years ago in reply to Hao L

TI__Mastermind 25705 points

Koji,

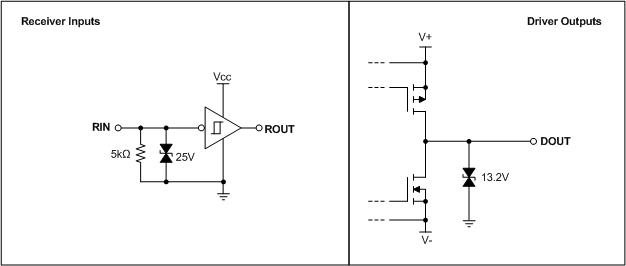

Here are the diagrams. Please let me know if you have more questions.

0 Koji Hayashi92 over 4 years ago in reply to Hao L

Mastermind 6970 points

Hi Hao-san

Thank you for response.

I will contact my customer.

Best Regards,

Koji Hayashi
