DS100MB203: Request a register review

we will review and five feedback soon

Hi Brian

I will wait your feedback.

best regards.

Hi,

I reviewed the register settings and I do not see a problem or error with them. Do note that the optimality of EQ and output settings being used here depends on the customer's specific application.

Cordially,

Rodrigo Natal

HSSC Applications Engineer

Hi Rodrigo

Thanks for your review.

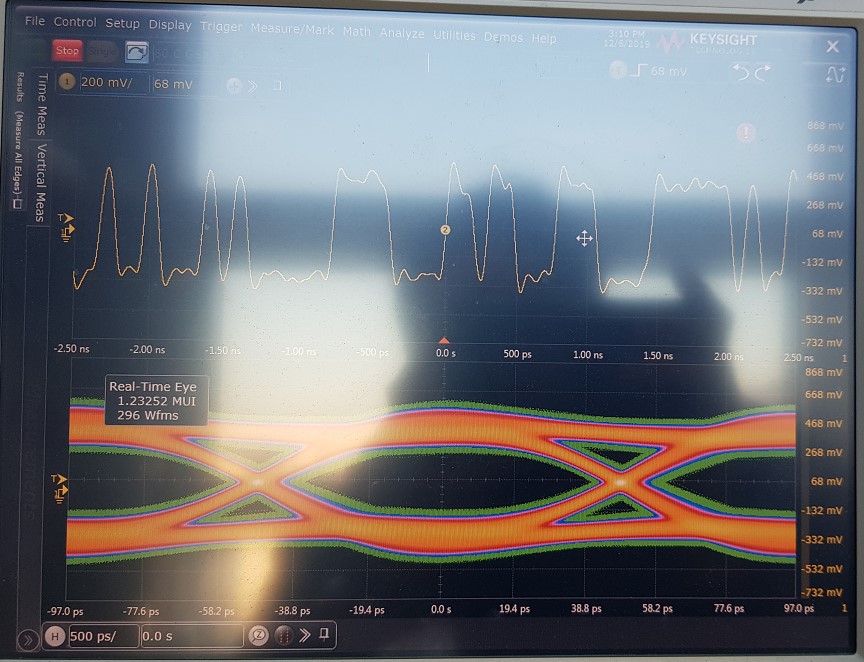

I Attached are eye diagrams of inputs and outputs.

Input

output

What should I review additionally if the output is as above?

Best Regards.

Here are some slight register updates based on the input waveform does not need equalization.

Change the equalization registers from 0x01 -> 0x00

What does the layout from the output of the DS100MB203 to the other system look like?  Could be some reflections closing down the eye opening.

As a second try I would change all the VOD registers from 0XEE -> 0XAE  (this may help to open the eye slightly as well

Regards,

Lee
