LMH1981 / Line transceiver for output signal

Toshiyuki

Other Parts Discussed in Thread: LMH1981, DS90LV019, DS90LT012A, DS91C180, SN65MLVD204A

Hi,

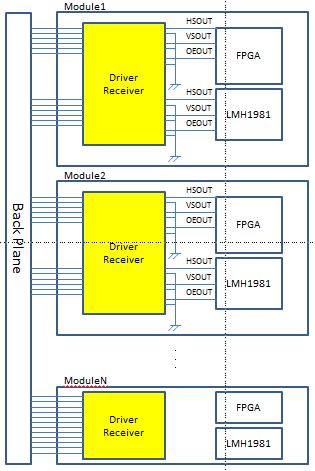

Customer is considering line transceiver, or driver and receiver for LMH1981 outputs. I have attached system configuration diagram.

Their system is 4k transmission equipment. Each LMH1981 has to control own and other FPGA via back plane.

What devices are suitable for driver and receiver ? In addition, could LVCMOS,TTL signal be used between modules ?

Best Regards,

Kato

over 9 years ago

0 Alan O over 9 years ago

TI__Mastermind 32575 points

LMH1981 period jitter is in the 400~1500 ps p-p range, so the drivers/receivers don’t need to be very high performance. The HS/VS/OEOUT signals from LMH1981 are 3.3V LVCMOS levels, and have narrow sync pulse widths and low frame/line rates (Hz~kHz range).

Depending on the backplane characteristics, I would suggest a triple(quad)-channel LVDS driver/receiver for low-power & noise immunity with DC-coupling due to the low frequency/duty cycle.

Regards,

Alan

0 Toshiyuki over 9 years ago in reply to Alan O

Mastermind 7075 points

Hi, Alan -san,

Thank you for the answer.

What is the recommendable LVDS driver/receiver for the system ?

Best Regards,

kato

0 Nasser Mohammadi over 9 years ago in reply to Toshiyuki

TI__Guru* 88835 points

Kato-San,

Please consider DS90LT012A or DS90LV019. Please take a look at the spec for these two devices.

Regards,,nasser

0 Toshiyuki over 9 years ago in reply to Nasser Mohammadi

Mastermind 7075 points

Nasser -san,

Thank you for your information.

Each LMH1981 has to control own and other FPGA via back plane.So, I considering Multipoint-Low-Voltage Differential
Signaling (M-LVDS) is needed.Is my understanding correct ? Please let me know the recommendable M-LVDS.

Best Regards,

Kato

0 Nasser Mohammadi over 9 years ago in reply to Toshiyuki

TI__Guru* 88835 points

Kato-San,

Please note the link below. We have several MLVDS devices:
http://www.ti.com/lsds/ti/interface/lvds-m-lvds-ecl-cml-products.page#o7=Multipoint LVDS (MLVDS/BLVDS/LVDM)

Also, please take a look at DS91C180 as well to see if it meets customer need.

Regards,,nasser

0 Toshiyuki over 9 years ago in reply to Nasser Mohammadi

Mastermind 7075 points

Nasser - san,

Thank you for the information.

After all customer is considering Half Duplex Transceiver. Could we propose SN65MLVD204A for their system ? Because the device is a low-cost Transceiver.

Best Regards,

Kato

0 Nasser Mohammadi over 9 years ago in reply to Toshiyuki

TI__Guru* 88835 points

Kato-it San,

I looked at the SN65LVD204A and it is rated for 50MHz clock and below. LMH1981 video frame sync signals are in order of KHz. So the customer should be able to use SN65LVD204A.

Regards,,nasser
