Dear Sir,
Would you pls help for MAX3243,
- VCC (pin26)=3.3V, what voltage will shows in V+ and V-?
- VCC (pin26)= 3.3V, what voltage will shows in V+ and V-?

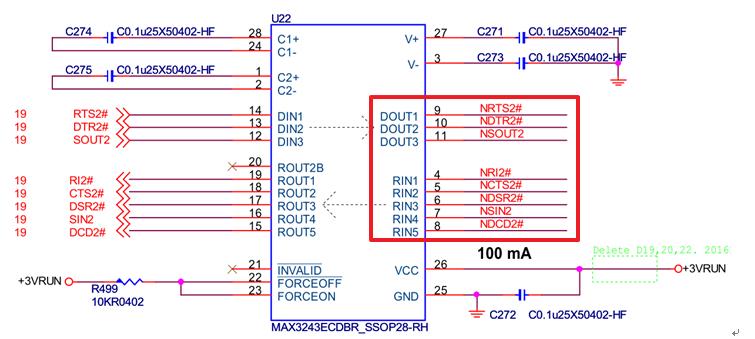

- Charge pump V+/V- will inference voltage level in below red block?
This thread has been locked.
If you have a related question, please click the "Ask a related question" button in the top right corner. The newly created question will be automatically linked to this question.
Dear Sir,
Would you pls help for MAX3243,
Ian,
[V+ and V-] are [+5.5V and -5.5V]
DOUT will be same as V+ or V-
RIN is always 5k resistor to ground regardless of V+, V- or Forceon/off or VCC.
