SN75469: Safe Operation Area(SOA) of SN75469

Part Number: SN75469

Dear Sirs,

My customer asked us about  Safe Operation Area(SOA) of SN75469.

Q1:Please let me know about SOA (safe operation area).

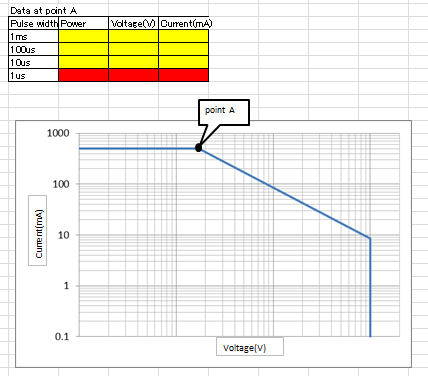

Q2:Please let me know the values in the table for point A shown in the figure.

Best Regards,

Y.Hasebe

  • Yoshiki-san,

    We will look into your request.

    Thank you for your patience.

    Regards,
    Ronald Michallick
    Linear Applications

    TI assumes no liability for applications assistance or customer product design. Customer is fully responsible for all design decisions and engineering with regard to its products, including decisions relating to application of TI products. By providing technical information, TI does not intend to offer or provide engineering services or advice concerning Customer's design. If Customer desires engineering services, the Customer should rely on its retained employees and consultants and/or procure engineering services from a licensed professional engineer (LPE).



  • In reply to Ron Michallick:

    Hello Yoshiki-san,

    Apologies for the delay through the US holiday season.

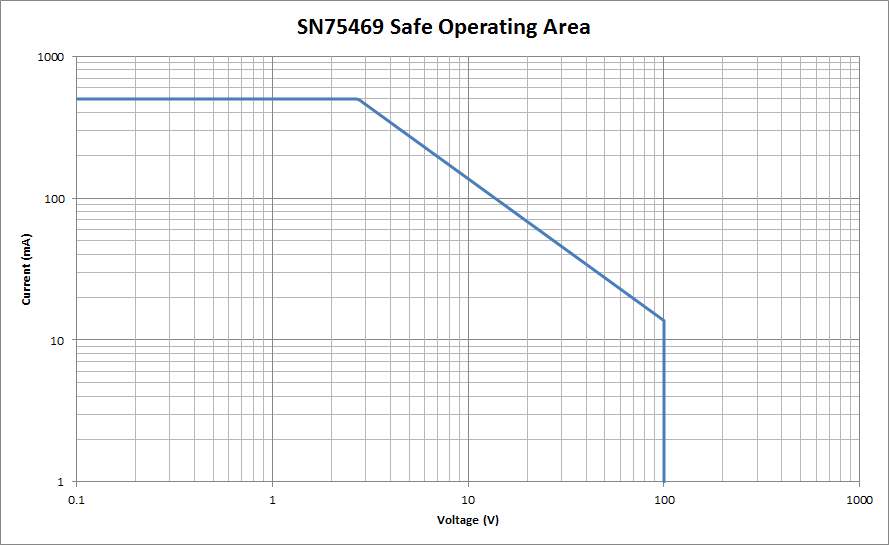

    Please see the SOA below for the SN75469 device. Does this help to answer your question?

    Best,
    Michael

    Have a question about Logic ICs? Get it answered with our newly updated Logic FAQ page

    ------------------------------------------------------------------------------------------------------------------
    Please click the Verify Answer button on this post if it answers your question
    ------------------------------------------------------------------------------------------------------------------

  • In reply to Michael J Schultis:

    Hello Michael-san,

    Thank you for you kindly reply.

    And I apologize for the late reply by holiday.

    I understand  answer of Q1.(Please let me know about SOA (safe operation area))

    Then, do you know about Q2?(Please let me know the values in the table for point A shown in the figure.)

    Best Regards,

    Y.Hasebe

  • In reply to yoshiki hasebe:

    Hello Hasebe-san,

    The plot shows that the point A is at about 2.8V.

    Since the safe operating area is based on a calculation from the thermal limit of the device, we don't have data to support short pulse duration stresses on the device.

    It would be my recommendation to stay within the SOA curve regardless of the pulse duration.

    Best,
    Michael

    Have a question about Logic ICs? Get it answered with our newly updated Logic FAQ page

    ------------------------------------------------------------------------------------------------------------------
    Please click the Verify Answer button on this post if it answers your question
    ------------------------------------------------------------------------------------------------------------------

  • In reply to Michael J Schultis:

    Hello Michael-san,

    Thank you for your reply.

    I understand your comments.
    I will send your comments to my customer.

    Best Regards,
    Y.Hasebe
