Using SN74LVC1G123 retrigglerable monostable multivibrator to adjust the duty cycle of a existing square wave.

Other Parts Discussed in Thread: SN74LVC1G123

 Hello TI experts,

SN74LVC1G123 have three input pins : CLR,  A,  B.

I have a square wave, this signal input to B. I want to expand its duty cycle,  Pin Q will output the square wave which is expanded duty cycle.

If I need Q output the square wave after power up 15 seconds.  I have a signal to control the output of Q.The signal input to pin CLR.

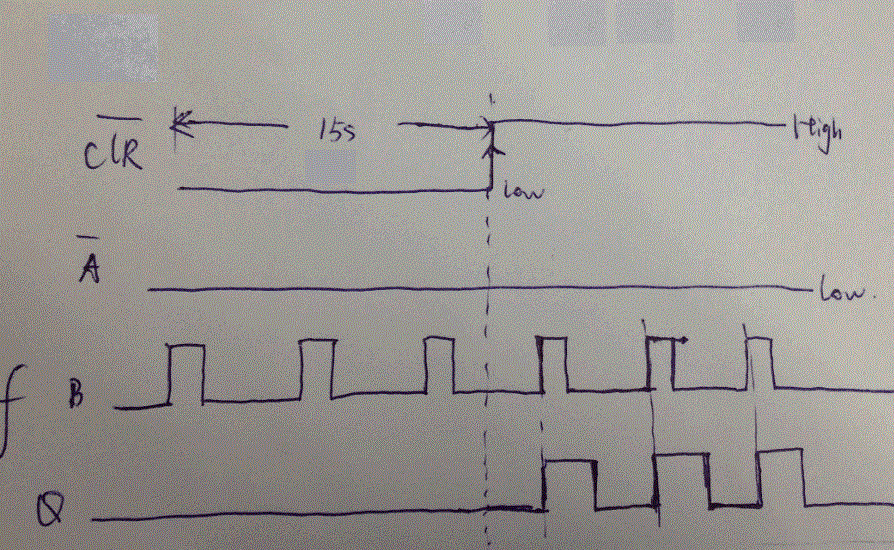

Can I get the wave form which is output from Q as attached picture.
