SN74LVC1G07: About Vol parameter at Iol=1mA

Sho Ogane

Part Number: SN74LVC1G07

Hi all

Do you have the Vol maximum value in the following case?
Vcc=3.3V, Iol=1mA
-40℃ to +85℃:Vol(max)=?
-40℃ to +125℃:Vol(max)=?

If you have this parameter, please tell me it.

Best Regards,
Sho

over 7 years ago

0 Emrys Maier over 7 years ago

TI__Guru* 96591 points

Hello Sho,

I have notified the appropriate engineer, he will get back with you today.

0 Aaron Goodson over 7 years ago

TI__Expert 6330 points

Hi Sho,

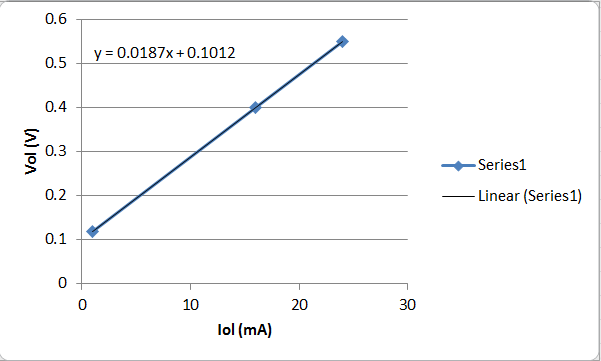

Based on the information provided in the datasheet, I was able to do a linear interpolation and approximate the Vol for Vcc = 3.3V and Iol = 1mA to be about 0.12V. This value is for both temperature ranges as well. You can see the plot for the line below.

Regards,

Aaron Goodson

0 Sho Ogane over 7 years ago in reply to Aaron Goodson

Genius 5575 points

Hi Aaron san, Emrys san

Thank you for the quick reply.
I understood the Vol value.

Best Regards,
Sho
