Compiler/INSTASPINFOCMOTORWAREGUI: Motorware GUI different from tutorial series

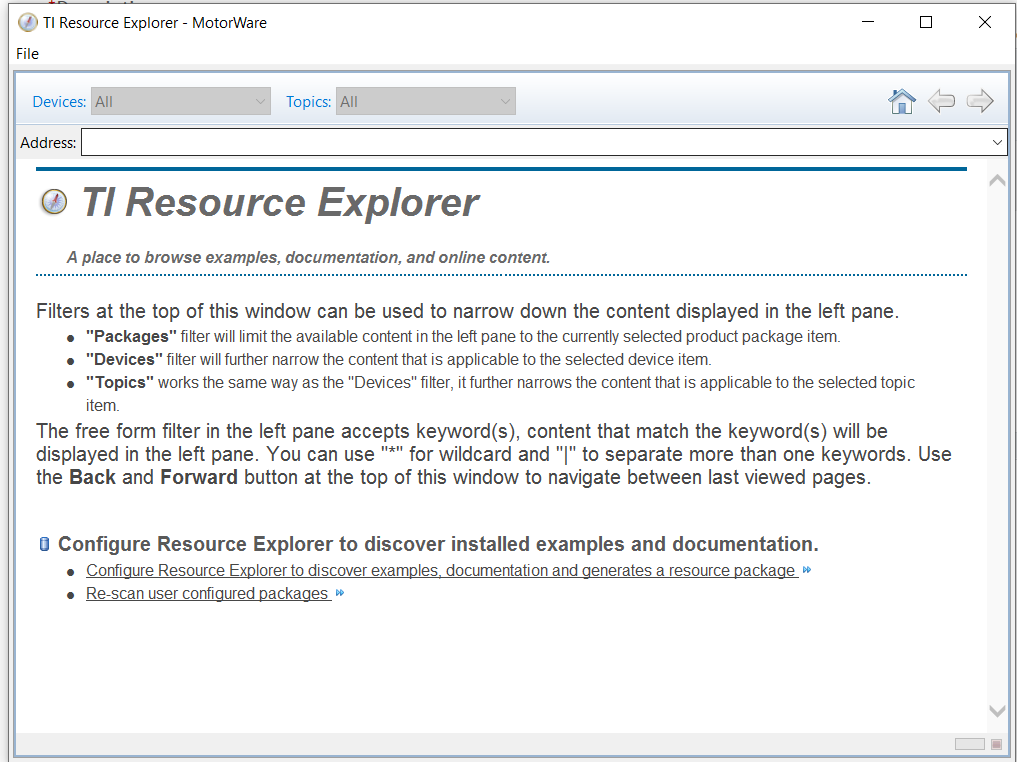

There are a couple different GUIs associated with InstaSPIN. The one you shared a screenshot of is just for browsing example projects and documentation. Can you get more specific about which section of video showed the GUI so I can make sure I'm looking for the right one? Was it this GUI?

http://www.ti.com/tool/MOTORKITSCNCD69MISO

Whitney

Hello Whitney,

I am using following hardware -

1. http://www.ti.com/tool/BOOSTXL-DRV8301?keyMatch=BOOSTXL-DRV8301&tisearch=Search-EN-everything&usecase=part-number

2. http://www.ti.com/tool/LAUNCHXL-F28027F

And I am referring to following Video Training series -

So Whitney guide me which GUI and Software should refer to so that I can use my Hardware completely.

My Project Aim is to run a BLDC motor with Sensorless FOC algorithm

Regards

Yash

Those videos are a bit older than the current version of MotorWare, so things may look a little difference, but they should still be helpful. There are two main GUIs I think you'll find most useful (beyond CCS). There's the motorware.exe that you've already shown a screenshot of and the INSTASPINUNIVERSALGUI.

There is a known issue with the motorware.exe where sometimes it fails to display the left pane correctly, so in that case it would look a bit different than what is shown in the videos. Sometimes this can be fixed by deleting the metadata folder located here: C:\ti\motorware\motorware_1_01_00_18\eclipse\workspace or by reinstalling. If not though, you can always just navigate through the directory structure to find the docs and projects you'll need.

There are getting started guides for all the GUIs under motorware_1_01_00_18\docs\guis. The lab guide under motorware_1_01_00_18\labs is a good place to start too.

Whitney
