InstaSpin Motion with Analog Encoder

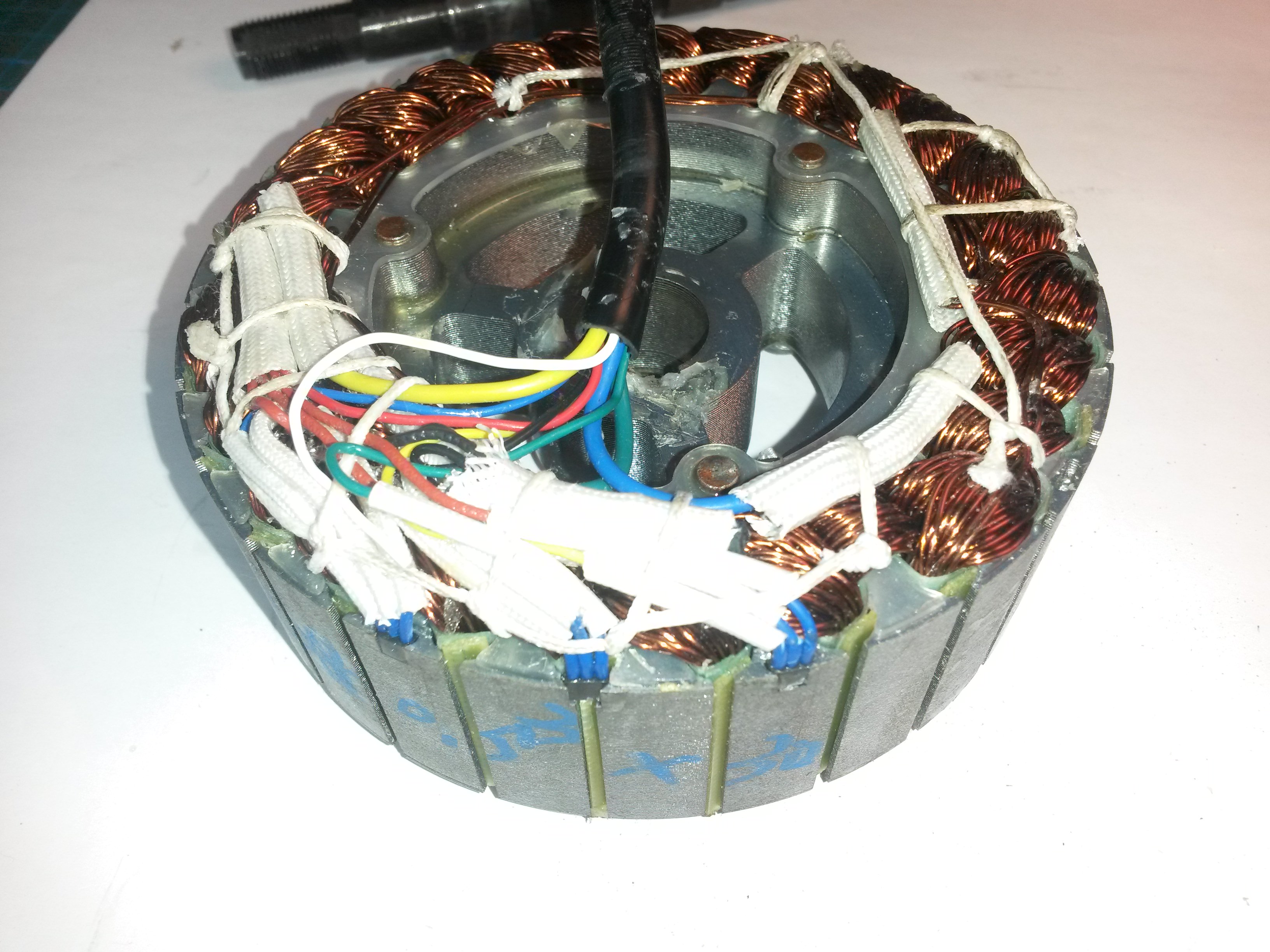

Andrew,

InstaSPIN-MOTION can work with nearly any type of encoder. The example code is only provided for quadrature encoders.

You would need to write code that would translate the signals from your encoder into the correct signals expected by InstaSPIN-MOTION.

Specifically the electrical angle is what is required. The electrical angle should be a Q24 value that varies between 0 and 1 where 0 is aligned to an electrical angle of 0 on the motor (A phase is aligned with d-axis).

Thank you,

I found the project TIDA-00176, but there is no example of the source code.
Can I download the source code?
I want integrated the code in MotorWare.

Andrew.

Andrew,

there is firmware listed on the TID folder in your link

Software (1)

Thank you,

this file can be found in the examples, but this is not the source code. And can not integrate this into MotorWare.

Andrew

right you are...I think for support reasons they don't like to provide source with TI Designs. It's just supposed to be software that shows the HW is working.

I'm trying to find the owner of the design to see if they can share with you.

Andrew,

Thank you for your interest in TIDA-00176. We used that specific code only test validate the TI design.

The good news is that the C2000 controlSUITE offers a library for Sin/Cos encoders and documentation C2000™ Position Manager SinCos Library
as well:

www.ti.com/.../controlSUITE
www.ti.com/.../sprui54.pdf

Regards,
Martin
