RF1AIFCTL1 is undefined

Omer Faruk ZORLU

Other Parts Discussed in Thread: MSP430F5419, SIMPLICITI, CC430F6137

I have ez430 sport watch model number is msp430f5419. working on iar embedded workbrech ide. opened sample iar examples on my "C:\Program Files\Texas Instruments\eZ430-Chronos\Software Projects\Chronos Watch\IAR\Sports Watch\" installed from Installation CD. Compiled "915 MHZ - Restiricted ..." but cant update firmware file over wireless orelse taken errors are bellow when i compiling "915 MHZ - Unrestiricted ..."

Error[Pe020]: identifier "RF1AIFCTL1" is undefined C:\Program Files\Texas Instruments\eZ430-Chronos\Software Projects\Chronos Watch\IAR\Sports Watch\simpliciti\Components\mrfi\radios\family5\mrfi_radio.c 436 Error[Pe020]: identifier "RFINSTRIFG" is undefined C:\Program Files\Texas Instruments\eZ430-Chronos\Software Projects\Chronos Watch\IAR\Sports Watch\simpliciti\Components\mrfi\radios\family5\mrfi_radio.c 436 Error[Pe020]: identifier "RF1AINSTRW" is undefined C:\Program Files\Texas Instruments\eZ430-Chronos\Software Projects\Chronos Watch\IAR\Sports Watch\simpliciti\Components\mrfi\radios\family5\mrfi_radio.c 437 Error[Pe020]: identifier "RF1AINSTRB" is undefined C:\Program Files\Texas Instruments\eZ430-Chronos\Software Projects\Chronos Watch\IAR\Sports Watch\simpliciti\Components\mrfi\radios\family5\mrfi_radio.c 440

Please help me, thanks.

over 11 years ago

0 BrandonAzbell over 11 years ago

TI__Guru 63205 points

The MSP430F5419 does not have these registers, which is a reason why you are getting these errors. The Chronos watch is not based on the MSP430F5419, but rather on the CC430F6137. I would suggest you check the setup again with the IAR project.

0 Omer Faruk ZORLU over 11 years ago in reply to BrandonAzbell

Prodigy 50 points

CC430F6137 is not listed on device selection list. what can i do?

0 BrandonAzbell over 11 years ago in reply to Omer Faruk ZORLU

TI__Guru 63205 points

You should check the version of IAR that you are using and also check with IAR Systems regarding the version that supports the CC430F6137.

http://www.iar.com/

The latest version advertised on IAR's website indicates support for the CC430F6137.

0 Jens-Michael Gross over 11 years ago in reply to Omer Faruk ZORLU

Guru 227245 points

It's not obvious, but the CC430F6137 is part of the 5x family. It's basically a 5x device with LCD driver (6x) and RF transceiver (CC).
So you should look further down the list.

If it's not in there and you don' twant to upgrade the compiler, then you may use the 5137 and add the register definitions for the LCD by your own (if you need them).
I don't know whether the debugger will complain then, but the generated code should fit.

0 Chester Gillon over 11 years ago in reply to Jens-Michael Gross

Guru 92251 points

Jens-Michael Gross said:
It's not obvious, but the CC430F6137 is part of the 5x family. It's basically a 5x device with LCD driver (6x) and RF transceiver (CC).
So you should look further down the list.

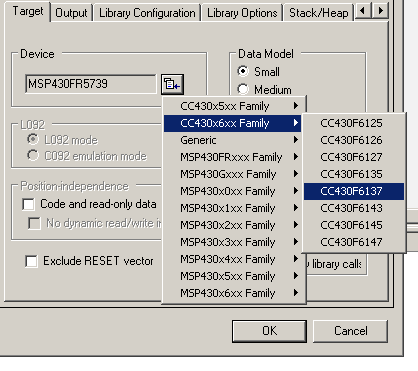

Actually, IAR places it in a CC430x6xx Family. The following was taken with IAR KickStart 5.40.3:

0 Omer Faruk ZORLU over 11 years ago in reply to Chester Gillon

Prodigy 50 points

used latest evulation version of iar. can't build 915 mhz unrestricted based project. anyone share stable ez430 chronos 915 mhz project here? guess my project options are invalid. problem occurs when building project.

0 Chester Gillon over 11 years ago in reply to Omer Faruk ZORLU

Guru 92251 points

Omer Faruk ZORLU said:
used latest evulation version of iar. can't build 915 mhz unrestricted based project. anyone share stable ez430 chronos 915 mhz project here? guess my project options are invalid. problem occurs when building project.

Do you mean this error:

Linking
Fatal Error[e89]: Too much object code produced (more than 0x2000 bytes) for this package
Error while running Linker

Or This error:

Linking
Error[e24]: Segment DATA16_AN (seg part no 1, symbol "TA0CCTL2" in module "stopwatch", address [346-347]) overlaps segment DATA16_AN (seg
part no 4, symbol "_A_TA0CCTL2_L" in module "timer", address [346-347])
Error while running Linker

Or a different error?

0 Omer Faruk ZORLU over 11 years ago in reply to Chester Gillon

Prodigy 50 points

Error[e24]: Segment DATA16_AN (seg part no 1, symbol "TA0CCTL2" in module "stopwatch", address [346-347]) overlaps segment DATA16_AN (seg part no 4, symbol "_A_TA0CCTL2_L" in module "timer", address [346-347]) Error while running Linker

0 Omer Faruk ZORLU over 11 years ago in reply to Chester Gillon

Prodigy 50 points

Error[e24]: Segment DATA16_AN (seg part no 2, symbol "TA0R" in module "stopwatch", address [350-351]) overlaps segment DATA16_AN (seg part no 4, symbol "_A_TA0R_L" in module "BRRX_Radio", address [350-351]) Error while running Linker

0 grga over 9 years ago in reply to Omer Faruk ZORLU

Intellectual 560 points

I have this error "Error [e24]" , any suggestion?

Regards

0 Jens-Michael Gross over 8 years ago in reply to grga

Guru 227245 points

Apparently, two modules declare a 'variable' at the same address. From the name, both apparently mean the same, but the linker doesn't know. For the linker, "TA0R" and "_A_TA0R_L" are two different things that won't fit on the same memory location.
It might have to do with the different modules compiled with different compiler revisions, but that's just a guess.
