DRV8301: nFAULT turns low and reports error messages immediately after power on

This is the peripheral circuit of drv8301.

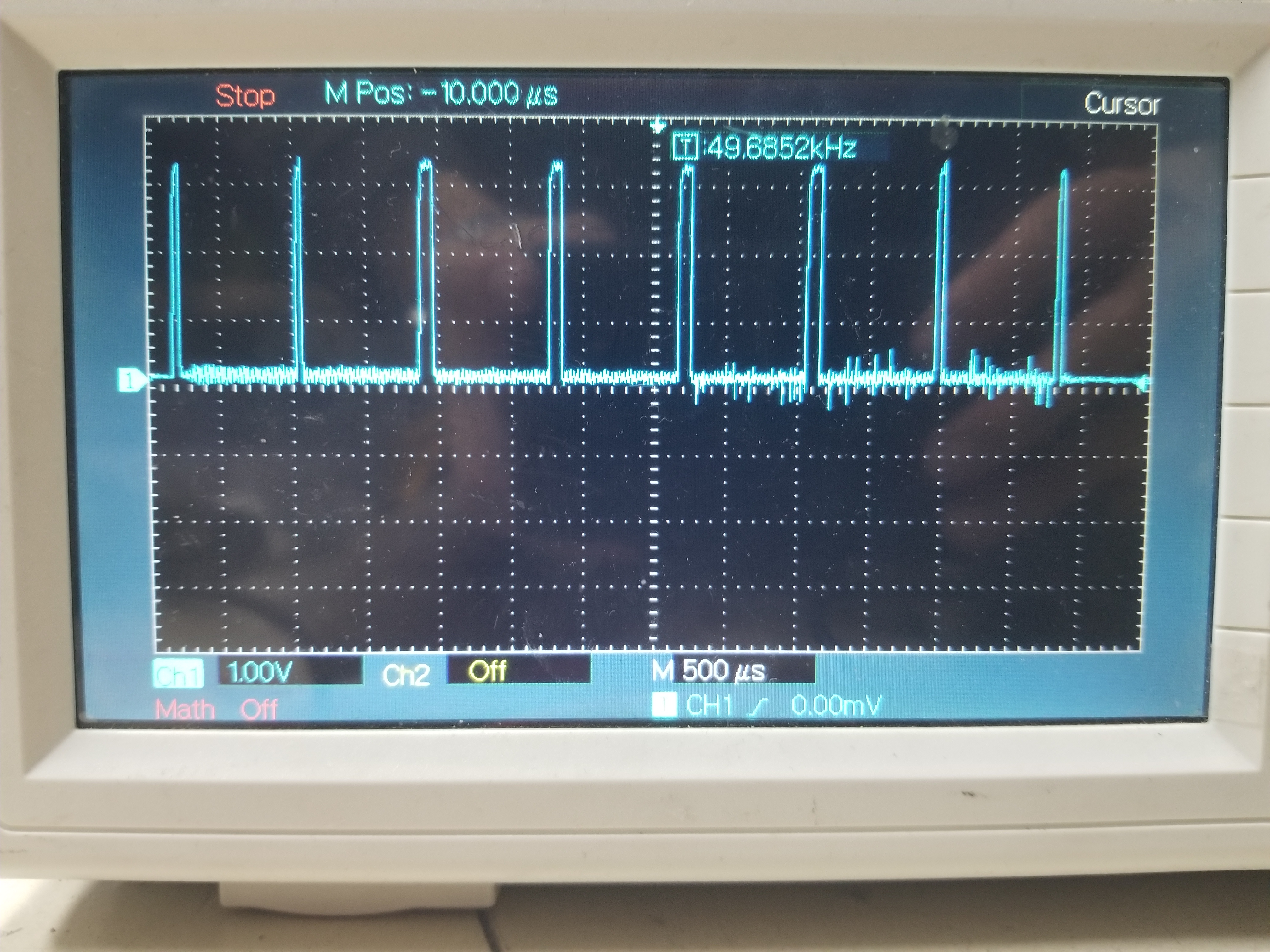

Here is the waveform of nFault pin.But we don't know why there's a spike

Hello,

Thanks for posting on the MD forum!

Could you explain your readback of register 2? The registers are 11 bits each but you mention "1001H" which is 13 bits long.

Regards,

-Adam

Dear Adam

Thanks for your reply;

The binary content of register 2 is 0001 0000 0000 0001,display as equipment [0] according to datasheet,but I don't know what it means.

Thanks!

Beyso,

Can you share a scope capture of the SDO and SCLK together?

The SDO output word follows this format:

This means that if your readback is correct, you are actually reading register 0x02.

Regards,

-Adam

Dear Adam

I have left the lab recently. I may not get the SPI data until February 3.Hope you can wait patiently.

Thanks!

Hi,

Check the GVDD voltage level, same happens several times to me, Gate Voltage regulator dies and Gate Under Voltage flag set which also sets the nFaults then IC will be trash. I do not know the reason, may be TI guys suggest something.
