DRV2667: piezo protection : short circuit protection

Lakhal aymane

Intellectual 295 points

Part Number: DRV2667

Hi,

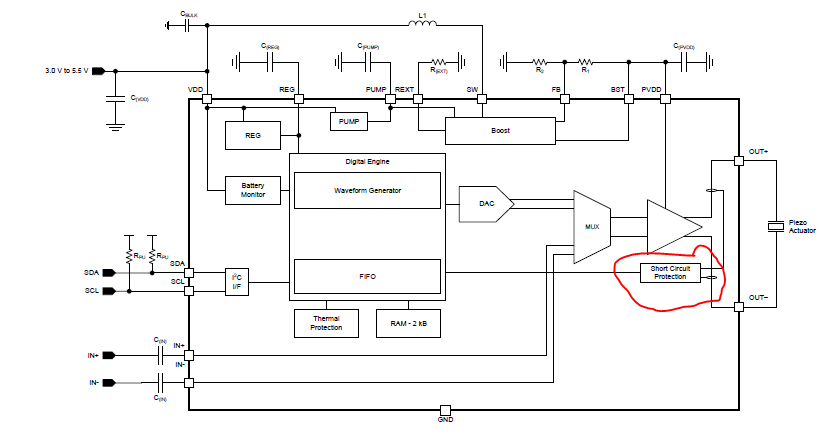

I am studying the internal structure of DRV 2667, and i found this circuit : Short circuit protection,

however, there is no specification or reference in the datasheet of DRV2667,

I want to know a reference or a specification,

Best regards

over 6 years ago

0 Lakhal aymane over 6 years ago

Intellectual 295 points

0 Ivan Salazar over 6 years ago in reply to Lakhal aymane

TI__Guru* 94935 points

Hi Lahkal,

You can find reference to short circuit protection in data sheet section 7.3.11.2.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators

0 Lakhal aymane over 6 years ago in reply to Ivan Salazar

Intellectual 295 points

Hi Ivan,

nothing is explained in this paragraph,

i want the reference of this module

best regards

Aymane LAKHAL

0 Ivan Salazar over 6 years ago in reply to Lakhal aymane

TI__Guru* 94935 points

Short circuit events produce overcurrent, so the overcurrent protection is the one enabled when short circuit happens.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators

0 Ivan Salazar over 6 years ago in reply to Ivan Salazar

TI__Guru* 94935 points

If you will create a short circuit at the output of the device the amount of current that triggers the protection won't matter that much. However the device would be able to output around 50mA.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators

0 Lakhal aymane over 5 years ago in reply to Ivan Salazar

Intellectual 295 points

Hi ivan,

I know it's differential protection, but I want a TI chip that has the same role or behavior.
I want a reference.

Best regards
Aymane LAKHAL

0 Ivan Salazar over 5 years ago in reply to Lakhal aymane

TI__Guru* 94935 points

Is my understanding correct that you want a separate IC (not DRV2667) that only performs overcurrent protection? If that's the case you could take a look at our portfolio from Isolation or Interface, and if there is no device that does what you're looking for, you should contact your local sales representative for more details on TI products.

Best regards,
-Ivan Salazar
Applications Engineer - Low Power Audio & Actuators
