DRV2605L: RTP mode

user5334163

Part Number: DRV2605L

Hello,

I use a DRV2605L to drive a ERM and I use the real time playback function.

but, when i input amplitude data to RTP_INPUT[7:0], the value of control register will change to 0xff or other and the ERM doesn't vibrate as the given amplitude.

Thanks

over 5 years ago

0 user5334163 over 5 years ago

Prodigy 30 points

Part Number: DRV2605L

Hi，

I have just started using the DRV2605L with ERM vibration motors and I have a question.

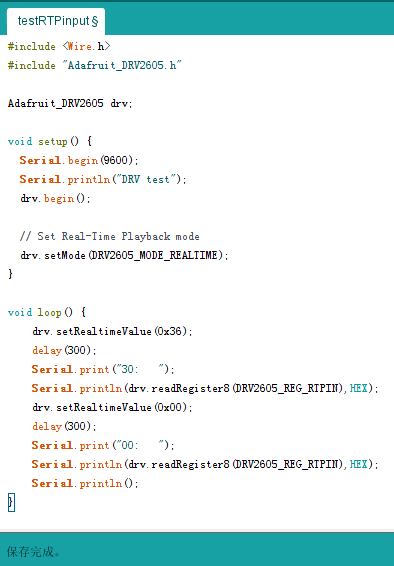

1) when i write amplitude data(0x30) to RTP_INPUT[7:0] and then read data from RTP_INPUT[7:0] ,the data isn't 0x30.

I wonder if there have some problems.

thianks,

chen

0 José Luis over 5 years ago in reply to user5334163

TI__Mastermind 20085 points

Hi,

The expert will be responding soon with further information.

Best Regards
José Luis Figueroa
Applications Engineer

0 Kelly Griffin over 5 years ago in reply to user5334163

TI__Expert 8711 points

Hi Chen,

This sounds like a software problem with your Arduino board. I am not sure how we can help here.. You can probe the I2C pins on an oscilloscope and see if the transactions are correct.
Make sure the board is not in software standby mode, which is the default mode.

0 user5334163 over 5 years ago in reply to Kelly Griffin

Prodigy 30 points

Thank you for your reply

when i unplug and repulg the pins on Arduino board，the erm will work as the given waveform.

Regards,

chen
