TMP441

TMP441

This question is answered
Murali Krishna1
Posted by Murali Krishna1
on Jun 27 2012 15:02 PM
Prodigy50 points

Hi

Could you please provide your answers on below questions.

1. Is there any possibility (programability) to have intermediate points between 1.042759 and 1.747977 (just not listed in the n-factor range table of TMP441), like 1.06XXX

2. Does auto beta correction is applicable to diode connected (base and collector shorted) PNP transistor?

Best Regards,

murali

Report Abuse
  • Reply
You have posted to a forum that requires a moderator to approve posts before they are publicly available.
All Replies
  • Chris Featherstone
    Posted by Chris Featherstone
    on Jun 27 2012 17:04 PM
    Verified Answer
    Verified by Murali Krishna1
    Expert5155 points

    Murali,

     Question:

    If an n-Factor of let’s say 1.05 is needed how do you determine the corresponding binary value to program the register?


    Answer:

    Using equation 3 above plug in nEFF = 1.05

    NADJUST = 300 – 300*1.008/1.05 = 12

    12 = 0xC = 1100

    Programming the register to 0000 1100 will provide the desired result of nEFF = 1.05.


    I will look into your second question and get back to you shortly.

    Best Regards,

    Chris Featherstone
    Linear Characterization Engineer
    High Performance Linear Products

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • Chris Featherstone
    Posted by Chris Featherstone
    on Jun 27 2012 18:30 PM
    Verified Answer
    Verified by Murali Krishna1
    Expert5155 points

    Murali,

    Yes auto beta correction is applicable to a diode connected sensor.

    On page 14 of the datasheet you will find the following:

    "If the Beta compensation Configuration Register is set to '1xxx' (beta compensation enabled) for a given channel at the beginning of each temperature conversion the TMP441/42 automatically detects if the sensor is diode-connected or GND collector connected, selects the proper beta range, and measures the sensor temperature appropriately."

    You will see in Table 8 that setting the value to '1xxx' in the Beta Compensation Register corresponds to the automatic detection while setting the value to '0xxx' not including 0111 corresponds to manual selection.

    Best Regards,

    Chris Featherstone
    Linear Characterization Engineer
    High Performance Linear Products

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • Murali Krishna1
    Posted by Murali Krishna1
    on Jun 28 2012 12:26 PM
    Prodigy50 points

    Hi Chris,

     In the below picture, the Terr data is not shown for diode connected transistor with auto beta compensation enabled.

    Could u please comment on this?

    Best Regards,

    Murali







    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • Chris Featherstone
    Posted by Chris Featherstone
    on Jun 28 2012 19:23 PM
    Verified Answer
    Verified by Chris Featherstone
    Expert5155 points

    Murali,

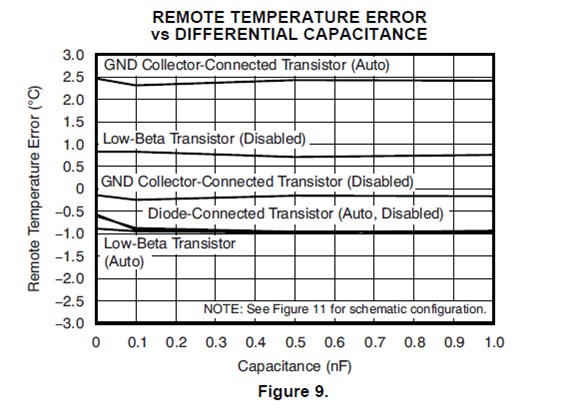

    In Figure 9 you will see that the remote temperature error vs capacitance is shown for a diode connected transistor. The plot for this applies to auto (enabled) and disabled.

    Best Regards,

    Chris Featherstone
    Linear Characterization Engineer
    High Performance Linear Products

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • Murali Krishna1
    Posted by Murali Krishna1
    on Jun 29 2012 13:04 PM
    Verified Answer
    Verified by Murali Krishna1
    Prodigy50 points

    Hi Chris,

    Thanks a lot for your immediate response.

    Now, I have clarity on the same.

    Best Reagrds,

    Murali

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
