BQ34110: Communication error occurs

Kengo.Y

Guru 10385 points

Part Number: BQ34110
Other Parts Discussed in Thread: BQSTUDIO

Hi team.

A communication error occured when my customer try to write firmware on bq34110 from bqStudio.

After that, they can not communicate to bq34110 with I2C.

Bqstudio does not recognize.

How can they communicate?

Sincerely.

Kengo.

over 4 years ago

0 Andy Liu (BMS) over 4 years ago

TI__Guru 52115 points

BQ34110 might work in the ROM mode.

Try the following steps and see if you can recover this bq34110 device.

a) Choose bq34110.bqz after the bqStudio is launched.

b) Go to the Programming tab.

c) Download the default srec file.

Andy

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Andy.

Thank you for your reply.

They couldn't communicate from the beginning with BqStudio.

Is there any improvement besides connecting to BqStudio?

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

Hi Kengo,

If bq341110 works in the ROM mode, its i2c address will be different and bqStudio might not be able to communicate with it.

Did they go to the Programming tab and download the default srec file?

Did they see any error message? If so, show me a screenshot.

Andy

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Hi Andy.

I got it.

I'll check with my customer.

By the way ,your said means that I can download the default srec file without being connected to BqStudio??

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

In general, bqStudio will put the gauge device into ROM mode before downloading the srec file. If the gauge device already works in the ROM mode, bqStudio should be able to program the srec file. I would suggest your customer have a try.

Andy

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Hi Andy.

We try according to your instructions, but it did not work.(It can not contact with BqStudio.)

Do you have any other way ?

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

Hi Kengo,

Do you have any screenshot to show me?

It seems like the device is probably bricked. It would necessary to replace this device with a new one.

Andy

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Hi Andy.

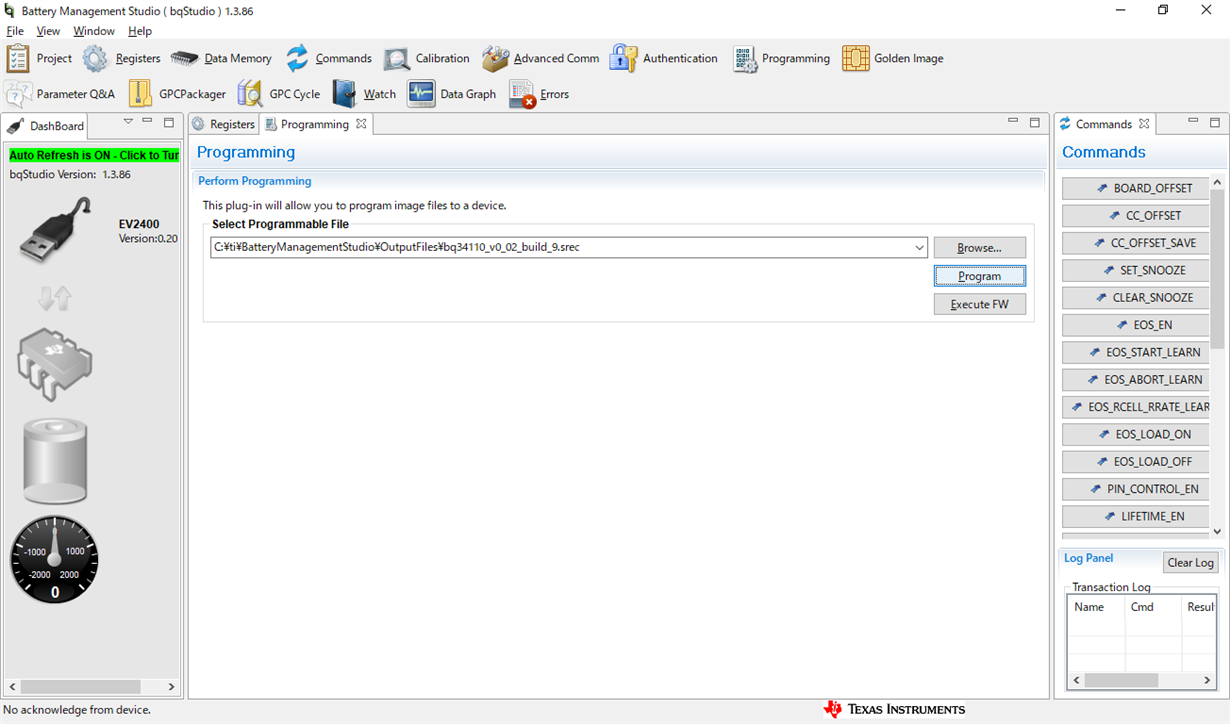

I got screenshot on BqStudio.

It seems to be no ACK.

I can't communicate with BqStudio, Could you tell me a different way?

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

As I mentioned before, the device is probably bricked. It would necessary to replace this device with a new one.

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Andy.

I have some questions about bricked.

1.What is bricked? Is it different from ROM mode?

2.When does bricked happen? (Can you reject it when shipping from TI?)

3.Is there no other way than to replace a bricked device?

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

Hi Kengo,

BQ34110 is a flashed based gauge and its firmware can be updated by customers. It can be bricked if the device is not programmed correctly.

Andy

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Hi Andy.

No, when my customer tried to write, BqStudio was not able to connect to bq34110.

Is there a brick before writing the program?

Sincerely.

Kengo.

0 Kang Kang over 4 years ago in reply to Kengo.Y

TI__Mastermind 24870 points

Hello Kengo,

Check if device is powered. As Andy mentioned, the device is probably bricked due to a bad programming. Get a new EVM and make sure you use the default image on ti.com and program again. Make sure not to lose power during the programming.

0 Kengo.Y over 4 years ago in reply to Kang Kang

Guru 10385 points

Hi Kang.

Thank you for your reply.

My customer said it was already bricked.

Unable to connect to bqStudio before they write the program.

Is it initial failure?

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

Hi Kengo,

Here are my suggestions if they want to check whether that device is really bad.

a) Find a good BQ34110EVM and make sure the bqStudio can communicate with the EVM without any problem.

b) Replace the BQ34110 device on the EVM with the device you want to check.

c) Use the bqStudio to communicate with the EVM again.

Andy

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Hi Andy.

This had already been done.

We can access with BqStudio by replacing device with another new device on the same board.

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

Hi Kengo,

Actually, my suggestion is NOT the same as what is already done.

Anyway, how many bad units have been found so far? If the customer really wants to know the root cause, what they can do is to work with a local TI Sales or FAE to submit a customer return job.

Andy

0 Kengo.Y over 4 years ago in reply to Andy Liu (BMS)

Guru 10385 points

Hi Andy.

Thank you for your reply.

They have only made 7 prototypes yet.

This error is one of them.

If the Bq34110 is bricked, is there only a discard?

Is there a way to return to the factory settings?

Sincerely.

Kengo.

0 Andy Liu (BMS) over 4 years ago in reply to Kengo.Y

TI__Guru 52115 points

Hi Kengo,

I don't see there exits an away to recover a brick device if it doesn't reply to any i2c command.

As I mentioned before, the customer needs to replace the device with a new one.

Andy

Power management

Power management forum

BQ34110: Communication error occurs
