bq24230 function during charging

K.Yaita

Other Parts Discussed in Thread: BQ24230

Hi Team,

I would like to ask about the following.

1) How does bq24230 operate if Vin(supply) is more than OVP threshold during charging?
I would like to know the state of Q1, Q2, safety timer and #CHG pin.

2) How does bq24230 operate if Vin(supply) is less than UVLO threshold or VBAT+VIN(DT) during charging?
I would like to know the state of Q1, Q2, safety timer and #CHG pin.

Your support would be appreciated.

Best Regards,
Yaita / Japan disty

over 8 years ago

0 Wenjia Liu over 8 years ago

TI__Expert 7730 points

In both OVP and UVLO states, the safety timer will be reset and /CHG is high because the charging is disabled. Q1 is off as the VIN is in HIZ mode, Q2 is on so the output can still be supplemented from the battery.

0 K.Yaita over 8 years ago in reply to Wenjia Liu

Guru 29690 points

Hi Wenjia-san,

Thank you for your continuous support.

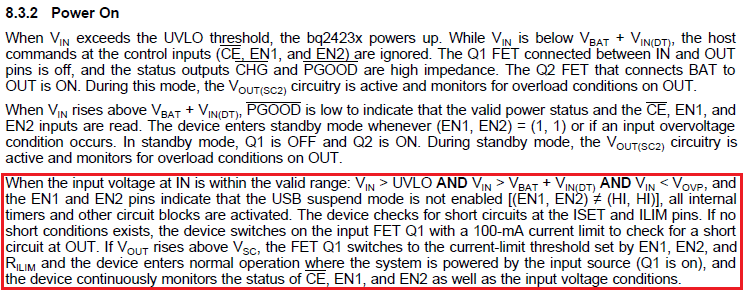

If Vin returns to the valid range then, does bq24230 do the following red sequence?

Best Regards,
Yaita

0 Wenjia Liu over 8 years ago in reply to K.Yaita

TI__Expert 7730 points

Yaita-san,

Yes, once the VIN is back to normal, the IC will consider it as a new power cycle and will conduct the start up routine checks.

Thanks,

Wenjia

0 K.Yaita over 8 years ago in reply to Wenjia Liu

Guru 29690 points

Wenjia-san,

Thank you for your continuous support.
I understood.

Best Regards,
Yaita
