Hi Ti community,

I am using the BQ20z655-R1 with an LCD 5 segment bargraph display - No problems with driving the LCD display all OK there.

However I need to switch the CHG and DSG Flash Alarm off. The Tech ref says to set them to -1 to disable.

This does not work. In fact I have tried to set other % values but the register seems to be stuck on 10% as if it needs to be reset or booted up with the new value.

Any ideas guys?

Thanks

Martin

over 8 years ago

0 Swaminathan Ramanathan75031 over 8 years ago

TI__Expert 6575 points

Hi Martin,
I think the part may be SEALED. Please check the OperationStatus(0x54) to see if the [SS] bit is set. If so use the UNSEAL (0x60) command with the appropriate key to unseal the device before changing the CHG and DSG Alarm thresholds.
Regards,
Swami

0 martin gibbs over 8 years ago in reply to Swaminathan Ramanathan75031

Intellectual 520 points

Hi Swami,

It's not that. My units are unsealed and have full access.

Have you tried setting CHG and DSG Flash alarm to -1 (previously set to 10 %) ?
For me it has no effect on the existing fast flashing when charge is <10%

Regards

Martin

0 Swaminathan Ramanathan75031 over 8 years ago in reply to martin gibbs

TI__Expert 6575 points

Hi Martin,

I am not having any problem setting it to -1:

Can you please attach your senc file. I can try with your configuration.

Regards,

Swami

0 Swaminathan Ramanathan75031 over 8 years ago in reply to Swaminathan Ramanathan75031

TI__Expert 6575 points

0 martin gibbs over 8 years ago in reply to Swaminathan Ramanathan75031

Intellectual 520 points

Thanks Swami
Its not the setting of the -1 that's the problem, its the effect it has that's not taking effect.
The 1st segment is still fast flashing.

Regards

Martin

0 martin gibbs over 8 years ago in reply to martin gibbs

Intellectual 520 points

FoxtrotGolden_no_flash.zipHi Swami,

It would help if .senc files were on the Ti list of attachable file extension types.

so have zipped it.

0 Swaminathan Ramanathan75031 over 8 years ago in reply to martin gibbs

TI__Expert 6575 points

Hi Martin,

The DSPLY0 bit is set, so it thinks it is a LCD.

Please try setting DSPLY0 to 0:

Regards,

Swami

0 martin gibbs over 8 years ago in reply to Swaminathan Ramanathan75031

Intellectual 520 points

Dear Swami,

Very disappointed with your response. Please read the first line of my original forum post.
I would appreciate some technical assistance please.

Regards

Martin

0 Swaminathan Ramanathan75031 over 8 years ago in reply to martin gibbs

TI__Expert 6575 points

Hi Martin,
Sorry, I misunderstood the issue.
I am trying to get my hands on board with LCD. In the meanwhile let me check with my LED EVM if it is working when I disable the CHG DSG Alarm.
Swami

0 martin gibbs over 8 years ago in reply to Swaminathan Ramanathan75031

Intellectual 520 points

Thanks Swami,

I have my 5 segment LCD wired to the Ti BQ20z655-R1 Eval board and the result is the same.
Setting CHG and DSG Flash alarm to -1 does not disable the 10% fast flashing feature.
Regards

Martin

0 martin gibbs over 8 years ago in reply to martin gibbs

Intellectual 520 points

Good Morning Swami,
Have you managed to explain this issue or made any progress please.

Regards,
Martin

0 Swaminathan Ramanathan75031 over 8 years ago in reply to martin gibbs

TI__Expert 6575 points

Hi Martin,

Sorry for the really late response.

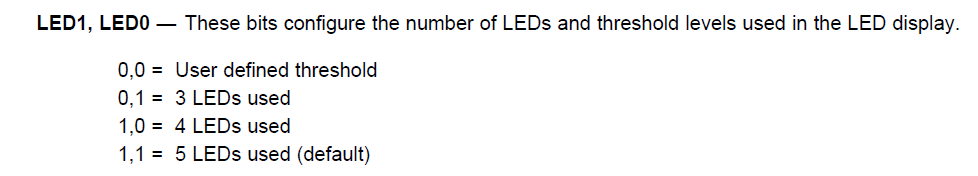

You have to set the [LED1] [LED0] bits in "Operation Cfg A" register to 0,0 to enable the user defined thresholds, otherwise it will use the default built in thresholds for the Chg Alarm and Dsg Alarm Flash.

Please let me know if this solves your issue.

Regards,

Swami

0 martin gibbs over 8 years ago in reply to martin gibbs

Intellectual 520 points

Thanks Problem is solved.
