UCD9222+UCD7242

UCD9222+UCD7242

This question is not answered
guoping Lee
Posted by guoping Lee
on Jul 28 2012 06:50 AM
Intellectual980 points

Hi everyone,

I am using UCD9222+UCD7242 for power supper to TMS320C6678,the power output should be 1v and 0.9v . the configure is just like the UCD9222 configure project in 6678evm.but when I active the power output,the result is wrong.as I know ,the duty cycle should be 1/12.but the result is more than 20%,why?any advise will be nice,thank you .

Report Abuse
  • Reply
You have posted to a forum that requires a moderator to approve posts before they are publicly available.
All Replies
  • Ashok Narayanan
    Posted by Ashok Narayanan
    on Aug 21 2012 17:57 PM
    Prodigy220 points

    Hello Guoping Lee,

    Where can i get the configuration file  for the 6678evm

    Thanks

    Ashok

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • guoping Lee
    Posted by guoping Lee
    on Aug 21 2012 21:08 PM
    Intellectual980 points

    Hi Ashok

    you can download the UCD9222 configuration from http://www.advantech.com/Support/TI-EVM/6678le_download3.aspx.

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • Ashok Narayanan
    Posted by Ashok Narayanan
    on Aug 22 2012 09:34 AM
    Prodigy220 points

    Thank you Lee, by the way did you get the UCD9222 issues solvedÉ

    Ashok

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • guoping Lee
    Posted by guoping Lee
    on Aug 22 2012 20:12 PM
    Intellectual980 points

    not yet .Do you have any idea?

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
  • Ashok Narayanan
    Posted by Ashok Narayanan
    on Aug 23 2012 10:13 AM
    Prodigy220 points

    Hi Lee,

    I am just going to use these ICs on my board which is still in design phase. So i donot have any results now.

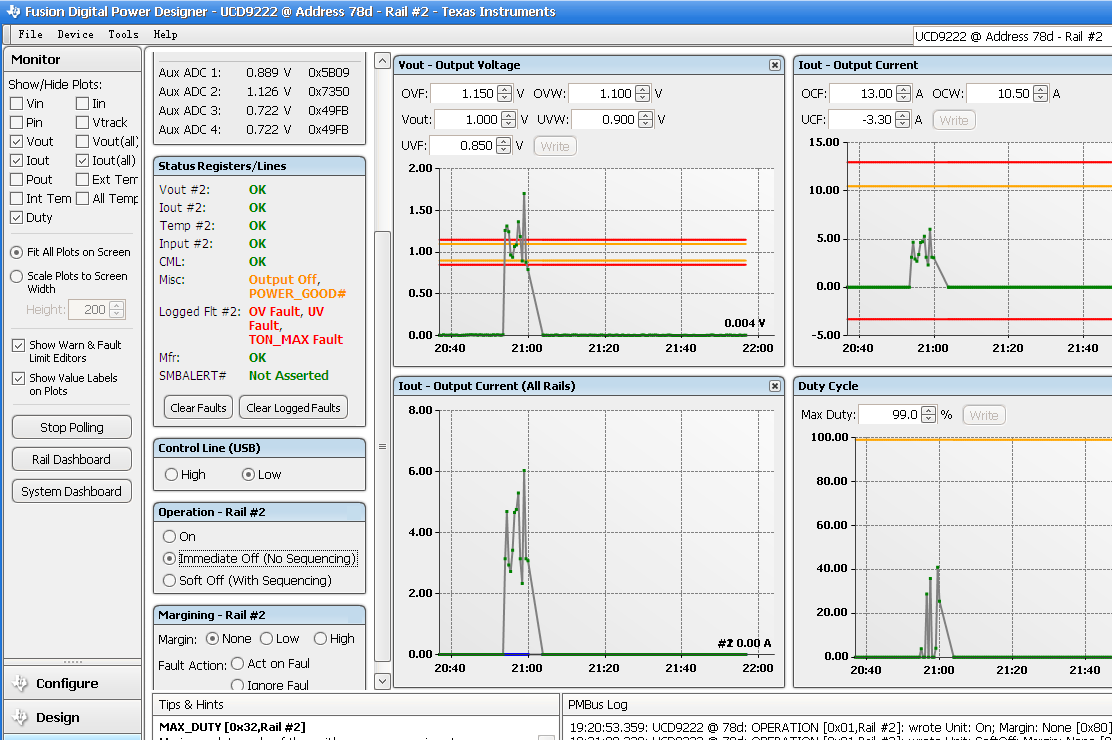

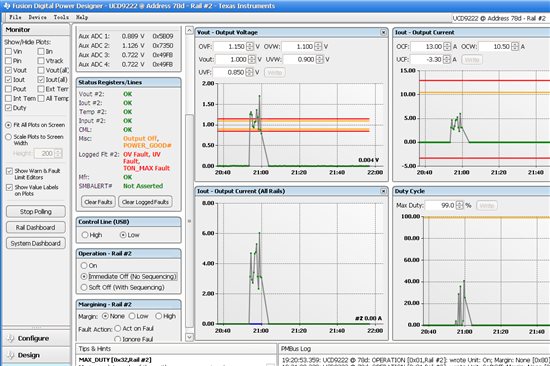

    Any way from the graphs, not only the duty cycle is strange, even the output voltage is swinging until 2V. Does these graphs depict correctly what you see on your board when you probe it (output voltage and duty cycle)?

    Thanks

    Ashok

    Report Abuse
    • Reply
    You have posted to a forum that requires a moderator to approve posts before they are publicly available.
