WEBENCH® Tools/TPS62147: No model or example for TINA-TI?

Elder Costa17

Part Number: TPS62147
Other Parts Discussed in Thread: TPS62136, , TINA-TI

Tool/software: WEBENCH® Design Tools

I would like to simulate a converter with this item but could not find an option to export from Webench or an example in the part page.

over 5 years ago

0 Praveen Badiger over 5 years ago

TI__Expert 8365 points

Hi Elder,

Currently, TINA model is not available for this device. Alternatively, you can simulate the Pspice model in Pspice tool. Please find the same on below link.
www.ti.com/.../getliterature.tsp

Thanks & Regards,
Praveen B

0 Elder Costa17 over 5 years ago in reply to Praveen Badiger

Expert 2825 points

PSpice is not an option. And the model is encrypted so I cannot use other tools. I will to to TPS62136 instead.

0 Elder Costa17 over 5 years ago in reply to Praveen Badiger

Expert 2825 points

PSpice is not an option. And the model is encrypted so I cannot use other tools.

0 Praveen Badiger over 5 years ago in reply to Elder Costa17

TI__Expert 8365 points

Hi Elder,

The IC model is encrypted. However, you can change the external circuit as per your requirement and simulate the same.

Thanks & Regards,
Praveen B

0 Elder Costa17 over 5 years ago in reply to Praveen Badiger

Expert 2825 points

Hello, Praveen.

I use LTSpice and it does not support the encrypted library (I tried).

Thanks anyway.

Elder.

0 Praveen Badiger over 5 years ago in reply to Elder Costa17

TI__Expert 8365 points

Hi Elder,

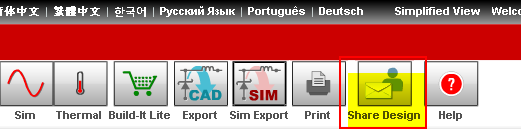

The option to export WEBENCH design into TINA-TI for TPS62147 will be enabled by next week. We will notify you once this option is enabled for this device. Could please share the design using 'Share Design' option as shown below.

Thanks & Regards,
Praveen B

0 Elder Costa17 over 5 years ago in reply to Praveen Badiger

Expert 2825 points

Hello, Praveen,

This is good news.

Here is the link you requested:
webench.ti.com/.../SDP.cgi

BR

0 Praveen Badiger over 5 years ago in reply to Elder Costa17

TI__Expert 8365 points

Hi Elder,

Please find the TINA-TI encrypted model for the above conditions.

webench_design_4756836_6031.zip

Thanks & Regards,

Praveen B

0 Elder Costa17 over 5 years ago in reply to Praveen Badiger

Expert 2825 points

Praveen, I will look into it. Thank you very much.
