TPS65218: TPS65218 don't have any output with good input

Xiaowei Bai1

Part Number: TPS65218

Hello Team,

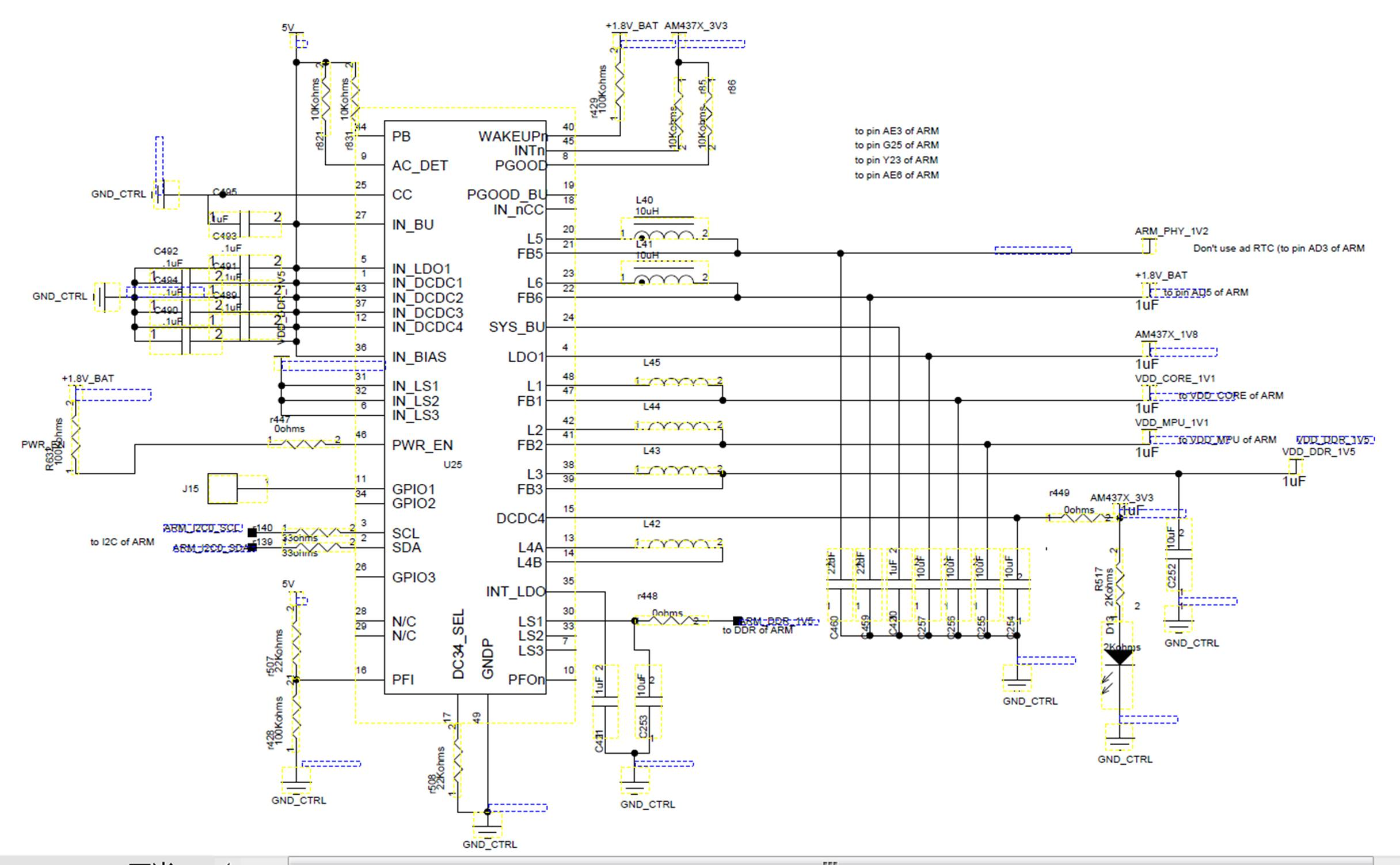

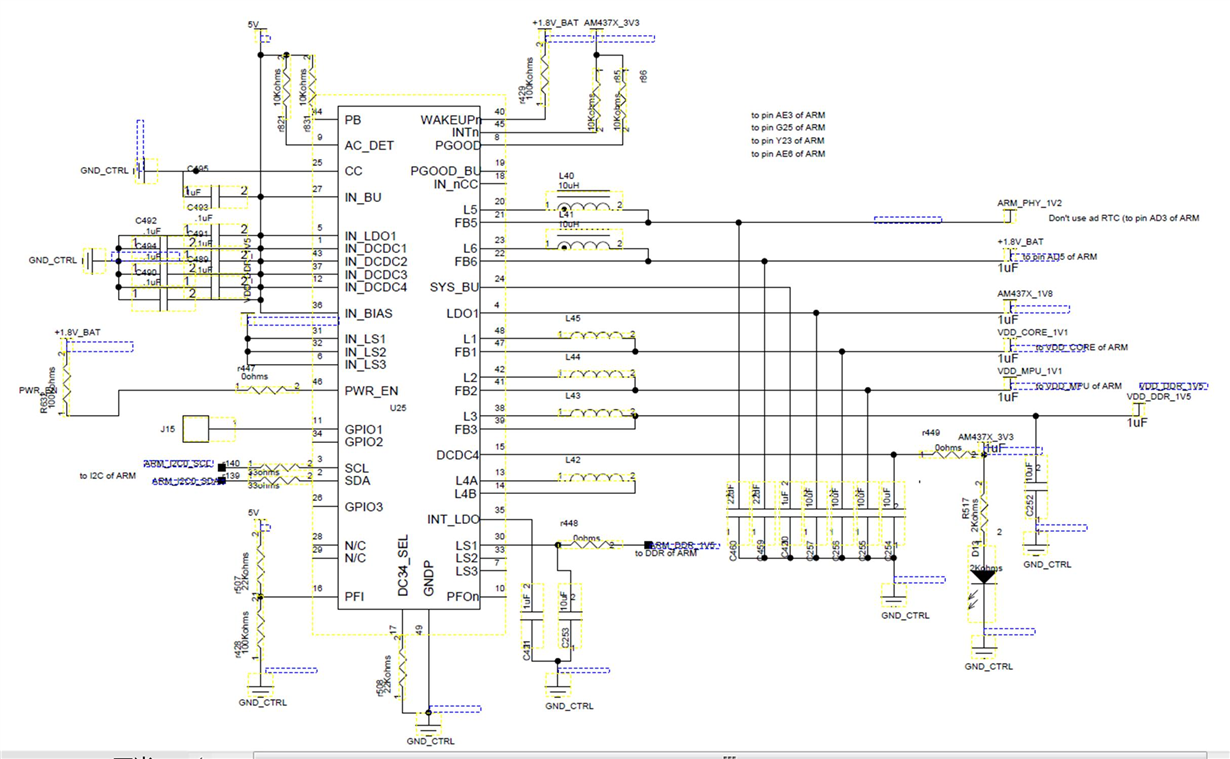

my customer used the TPS65218 as power for AM437X, the schematic as below, so far input is no problem and INT_OUT is normal, but other power rails are all fail. and no output except DC5/6 output wave as below, can you help to comment what is the possible root cause for this? thanks

over 6 years ago

0 Nastasha over 6 years ago

TI__Genius 10000 points

Hi,

This post has been assigned to the applications engineer responsible for this device. They will get back to you shortly.

Thanks,
Nastasha

0 Brian Berner over 6 years ago

TI__Mastermind 30260 points

What is the voltage on PWR_EN pin?

VIH = 1.3V on this pin, and your schematic shows it pulled up to 1.8V through a 100 or 100k resistor (cannot read).

Maybe the +1.8_VBAT rail is not actually 1.8V or something else is going on, but my guess is PWR_EN pin is low (<1.3V)

0 user5224871 over 6 years ago in reply to Brian Berner

Prodigy 20 points

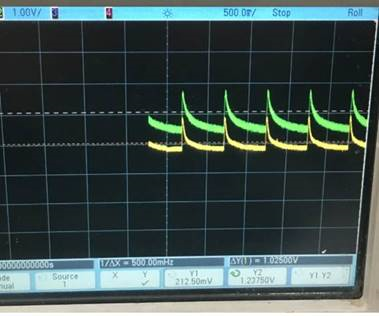

we have already tied the PWR_EN to the extra +3.3V , but the DCDC5 and DCDC6 are still the on-off wave like the picture .
From the TPS65218 datasheet , it seems the PWR_EN is not cared in the first 20s , DcDc5 and DCDC6 should be always on when the system power on .

my is email is "Jiang.Liping.Jessica@vertivco.com" . this issue confuse us quite a lot. thanks for all your support.

0 Brian Berner over 6 years ago in reply to user5224871

TI__Mastermind 30260 points

Jessica,

Please confirm that this question is resolved and was related to a PCB issue (short identified on board).

Thanks,
Brian
