TPS2052B / Exposed Thermal Pad Dimensions

K.Yaita

Other Parts Discussed in Thread: TPS2052B

Hi Team,

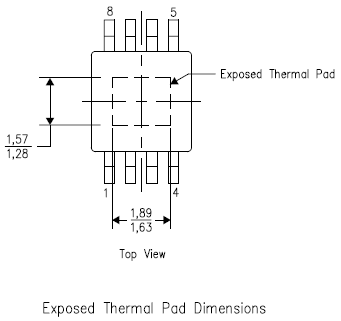

There is 2 patterns for "Exposed Thermal Pad Dimensions" for DGN package in TPS2052B datasheet.
http://www.ti.com/lit/ds/slvs514l/slvs514l.pdf
Page.41 shows the following.

On the other hand, page.43 shows the following.

Which is the correct dimensions?

Best Regards,
Yaita / Japan disty

over 8 years ago

0 Eric Wright over 8 years ago

TI__Mastermind 42795 points

Hello Yaita-san,

I am checking with our internal folks about this issue. I did notice that the thermal pad dimensions on page 41 match the land pattern dimensions on page 42 so I suspect the drawing on page 41 is the correct one. Either way, I will try to confirm soon.

0 K.Yaita over 8 years ago in reply to Eric Wright

Guru 29690 points

Hi Eric-san,

Thank you for your support.
I am looking forward to your reply.

Best Regards,
Yaita

0 K.Yaita over 8 years ago in reply to K.Yaita

Guru 29690 points

Is there any update?

Best Regards,
Yaita

0 Eric Wright over 8 years ago in reply to K.Yaita

TI__Mastermind 42795 points

Page 41 is the correct drawing.

0 K.Yaita over 8 years ago in reply to Eric Wright

Guru 29690 points

Eric-san,

I appreciate for your support.

Best Regards,
Yaita
